Remove And Install

  1. Open LH front door
  2. Lower LH and RH front windows
  3. Open RH front door

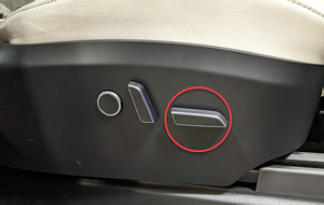

  4. Move RH front seat backward
    G15408678Courtesy of TESLA, INC.

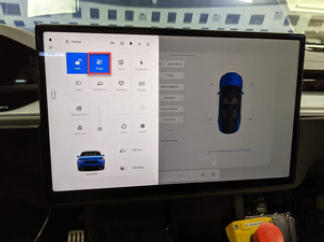

  5. Open hood
    NOTE: Via center display > Controls > Frunk Open
    G15408679Courtesy of TESLA, INC.

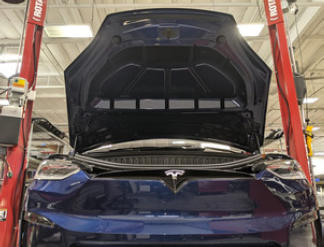

    G15408680Courtesy of TESLA, INC.

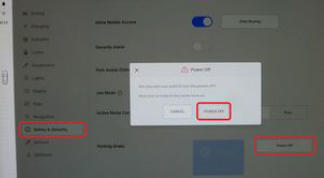

  6. Power off vehicle via center display
    NOTE: Controls > Safety & Security > Power Off
    G15408681Courtesy of TESLA, INC.

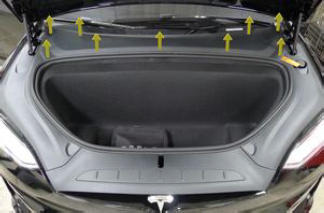

  7. Remove rear underhood apron
    NOTE: 11x clips, 2x datums
    G15408682Courtesy of TESLA, INC.

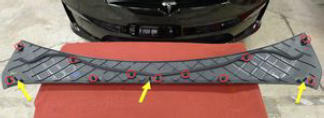

    G15408683Courtesy of TESLA, INC.

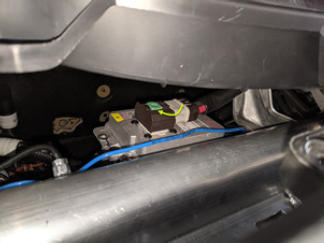

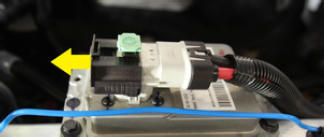

  8. Disconnect LV battery connector and First Responder Loop
    NOTE: 2x connectors, Lift up and release green locking tab, Pull black connector lock outwards to release connection, Release red lock tab on FRL
    G15408684Courtesy of TESLA, INC.
    G15408685Courtesy of TESLA, INC.

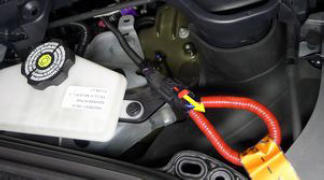

    G15408686Courtesy of TESLA, INC.

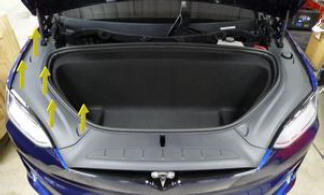

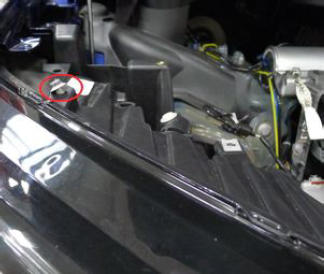

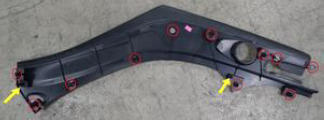

  9. Remove RH underhood apron
    NOTE: 11x clips, 2x datums, Remove brush clip at hinge cover first, Take note of clip at headlamp
    G15408687Courtesy of TESLA, INC.
    G15408688Courtesy of TESLA, INC.
    G15408689Courtesy of TESLA, INC.
    G15408690Courtesy of TESLA, INC.

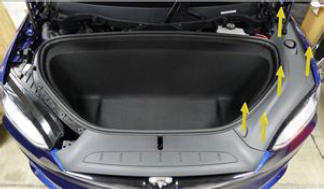

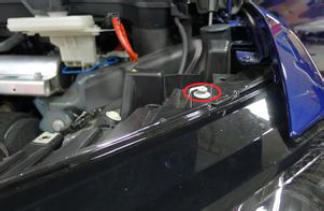

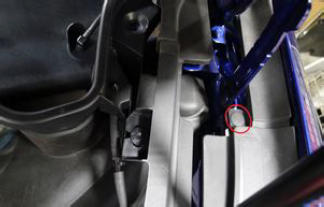

  10. Remove LH underhood apron
    NOTE: 11x clips, 2x datums, Remove brush clip at hinge cover first, Take note of clip at headlamp
    G15408691Courtesy of TESLA, INC.
    G15408692Courtesy of TESLA, INC.
    G15408693Courtesy of TESLA, INC.
    G15408694Courtesy of TESLA, INC.

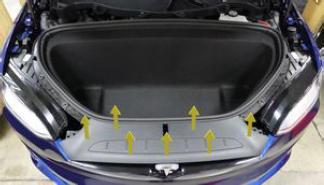

  11. Remove front underhood apron
    NOTE: 12x clips, 3 datums
    G15408695Courtesy of TESLA, INC.
    G15408696Courtesy of TESLA, INC.
  12. Remove frunk access panel
    NOTE: 3x clips, 3x hooks, 1x connector
    G15408697Courtesy of TESLA, INC.
    G15408698Courtesy of TESLA, INC.

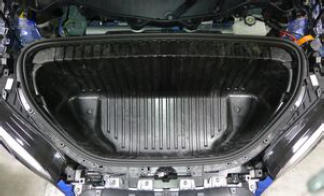

  13. Remove frunk carpet
    G15408699Courtesy of TESLA, INC.
    G15408700Courtesy of TESLA, INC.

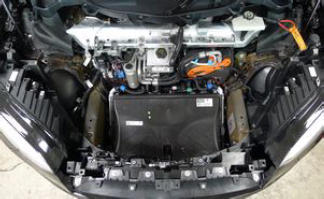

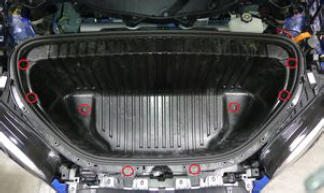

  14. Remove frunk assembly
    NOTE: 8x bolts, 10 mm, 5 N.m
    G15408701Courtesy of TESLA, INC.
    G15408702Courtesy of TESLA, INC.

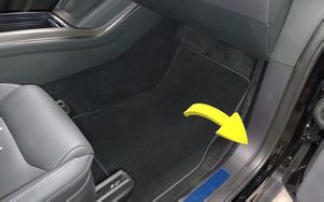

  15. Remove RH front floor mat
    G15408703Courtesy of TESLA, INC.

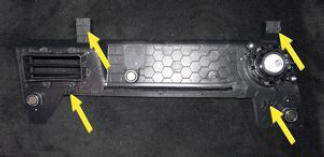

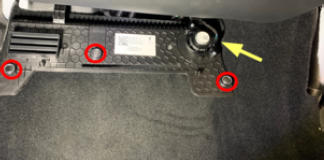

  16. Remove RH footwell cover
    NOTE: 3x magnets, 1x connector, 4x datums
    G15408704Courtesy of TESLA, INC.
    G15408705Courtesy of TESLA, INC.

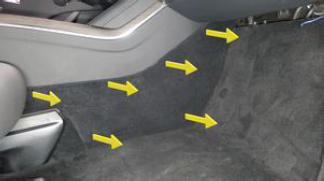

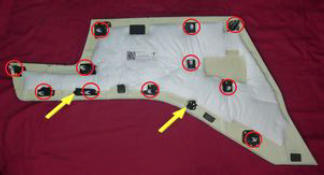

  17. Remove RH console side carpet
    NOTE: 11x clips, 2x datums
    G15408706Courtesy of TESLA, INC.
    G15408707Courtesy of TESLA, INC.

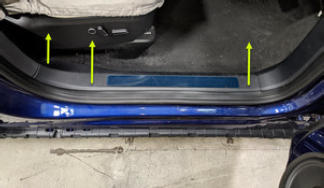

  18. Remove RH front sill plate
    NOTE: 5x clips
    G15408708Courtesy of TESLA, INC.

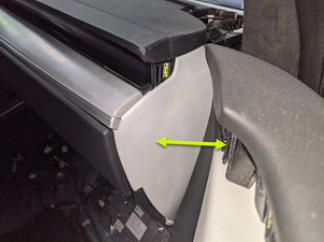

  19. Remove RH IP end cap
    NOTE: 3x clips
    G15408709Courtesy of TESLA, INC.
  20. Remove RH mid A-pillar trim
    NOTE: 1x clip, 1x locating clip

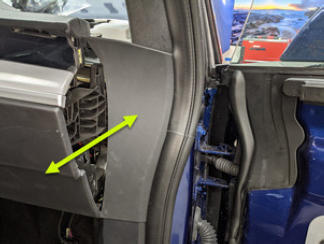

    G15408710Courtesy of TESLA, INC.

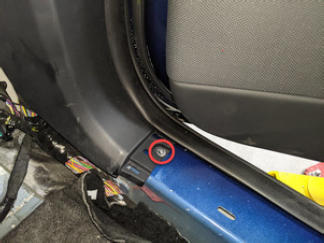

  21. Remove RH lower A-pillar trim
    NOTE: 1x bolt, T25, 5 N.m, 2x clips
    G15408711Courtesy of TESLA, INC.
  22. Fold RH front cabin carpet aside for access
    G15408712Courtesy of TESLA, INC.
  23. Release harness from RH footrest panel
    NOTE: 1x clip
    G15408713Courtesy of TESLA, INC.

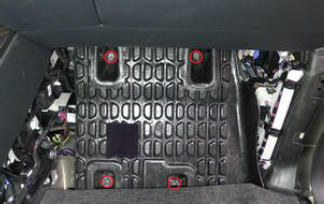

  24. Release RH footrest panel
    NOTE: 2x bolts, 10 mm, 5 N.m, 2x nut, 10 mm, 5 N.m
    G15408714Courtesy of TESLA, INC.

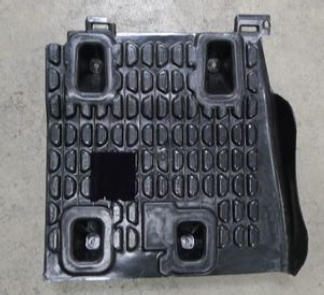

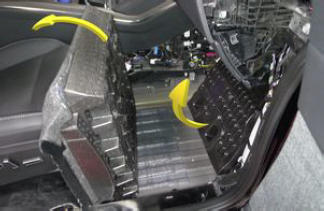

  25. Remove RH footrest panel
    NOTE: Fold RH primary support carpet up, Rotate RH footrest panel out of vehicle
    G15408715Courtesy of TESLA, INC.
    G15408716Courtesy of TESLA, INC.

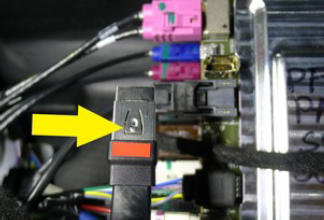

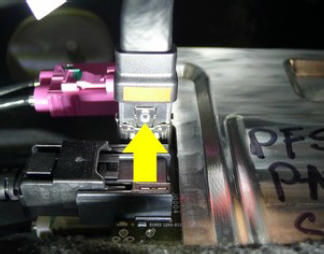

  26. Release connector to gaming MCU
    NOTE: 1x connector, Depress lock on underside of connector before pulling out of socket, Possible damage to PCBA may occur if removed without releasing lock first
    G15408717Courtesy of TESLA, INC.
    G15408718Courtesy of TESLA, INC.
    G15408719Courtesy of TESLA, INC.

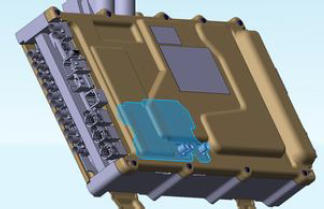

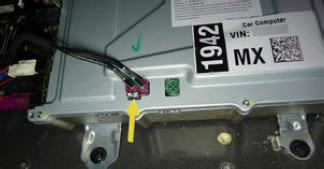

  27. Release connector to connectivity module
    NOTE: 1x connector, Move release lock rearward before removal
    G15408720Courtesy of TESLA, INC.
    G15408721Courtesy of TESLA, INC.

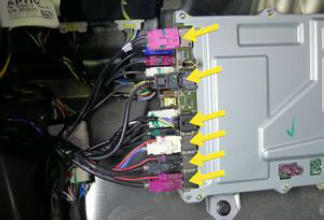

  28. Release connections at LH side of entertainment motherboard
    NOTE: 6x connectors, Release locks on connectors before removal
    G15408722Courtesy of TESLA, INC.
    G15408723Courtesy of TESLA, INC.
  29. Release connections at LH side of AP motherboard
    NOTE: 7x connectors, Release locks on connectors before removal
    G15408724Courtesy of TESLA, INC.
    G15408725Courtesy of TESLA, INC.

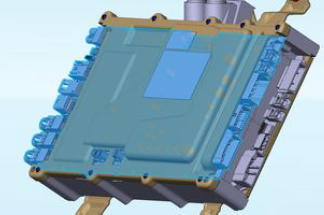

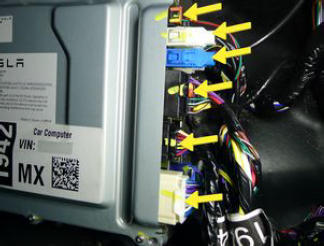

  30. Release connectors at RH side of entertainment motherboard
    NOTE: 6x connectors, Release locks on connectors before removal
    G15408726Courtesy of TESLA, INC.
    G15408727Courtesy of TESLA, INC.

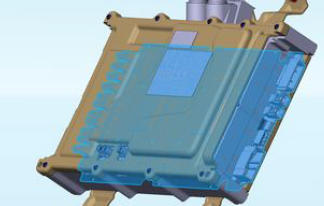

  31. Release connectors at RH side of AP motherboard
    NOTE: 3x connectors, Release locks on connectors before removal
    G15408728Courtesy of TESLA, INC.
    G15408729Courtesy of TESLA, INC.

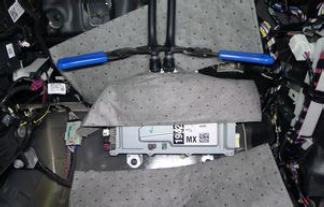

  32. Install coolant hose clamps to coldplate hoses
    NOTE: 2x hoses, Place coolant absorbent mats or rags around the car computer

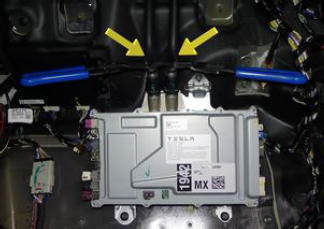

    G15408730Courtesy of TESLA, INC.
    G15408731Courtesy of TESLA, INC.

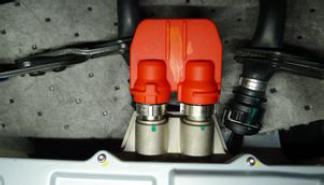

  33. Release coolant hoses from car computer coldplate assembly
    NOTE: 2x spring locks, Install coolant plugs at both hoses and car computer

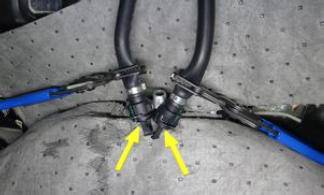

    G15408732Courtesy of TESLA, INC.
    G15408733Courtesy of TESLA, INC.

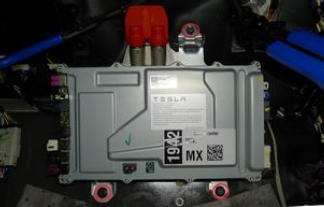

  34. Remove car computer from vehicle
    NOTE: 2x bolts, 10 mm, 7 N.m, 1x nut, 10 mm, 8 N.m, Remove any residual coolant from vehicle
    G15408734Courtesy of TESLA, INC.
    G15408735Courtesy of TESLA, INC.

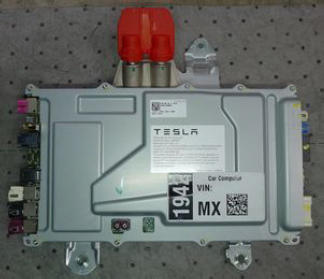

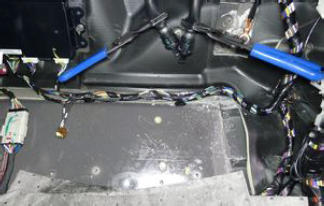

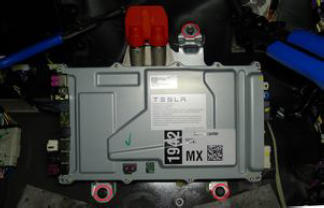

  35. Install car computer to vehicle
    NOTE: 2x bolts, 10 mm, 7 N.m, 1x nut, 10 mm, 8 N.m
    G15408736Courtesy of TESLA, INC.
    G15408737Courtesy of TESLA, INC.
    G15408738Courtesy of TESLA, INC.

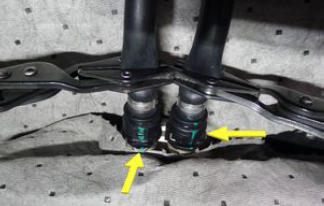

  36. Secure coolant hoses to car computer coldplate assembly
    NOTE: 2x spring locks, Place coolant absorbent mats or rags around the car computer, Remove coolant plugs, Ensure spring locks engage and perform pull-push-pull test on each hose coupling
    G15408739Courtesy of TESLA, INC.

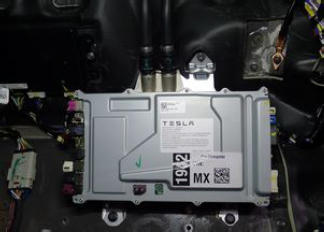

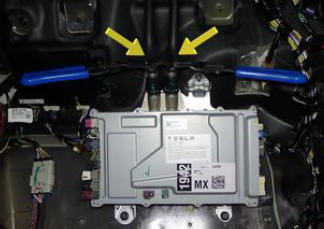

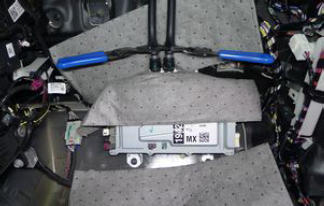

  37. Remove coolant hose clamps
    NOTE: 2x hoses, Remove absorbent material, Clean residual fluid, Inspect for leaks
    G15408740Courtesy of TESLA, INC.
    G15408741Courtesy of TESLA, INC.
    G15408742Courtesy of TESLA, INC.

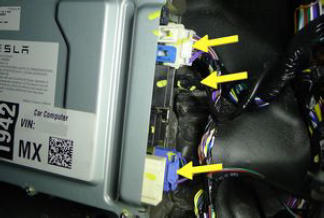

  38. Install connectors at RH side of AP motherboard
    NOTE: 3x connectors
    G15408743Courtesy of TESLA, INC.
    G15408744Courtesy of TESLA, INC.

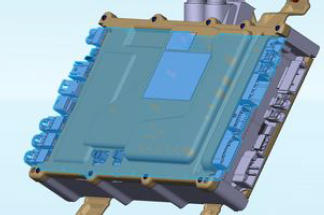

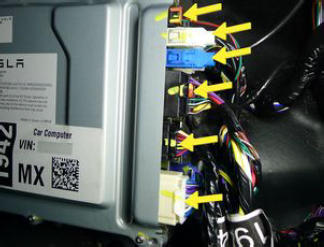

  39. Install connectors at RH side of entertainment motherboard
    NOTE: 6x connectors
    G15408745Courtesy of TESLA, INC.
    G15408746Courtesy of TESLA, INC.

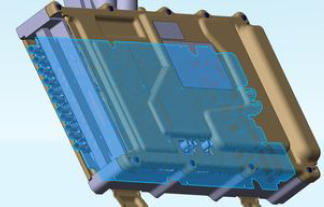

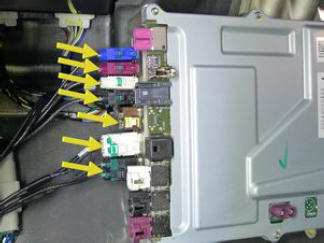

  40. Install connections at LH side of AP motherboard
    NOTE: 7x connectors
    G15408747Courtesy of TESLA, INC.
    G15408748Courtesy of TESLA, INC.

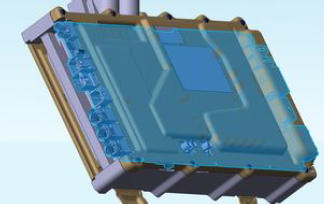

  41. Install connections at LH side of entertainment motherboard
    NOTE: 6x connectors
    G15408749Courtesy of TESLA, INC.
    G15408750Courtesy of TESLA, INC.
  42. Install connector to connectivity module
    NOTE: 1x connector, Slide lock underneath connector
    G15408751Courtesy of TESLA, INC.
    G15408752Courtesy of TESLA, INC.

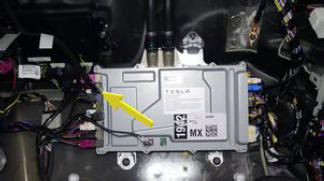

  43. Install connector to gaming MCU
    NOTE: 1x connector, Confirm connector locked into socket
    G15408753Courtesy of TESLA, INC.
    G15408754Courtesy of TESLA, INC.

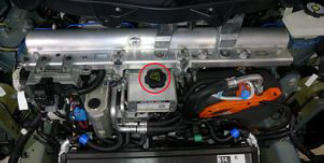

  44. Remove coolant bottle cap
    G15408755Courtesy of TESLA, INC.

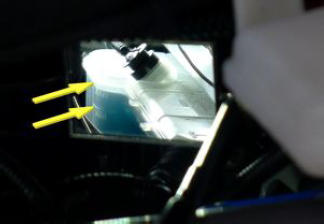

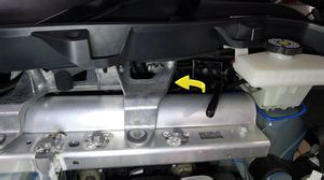

  45. Inspect coolant level and top off as necessary
    NOTE: Ensure that the fluid level is at the Max line, Top off fluid as required
    G15408756Courtesy of TESLA, INC.
    G15408757Courtesy of TESLA, INC.

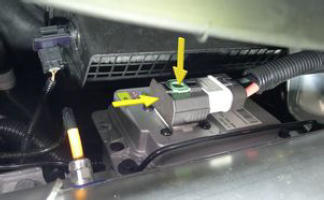

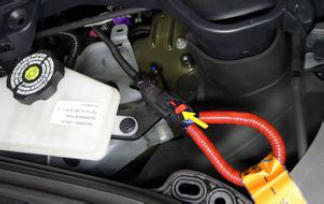

  46. Connect the First Responder Loop and LV battery connector.
    NOTE: 2x connectors, Secure FRL first, Seat LV battery connection and push black connector lock inwards to secure, Engage upper locking tab when fully seated
    G15408758Courtesy of TESLA, INC.
    G15408759Courtesy of TESLA, INC.
  47. Install RH footrest panel
    NOTE: Rotate RH footrest panel into vehicle, Fold RH primary support carpet down
    G15408760Courtesy of TESLA, INC.

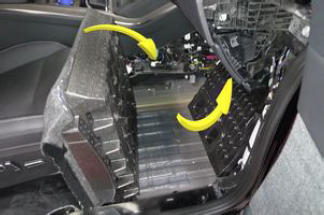

    G15408761Courtesy of TESLA, INC.
  48. Secure RH footrest panel
    NOTE: 2x bolts, 10 mm, 5 N.m, 2x nut, 10 mm, 5 N.m

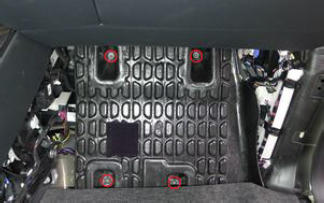

    G15408762Courtesy of TESLA, INC.

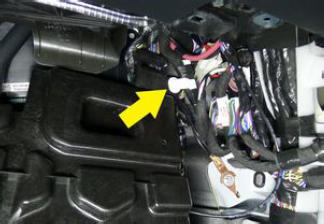

  49. Secure harness to RH footrest panel
    NOTE: 1x clip
    G15408763Courtesy of TESLA, INC.

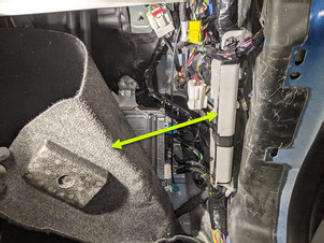

  50. Fold RH main carpet back into place
    G15408764Courtesy of TESLA, INC.

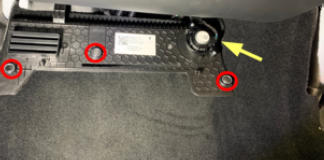

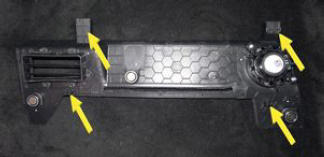

  51. Install RH footwell cover
    NOTE: 3x magnets, 4x datums, 1x connector
    G15408765Courtesy of TESLA, INC.
    G15408766Courtesy of TESLA, INC.
  52. Install RH lower A-pillar trim
    NOTE: 1x bolt, T25, 5 N.m, 2x clips
    G15408767Courtesy of TESLA, INC.

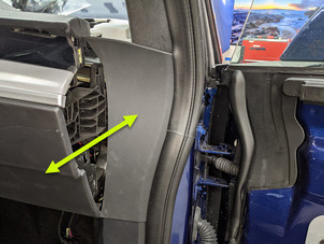

  53. Install RH mid A-pillar trim
    NOTE: 1x clip, 1x locating clip, Verify weather seal is seated properly
    G15408768Courtesy of TESLA, INC.
  54. Install RH IP end cap
    NOTE: 3x clips
    G15408769Courtesy of TESLA, INC.

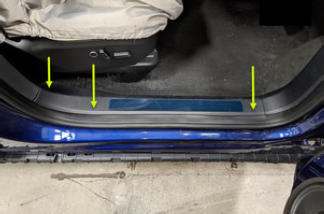

  55. Install RH front sill plate
    NOTE: 5x clips
    G15408770Courtesy of TESLA, INC.

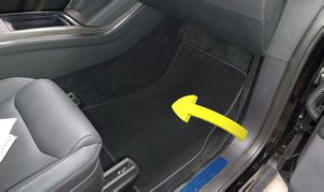

  56. Install RH front floor mat
    G15408771Courtesy of TESLA, INC.

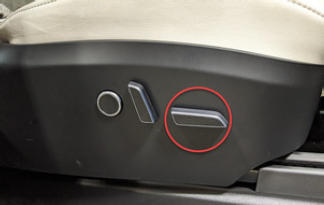

  57. Move RH front seat to original position
    G15408772Courtesy of TESLA, INC.

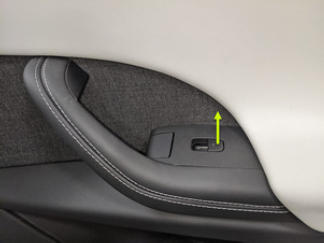

  58. Raise RH front window
    G15408773Courtesy of TESLA, INC.
  59. Close RH front door
  60. Perform a cooling system check and fill. See Cooling System (Partial Refill and Bleed) .

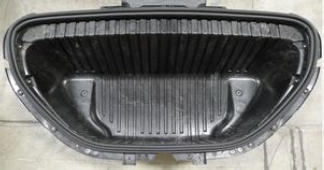

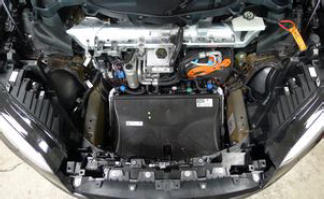

  61. Install frunk assembly
    NOTE: 8x bolts, 10 mm, 5 N.m
    G15408774Courtesy of TESLA, INC.
    G15408775Courtesy of TESLA, INC.
    G15408776Courtesy of TESLA, INC.

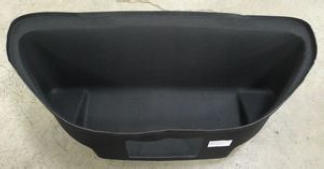

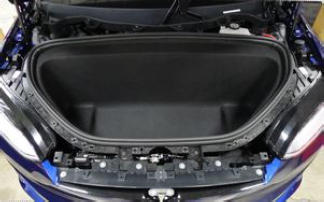

  62. Install frunk carpet
    NOTE: Verify carpet is properly seated under the seal
    G15408777Courtesy of TESLA, INC.
    G15408778Courtesy of TESLA, INC.

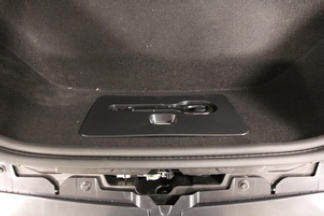

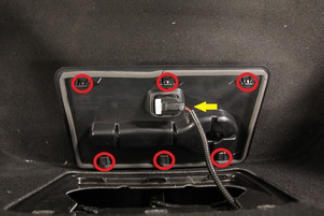

  63. Install frunk access panel
    NOTE: 3x clips, 3x hooks, 1x connector
    G15408779Courtesy of TESLA, INC.
    G15408780Courtesy of TESLA, INC.

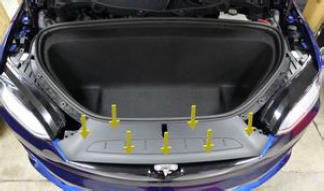

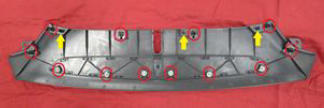

  64. Install front underhood apron
    NOTE: 12x clips, 3x datums
    G15408781Courtesy of TESLA, INC.
    G15408782Courtesy of TESLA, INC.

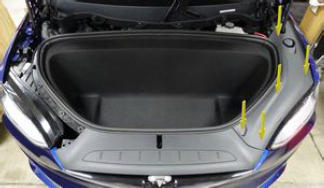

  65. Install LH underhood apron
    NOTE: 11x clips, 2 datums
    G15408783Courtesy of TESLA, INC.
    G15408784Courtesy of TESLA, INC.
    G15408785Courtesy of TESLA, INC.

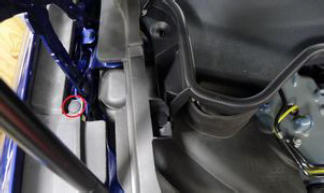

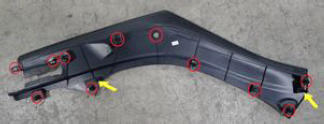

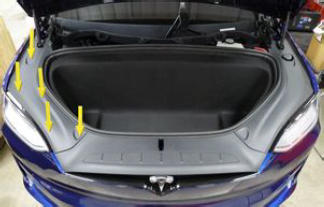

  66. Install RH underhood apron
    NOTE: 11x clips, 2x datums
    G15408786Courtesy of TESLA, INC.
    G15408787Courtesy of TESLA, INC.
    G15408788Courtesy of TESLA, INC.

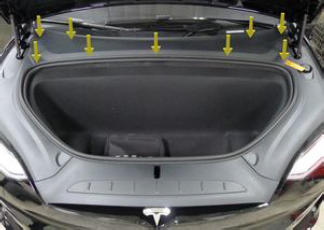

  67. Install rear underhood apron
    NOTE: 11x clips, 2x datums
    G15408789Courtesy of TESLA, INC.
    G15408790Courtesy of TESLA, INC.

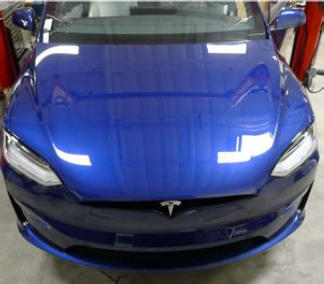

  68. Close hood
    G15408791Courtesy of TESLA, INC.
  69. Calibrate the rear doors.
    NOTE: If the "Calibration Needed" message appears on the vehicle touchscreen, touch and hold Calibrate  to calibrate the rear doors.

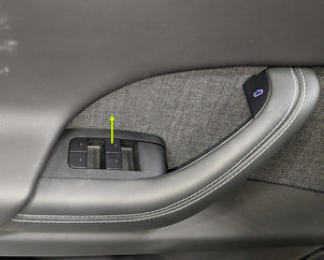

  70. Raise LH front window
    G15408792Courtesy of TESLA, INC.
  71. Close LH front door
