- Connect a laptop with Toolbox 3 to the vehicle. See:Toolbox 3 - Connect And Disconnect .

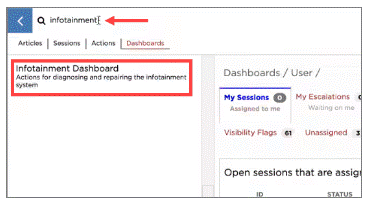

- n Toolbox, click the Dashboards
tab, type "Infotainment" into the search field, and then click on Infotainment Dashboard
.
 Courtesy of TESLA, INC.
|

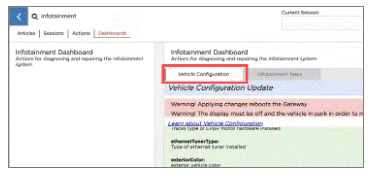

- Under Infotainment Dashboard, click the Vehicle Configuration tab.
NOTE:

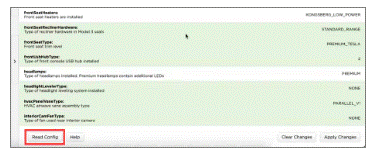

If no configuration parameter values are displayed, click Read Config
.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

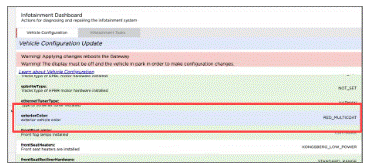

- Scroll down the list to find the parameter and its current value.
NOTE:
Parameters with a green background can be changed.
 Courtesy of TESLA, INC.
|

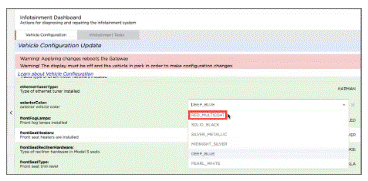

- Click on the current value, and from the drop-down menu that appears, select the new value.
NOTE:

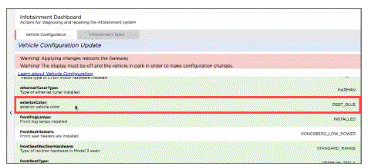

Once the new value is selected, the parameter background becomes blue.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

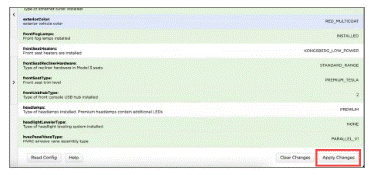

- Click Apply Changes
.
 Courtesy of TESLA, INC.
|

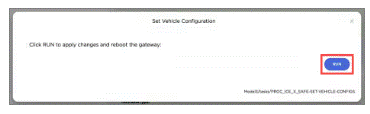

- In the new window that opens, click Run
to apply the changes and reboot the gateway.
 Courtesy of TESLA, INC.
|

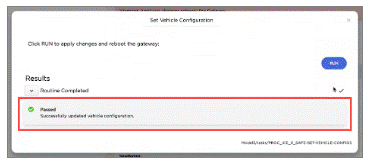

- The progress is shown, and after reboot, the window indicates a successful update to the vehicle configuration
 Courtesy of TESLA, INC.
|
- If another service procedure requested verification or modification of a gateway configuration parameter, return to that procedure now. Otherwise, continue to the next step.
- Disconnect the laptop with Toolbox 3 from the vehicle. See: Toolbox 3 - Connect And Disconnect .
