TPMS - Sensor ID Tool Learn

Last modified: 01/11/2023 08:44:55

Courtesy of TESLA, INC.

NOTE: See Personal Protection to make sure proper PPE is worn when performing the below procedure.

Review the TPMS service tool profile.
Connect a laptop with Toolbox to the vehicle. See TOOLBOX 3 - CONNECT AND DISCONNECT .
In Toolbox, select the Actions tab, and search for "TPMS Sensor Learn".
Select the PROC_TPMS_X_TPMS-SENSOR-LEARN Action.
Use the TPMS service tool to read and record the wheel sensors in the order displayed on the tool's screen.

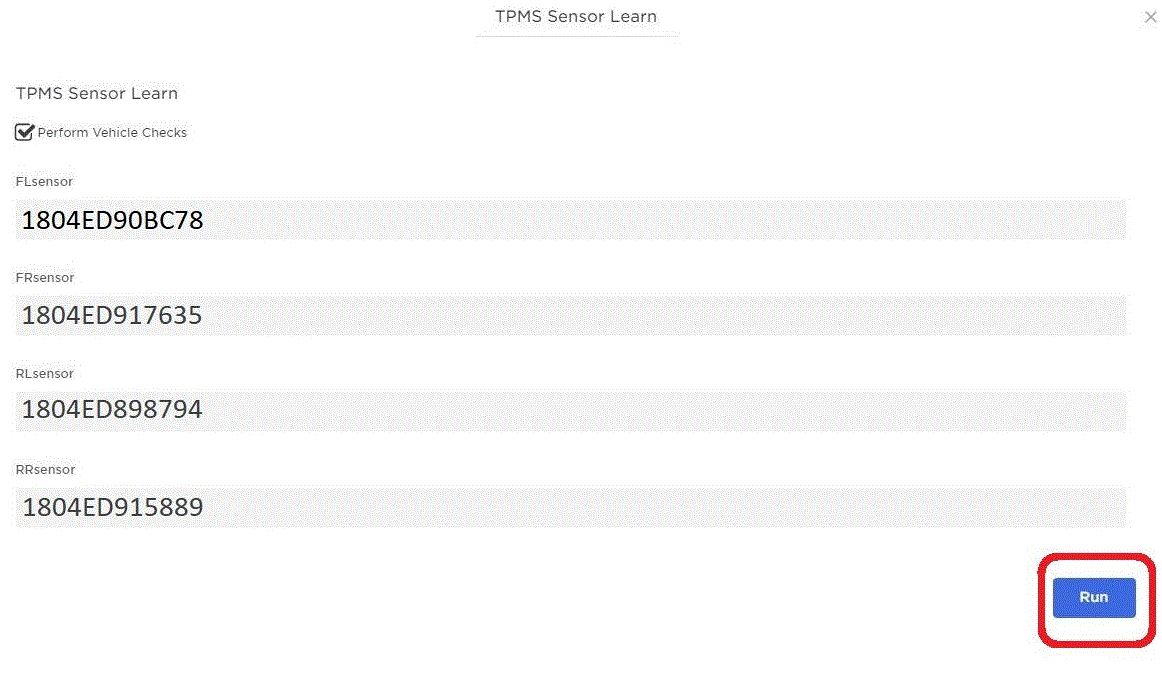

In Toolbox, enter the TPMS sensor ID for each wheel from the TPMS Tool into the TPMS Sensor Learn ID form.

Courtesy of TESLA, INC.
When the Sensor IDs for all 4 wheels have been entered into the Toolbox TPMS Sensor Learn ID form, click Run .
NOTE:
Click the "X" at the top of the window after the routine is complete.
Disconnect the laptop with Toolbox from the vehicle. See TOOLBOX 3 - CONNECT AND DISCONNECT .
