Wheel - Remove And Install: Install
- Install wheel onto the hub.

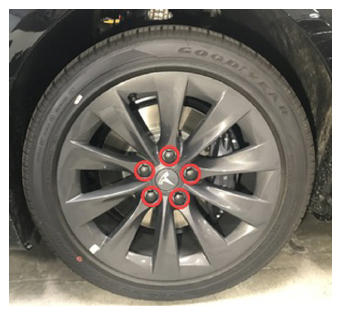

- Hand start the lug nuts (x5) beginning with the bottom lug nut first.

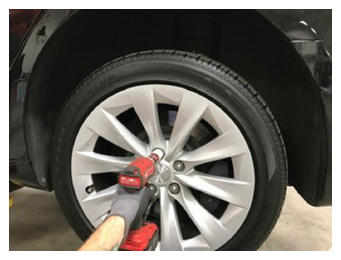

- Use a power tool to tighten the lug nuts (x5) of the wheel to the initial torque in a criss-cross star pattern.
- Lower the vehicle until the tire is touching the floor and the suspension begins to load.

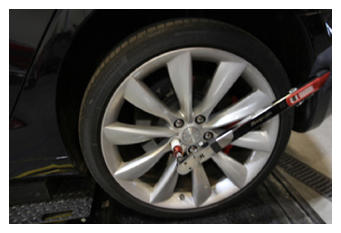

- Torque the lug nuts (x5) of the wheel in a criss-cross star pattern.
175 N.m (129.1 ft-lbs)
CAUTION: If using a floor jack, make sure not to rock the vehicle off of the jack. - Install the lug nut covers (x5) onto the wheel.
- Fully lower the vehicle completely.
- On the vehicle touchscreen, touch Controls > Service > Suspension > Disable Jack Mode to disable Jack Mode.
- Remove the vehicle from the 2 post lift. See Raise Vehicle - 2 Post Lift
.NOTE: If using a floor jack, remove the floor jack out from under the vehicle.
