Seatbelt Intermediate Web Guide - Remove And Replace: Remove
- Remove the LH upper B-pillar trim. See Trim - B-Pillar - Upper - LH (Remove and Replace) .

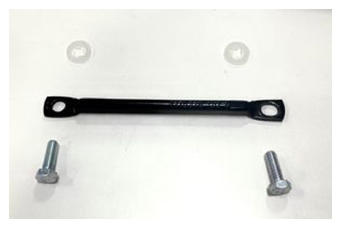

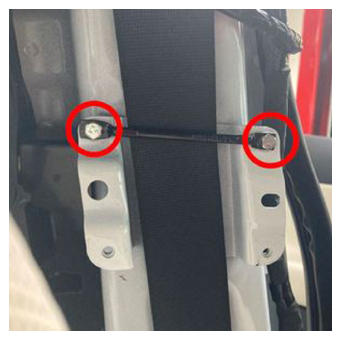

- Remove the bolts (x2) and washers (x2) that attach the seatbelt intermediate web guide to the vehicle, and then remove the guide from the vehicle.
5 N.m (3.7 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 8 mm socket
