Sensor - Crash Accelerometer - Front Bumper - Remove And Replace: Install

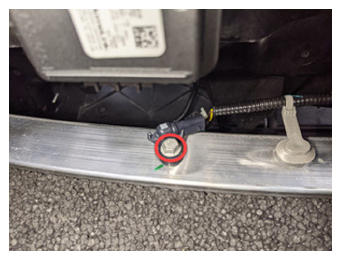

- Position the LH front bumper crash accelerometer sensor into the vehicle, and then install the bolt that attaches the sensor to the vehicle.
10 N.m (7.4 lbs-ft)
Tip: Use of the following tool(s) is recommended:
- 10 mm socket

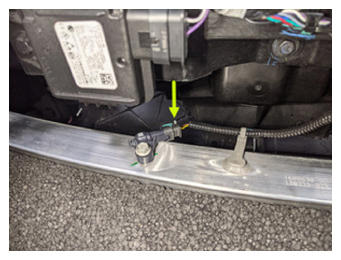

- Connect the LH front bumper crash accelerometer sensor connector, and then engage the connector lock.
- Install the front fascia. See Fascia Assembly - Front (Remove and Replace) .
