- Open the LH front door and lower the LH front window.
- Put the vehicle in Service Mode. See Service Mode (Enable And Disable)
.

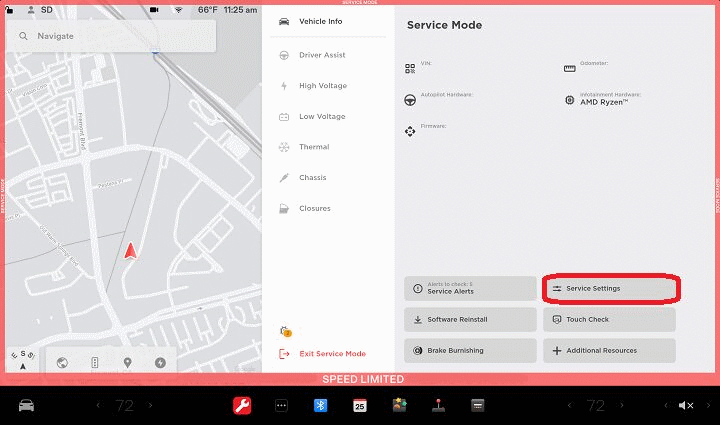

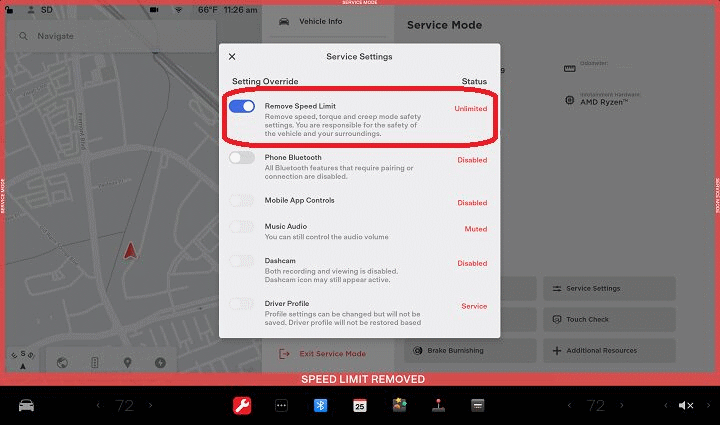

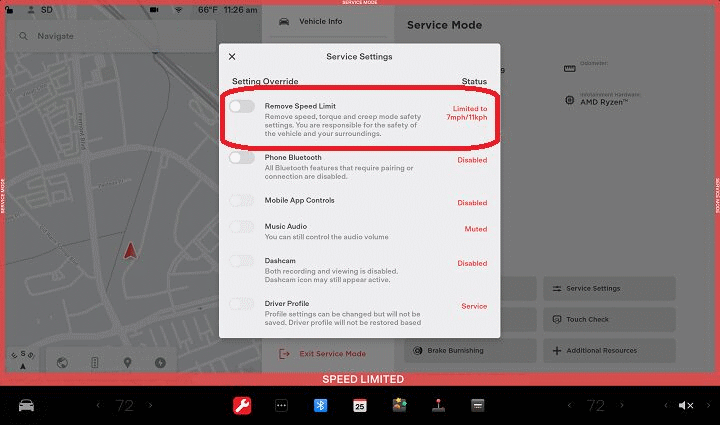

- Disable the "Speed Limit" on the touchscreen: Touch Service > Service Settings > Remove Speed Limit
.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

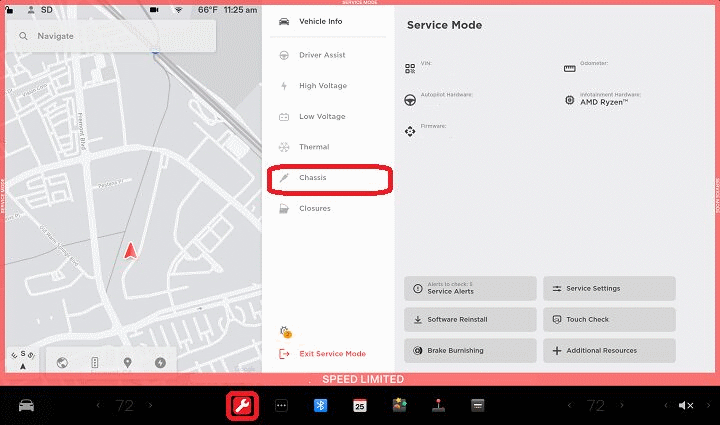

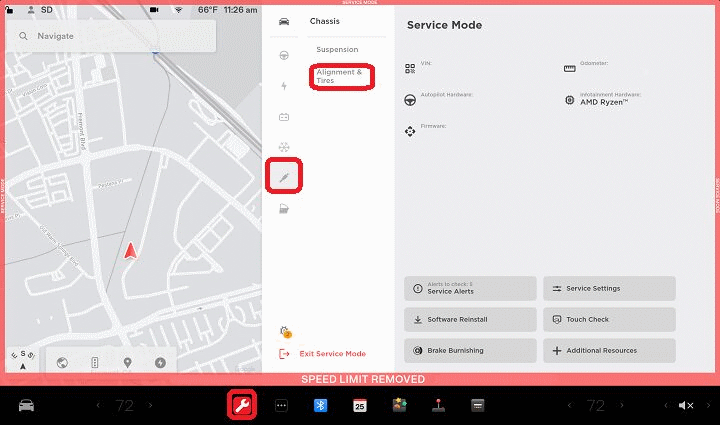

- Open the alignment portal: Touch Service > Chassis > Applied Offset
.
NOTE:
Make sure the drive rails are on.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|

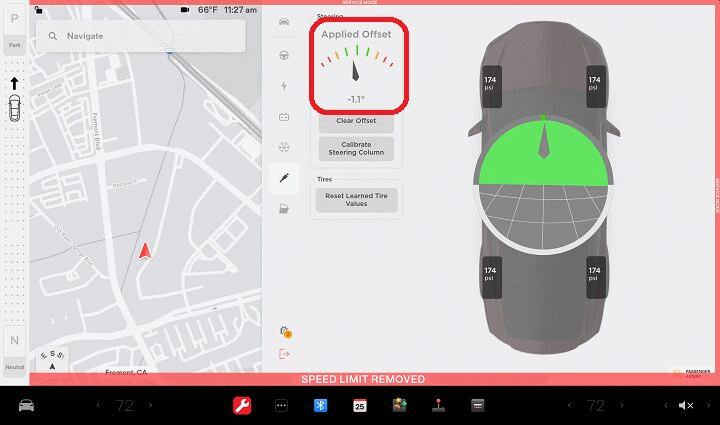

- Record the Applied Offset Value.
 Courtesy of TESLA, INC.
|
- Move the vehicle to a flat area with 500 m of space.
NOTE:
The vehicle will need to exceed 10 mph within 500 m for the test to complete.
 Courtesy of TESLA, INC.
|
- Connect a laptop with Toolbox 3 to the vehicle. See Toolbox 3 (Connect and Disconnect)
.
- In Toolbox, click Actions/Autodiag
, and then search for "TEST-SELF_EPAS_X_STEERING-CENTER-OFFSET-SERVICE".
 Courtesy of TESLA, INC.
|

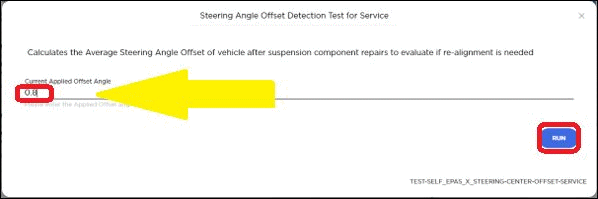

- Click Steering Angle Offset Detection Test for Service
, then enter the "Applied Offset Value" recorded earlier, and then click Run
.
NOTE:
The vehicle will need to be in position before starting the test.
CAUTION:
Turning the steering yoke/wheel over 200 degrees will end the test.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Drive the vehicle straight.
CAUTION:
The vehicle will need to exceed 10 mph within 500 m for the test to complete.
 Courtesy of TESLA, INC.
|

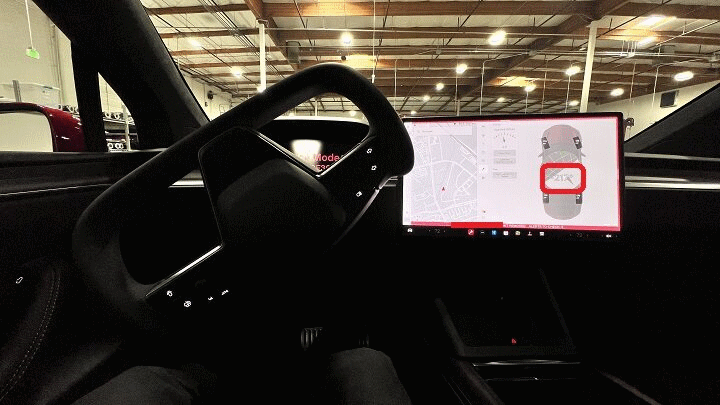

- Stop the vehicle and end the test.
NOTE:

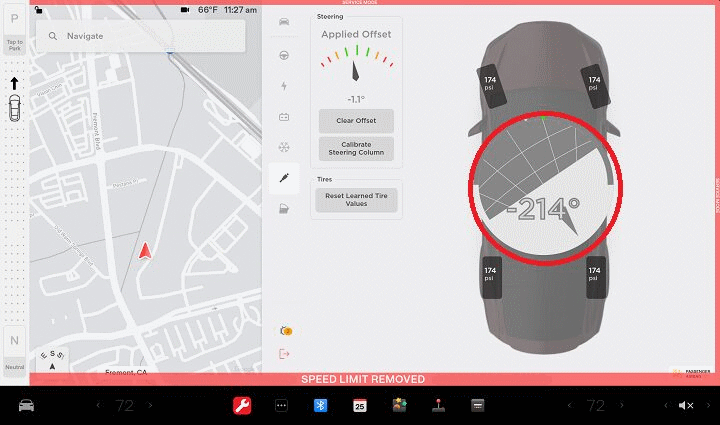

Turn the steering yoke/wheel over 200 degrees to complete the routine.
NOTE:

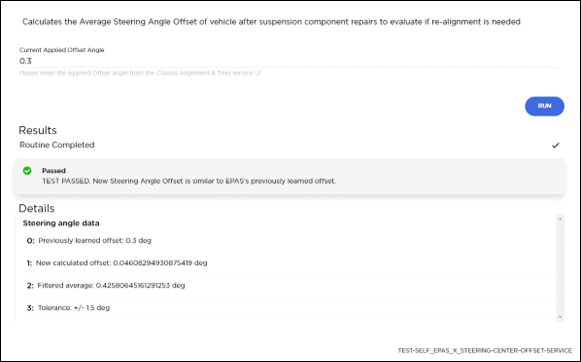

Output message will indicate "pass" or "fail". If test fails, then the vehicle will require four wheel alignment check and adjust. See Four Wheel Alignment Check And Adjust if the test failed.
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
 Courtesy of TESLA, INC.
|
- Disconnect the laptop from the vehicle. See Toolbox 3 (Connect and Disconnect)
.
- Raise the LH front window and close the LH front door.
