Car Computer (HW4) - Remove and Install: Remove

  1. Open the LH front door.
  2. Lower the LH front window.
  3. Open the RH front door.
  4. Lower the RH front window.
  5. Open the hood.
    G00642530Courtesy of TESLA, INC.

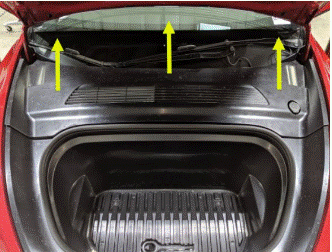

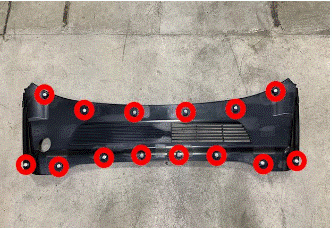

  6. Remove the rear apron.
    G00642531Courtesy of TESLA, INC.
    G00642532Courtesy of TESLA, INC.

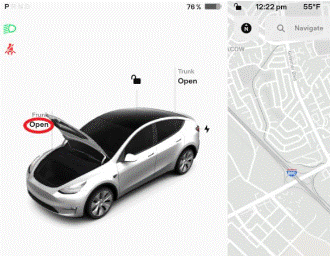

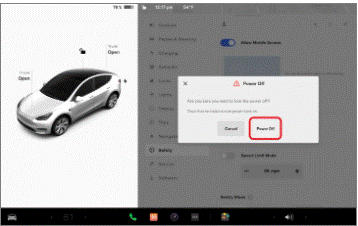

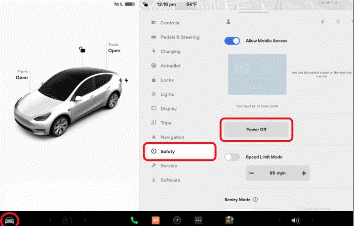

  7. Power off the vehicle using the touchscreen.
    G00642533Courtesy of TESLA, INC.
    G00642534Courtesy of TESLA, INC.

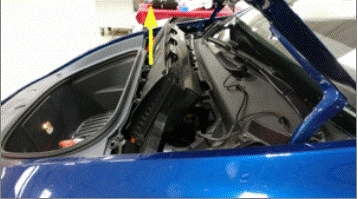

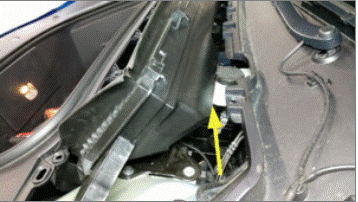

  8. Remove HEPA filter assembly
    NOTE:

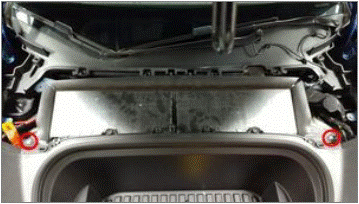

    2x bolts, 10mm, 5 N.m, Pivot rearward edge up and past brake reservoir, Then lift up to clear frunk assembly

    G00642535Courtesy of TESLA, INC.
    G00642536Courtesy of TESLA, INC.
    G00642537Courtesy of TESLA, INC.

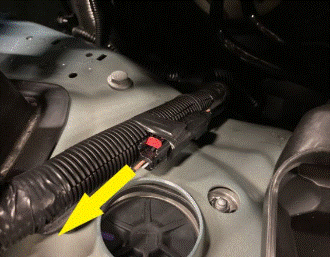

  9. Disconnect the LV battery connector and First Responder Loop.

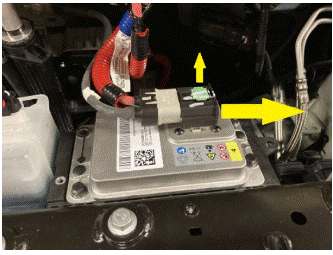

    G00642538Courtesy of TESLA, INC.
    G00642539Courtesy of TESLA, INC.

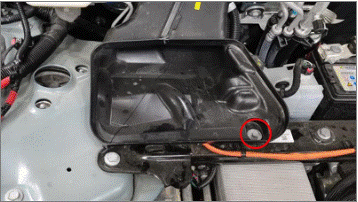

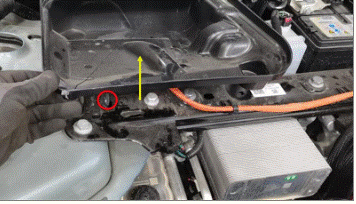

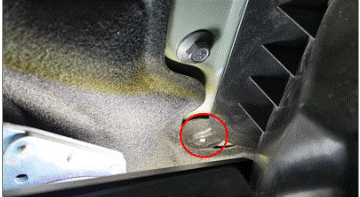

  10. Remove fresh air intake duct
    NOTE:

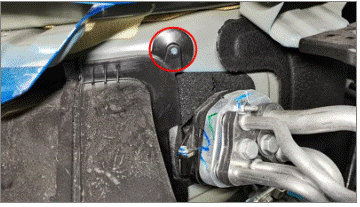

    1x bolt, 10mm, 4 N.m, 2x clips, 1x pin, Remove bolt, Gently pry pin out from thermal beam, then remove from bulkhead studs

    G00642540Courtesy of TESLA, INC.
    G00642541Courtesy of TESLA, INC.

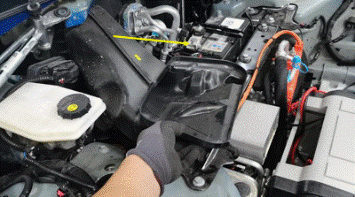

    G00642542Courtesy of TESLA, INC.
    G00642543Courtesy of TESLA, INC.
    G00642544Courtesy of TESLA, INC.

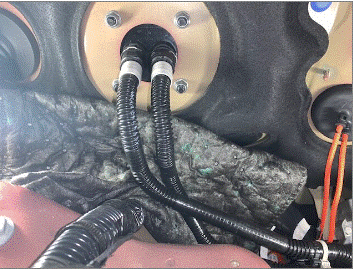

  11. Place absorbent material below car computer coolant hose connection points to collect any spilled coolant
    G00642545Courtesy of TESLA, INC.

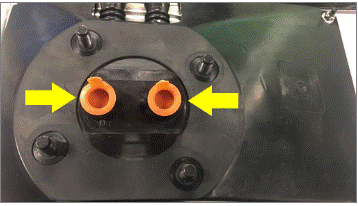

  12. Remove car computer coolant plugs from new car computer
    NOTE:

    2x coolant plugs

    G00642546Courtesy of TESLA, INC.

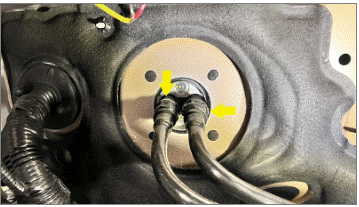

  13. Release coolant hoses from car computer
    NOTE:

    2x spring clips

    G00642547Courtesy of TESLA, INC.
  14. Install coolant plugs into coolant outlets of car computer that is being removed from vehicle

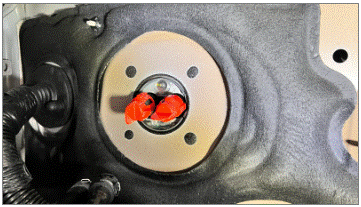

    G00642548Courtesy of TESLA, INC.

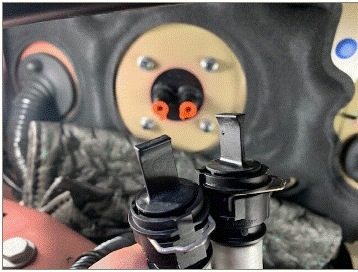

  15. Install plugs to car computer coolant hoses
    NOTE:

    2x plugs, Do not need to engage spring clips

    G00642549Courtesy of TESLA, INC.

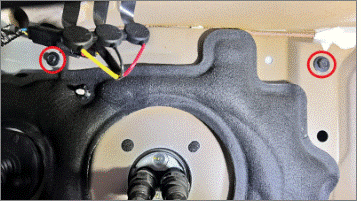

  16. Remove bolts securing car computer to bulkhead
    NOTE:

    2x bolts, 13mm

    G00642550Courtesy of TESLA, INC.
  17. Remove LH IP end cap
    NOTE:

    3x clips

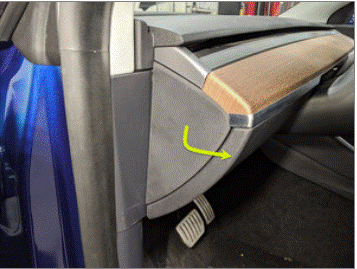

    G00642551Courtesy of TESLA, INC.
  18. Remove RH IP end cap
    NOTE:

    3x clips

    G00642552Courtesy of TESLA, INC.
  19. Remove RH mid A-pillar assembly
    NOTE:

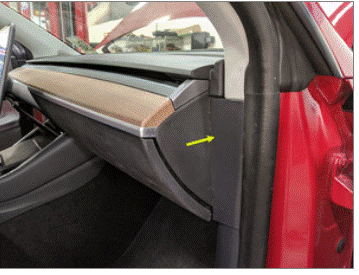

    1x clip, 1x tab, Release the upper clip then pull mid A-pillar upward to remove

    G00642553Courtesy of TESLA, INC.
  20. Remove clip securing RH lower A-pillar trim
    NOTE:

    1x push clip

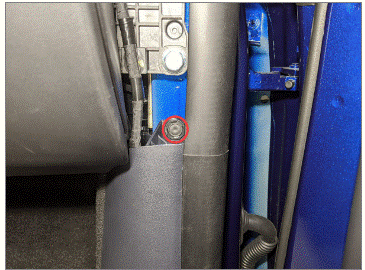

    G00642554Courtesy of TESLA, INC.
  21. Remove RH lower A-pillar trim
    NOTE:

    6x clips, 2 guide tabs, Pull rear of lower A-pillar upward to release clip then pull rearward to release trim panel

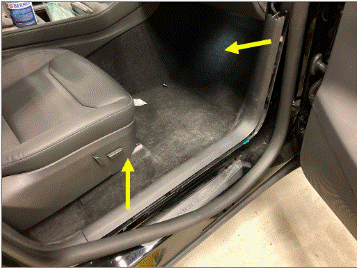

    G00642555Courtesy of TESLA, INC.
  22. Move the RH front seat back.

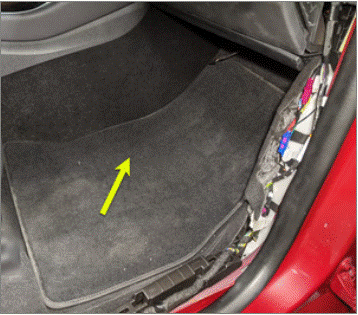

  23. Remove RH front floormat
    G00642556Courtesy of TESLA, INC.

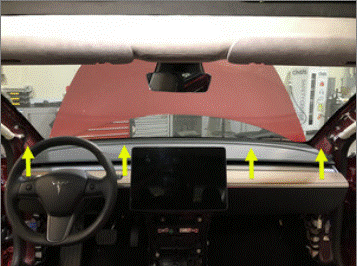

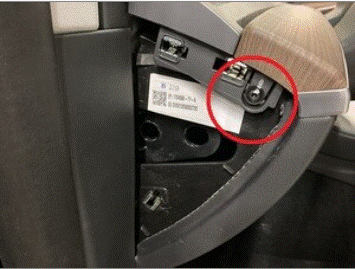

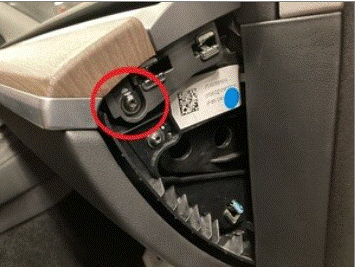

  24. Remove main decor assembly
    NOTE:

    2x screws, T20, 2.3 N.m, 15x clips, 1x center clip, Replace securing clips as needed

    G00642557Courtesy of TESLA, INC.
    G00642558Courtesy of TESLA, INC.
    G00642559Courtesy of TESLA, INC.

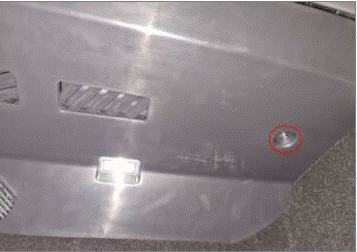

  25. Release RH footwell assembly from IP
    NOTE:

    1x screw, T20, 1.2 N.m, 1x push clip, 8x tabs, carefully pull out to release tabs

    G00642560Courtesy of TESLA, INC.

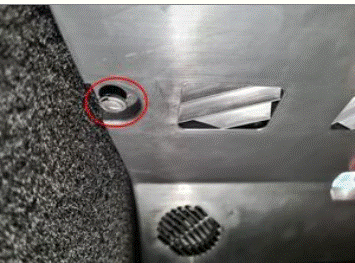

    G00642561Courtesy of TESLA, INC.

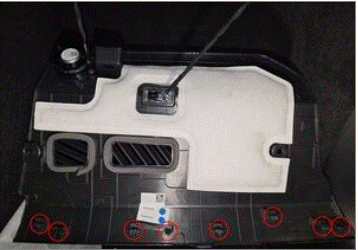

    G00642562Courtesy of TESLA, INC.
  26. Remove RH footwell assembly
    NOTE:

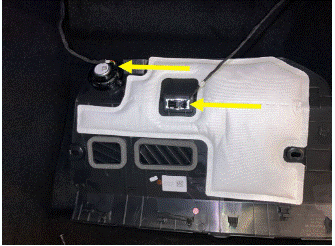

    2x connectors

    G00642563Courtesy of TESLA, INC.

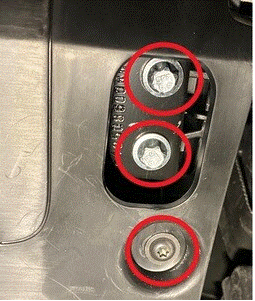

  27. Remove fasteners securing passenger knee air bag to vehicle
    NOTE:

    2x screws, T20, 2 N.m, 1x push clip, 4x patch bolts, E10, 8 N.m, Discard patch bolts after removal, Support the knee air bag while lowering, The connector / harness length is very short

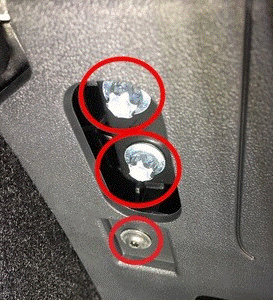

    G00642564Courtesy of TESLA, INC.
    G00642565Courtesy of TESLA, INC.

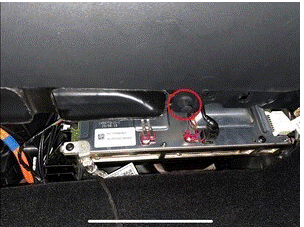

    G00642566Courtesy of TESLA, INC.

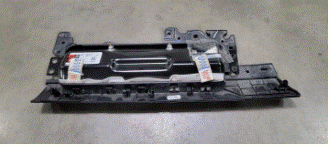

  28. Remove passenger knee air bag
    NOTE:

    1x connector, Release locking tab, Then release squib from air bag, Support air bag while disconnecting, Connector release may vary

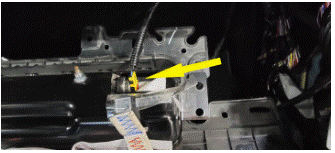

    G00642567Courtesy of TESLA, INC.

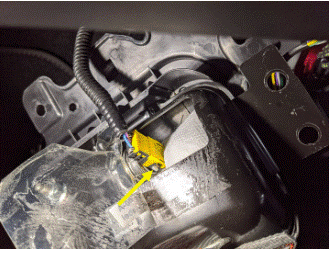

    G00642568Courtesy of TESLA, INC.
    G00642569Courtesy of TESLA, INC.

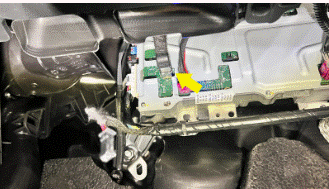

  29. Disconnect glove box USB cable from car computer
    NOTE:

    1x connector, Depress latch on top of USB cable to release internal latches, then release from car computer.

    G00642570Courtesy of TESLA, INC.

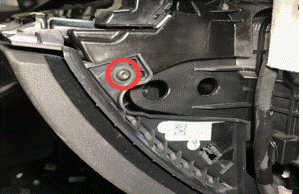

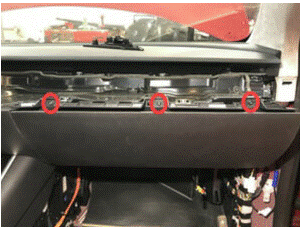

  30. Remove screws securing glove box assembly to IP carrier
    NOTE:

    6x screws, T20, 2.3 N.m

    G00642571Courtesy of TESLA, INC.
    G00642572Courtesy of TESLA, INC.
    G00642573Courtesy of TESLA, INC.
  31. Disconnect glove box assembly connectors
    NOTE:

    3x connectors

    G00642574Courtesy of TESLA, INC.

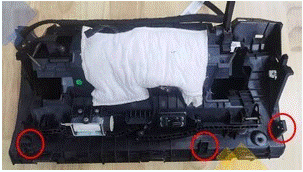

  32. Remove the glove box from IP carrier
    NOTE:

    3x clips

    G00642575Courtesy of TESLA, INC.
  33. Remove RH console side panel carpet
    NOTE:

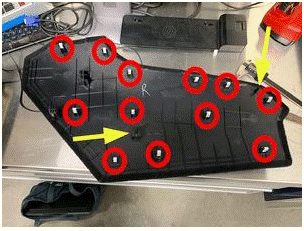

    12x clips, 2x locating pins, Use trim tool starting at top edge to release upper clips, Pull bottom to release remaining clips, Use caution and pull panel straight away from console, if panel is peeled off it could be damaged

    G00642576Courtesy of TESLA, INC.
    G00642577Courtesy of TESLA, INC.

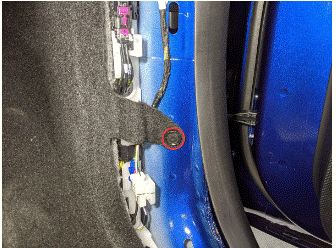

  34. Remove clip securing RH front cabin carpet to body
    NOTE:

    1x clip

    G00642578Courtesy of TESLA, INC.

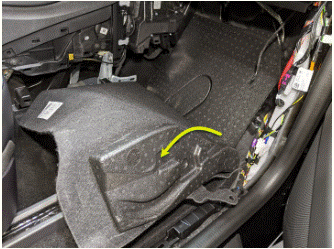

  35. Fold RH front cabin carpet rearward
    NOTE:

    Newer VINs may be equipped with additional foam installed below carpet

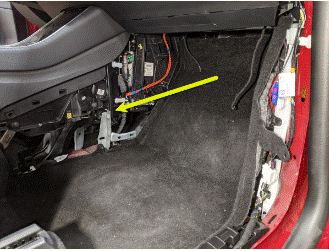

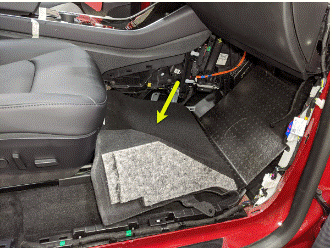

    G00642579Courtesy of TESLA, INC.
    G00642580Courtesy of TESLA, INC.
    G00642581Courtesy of TESLA, INC.
  36. Remove the passenger footwell air duct
    NOTE:

    1x push clip

    G00642582Courtesy of TESLA, INC.
  37. Remove the RH IP air wave duct
    NOTE:

    2x push clips

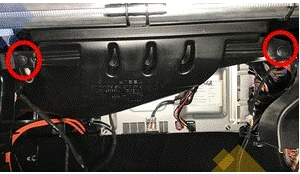

    G00642583Courtesy of TESLA, INC.

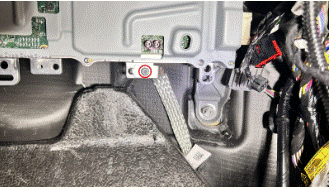

  38. Release ground strap from car computer
    NOTE:

    1x bolt, T25, 4 N.m, Bolt located, Discard bolt after removal

    G00642584Courtesy of TESLA, INC.

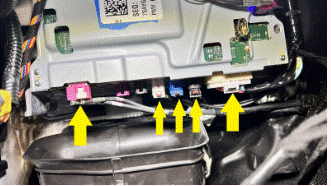

  39. Release connections at LH side of car computer
    NOTE:

    5x connectors, Release locks on connectors before removal

    G00642585Courtesy of TESLA, INC.
  40. Disconnect connectors on front side of car computer
    NOTE:

    2x connectors

    G00642585Courtesy of TESLA, INC.
  41. Remove car computer mounting fasteners
    NOTE:

    2x nuts, 13mm, 8 N.m

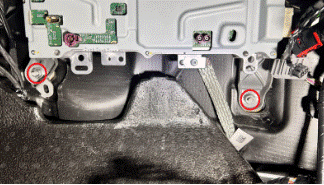

    G00642586Courtesy of TESLA, INC.
  42. Partially remove car computer to access RH connectors
    NOTE:

    Avoid straining harness

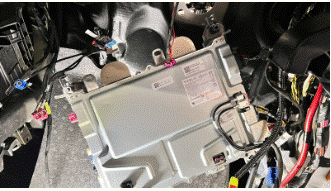

    G00642587Courtesy of TESLA, INC.

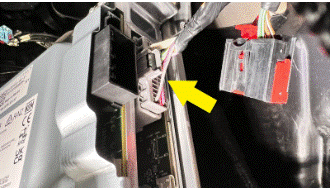

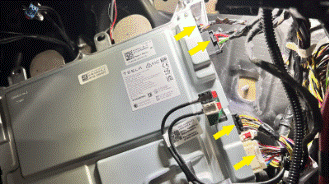

  43. Release connectors at RH side of car computer
    NOTE:

    5x connectors, Release locks on connectors if equipped before removal

    G00642588Courtesy of TESLA, INC.
    G00642589Courtesy of TESLA, INC.
  44. Remove board to board jumper
    NOTE:

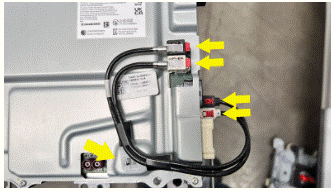

    G00642590Courtesy of TESLA, INC.

    4x connectors, 1x harness clip, This will be installed on new car computer
