Car Computer (Info-Ryzen) - Remove And Install: Notes

Last modified: 21/11/2023 13:20:23

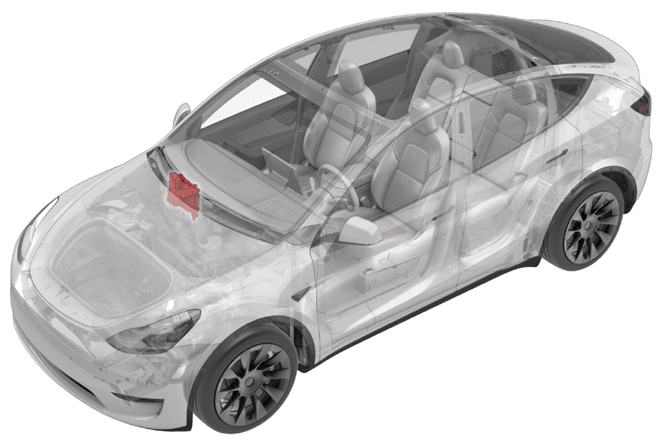

Fig 1: Car Computer (Info-Ryzen) Components Location

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

Revision History

2023-10-11: Added 18300400 Cooling System (Vacuum Refill).

CAUTION: Do not service the car computer and drive inverter concurrently. First, service the car computer. After installation of the car computer has completed successfully, then service the drive inverter.

NOTE: This procedure removes and then installs the same car computer. To replace a car computer, refer to document SI-22-21-001.

1119171-00-APlug, Car Computer Fluid Port
1135762-00-AKit, Svc Plug, Cooling Hose, Model 3
