Car Computer (Info-Ryzen) - Remove And Install: Remove

  1. Open all doors and lower all windows.
  2. Move both front seats backward.
  3. Disconnect the LV power. See 12V/LV Power (Disconnect and Connect)
  4. Remove the HEPA duct. See Duct - HEPA (Remove and Replace) .
  5. Place absorbent material below the car computer coolant inlet and outlet to collect any spilled coolant.

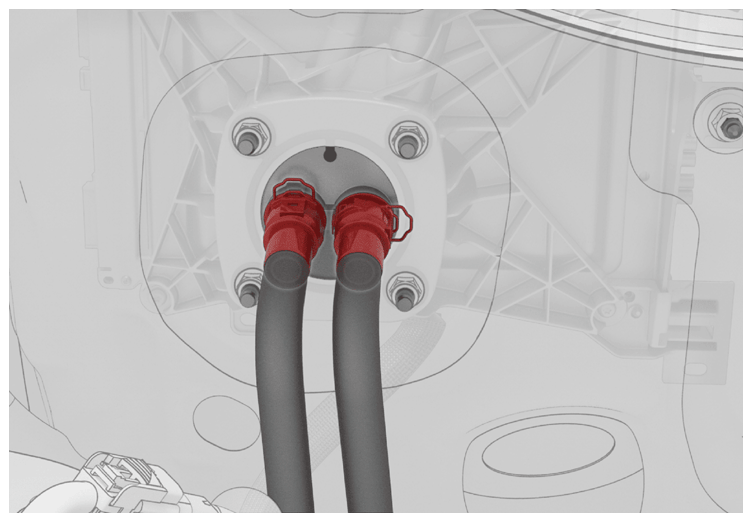

  6. Loosen the spring clips (x2) from the coolant hoses, and then release the hoses from the car computer.
    G14838665Courtesy of TESLA, INC.

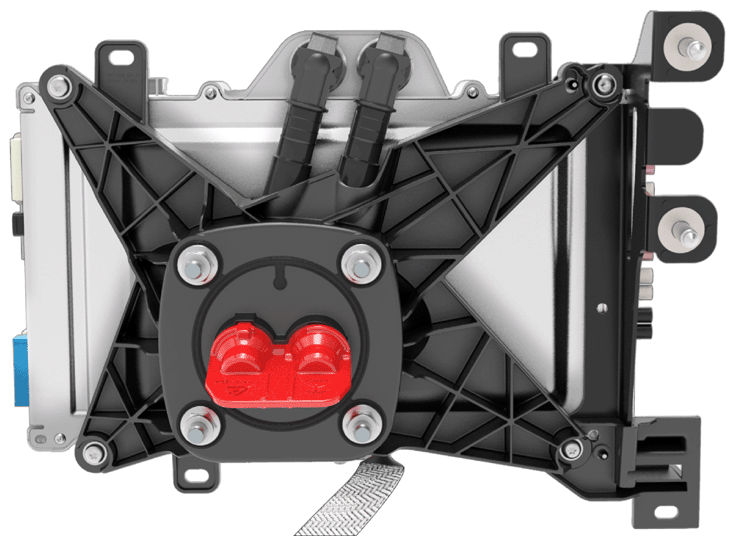

  7. Install the car computer fluid port plug to the inlet and outlet of the car computer.
    G14838666Courtesy of TESLA, INC.

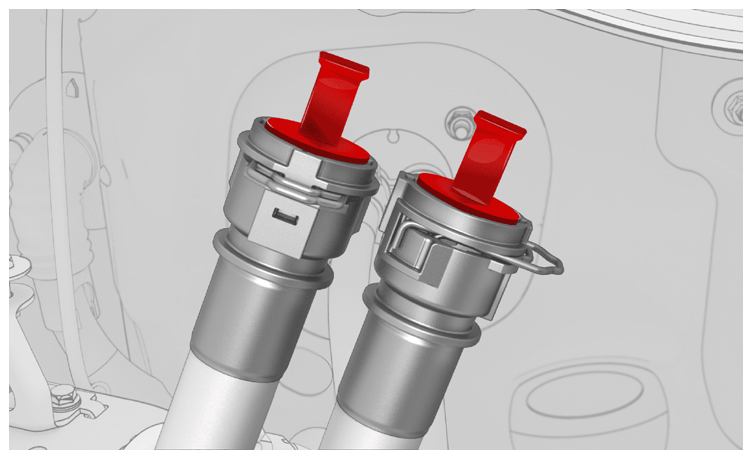

  8. Block the coolant hoses with the coolant hose plugs (x2).
    NOTE: No need to engage spring clips.
    G14838667Courtesy of TESLA, INC.

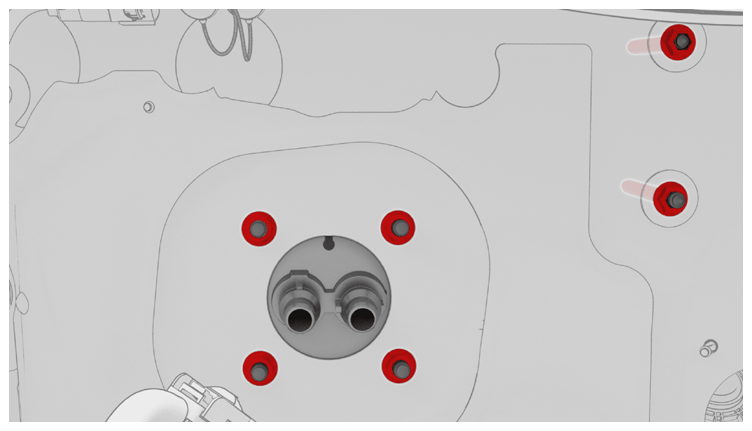

  9. Remove and discard the nyloc nuts (x6) that attach the car computer to the bulkhead.
    G14838668Courtesy of TESLA, INC.
  10. Remove the RH front floor mat.
  11. Remove the glove box. See Glove Box - Without Knee Airbags (Remove and Replace) or Glove Box - With Knee Airbags (Remove and Replace) .
  12. Remove the RH center console side panel carpet. See Side Panel - Center Console - LH (Remove and Replace)

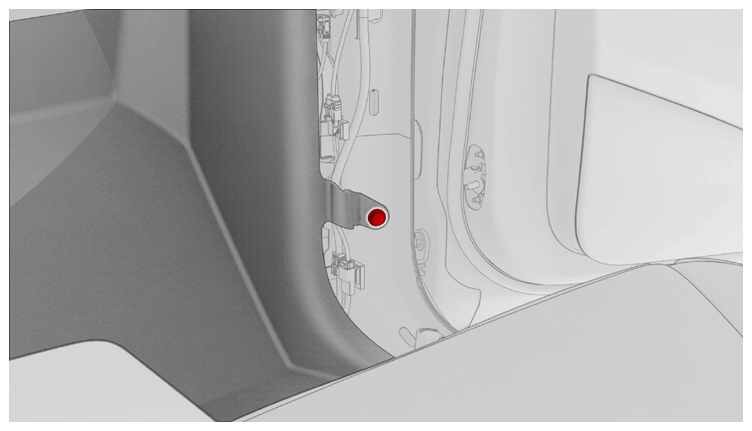

  13. Remove the clip that attaches the RH front cabin carpet to the body, and then fold the RH front cabin carpet backwards.
    G14838669Courtesy of TESLA, INC.
  14. Remove the RH footwell duct. See Duct - Footwell - RH (Remove and Replace) .
  15. Remove the RH air wave duct. See Duct - Air Wave - RH (Remove and Replace) .

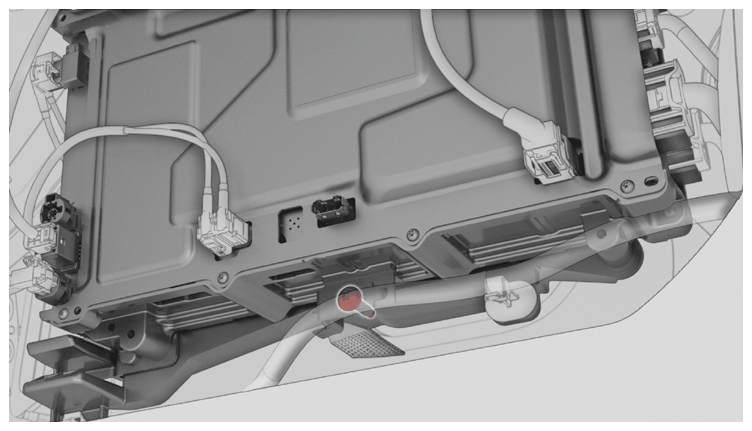

  16. Remove and discard the bolt that attaches the ground strap to the car computer.
    G14838670Courtesy of TESLA, INC.

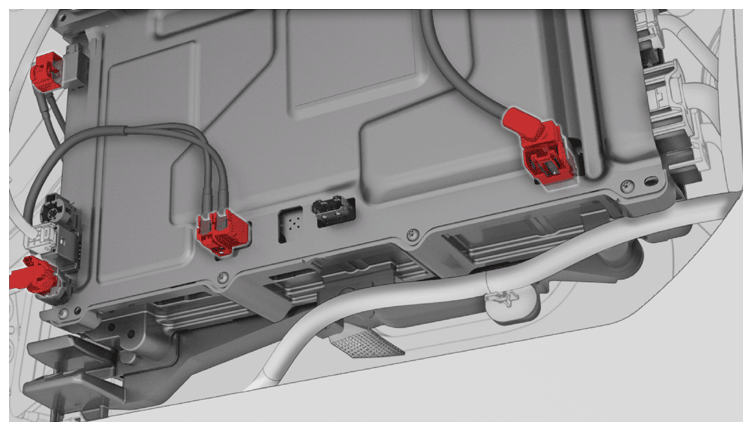

  17. Disconnect the connectors (4x) on the front of the car computer.
    G14838671Courtesy of TESLA, INC.

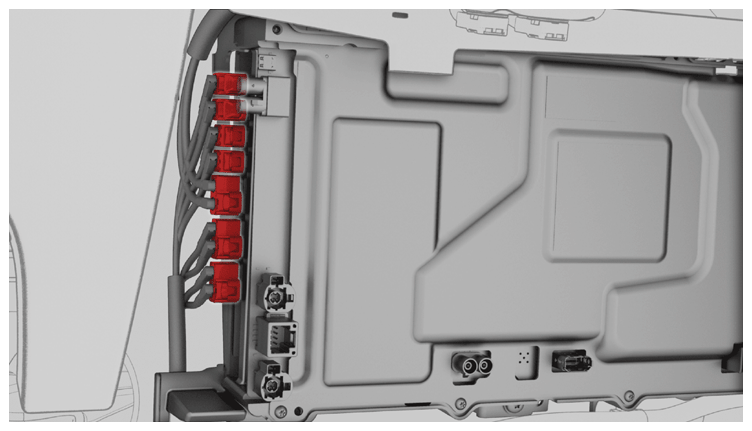

  18. Release the harness connectors (x7) on the LH side of the car computer.
    G14838672Courtesy of TESLA, INC.

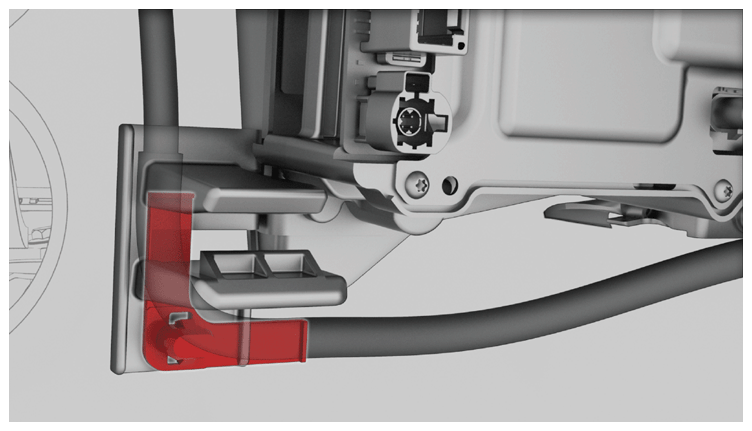

  19. Release the harness guide clip.
    G14838673Courtesy of TESLA, INC.
  20. Slide the car computer inward to allow access to the connectors and harness clips.

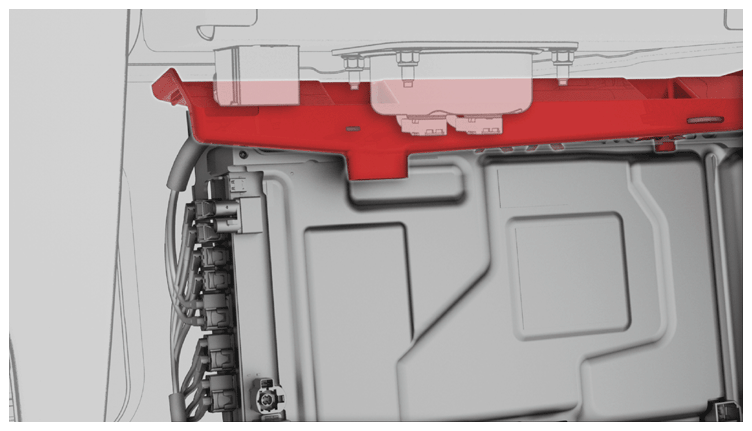

  21. Remove the clips (x4) that attach the drip guard to the car computer.
  22. Pull the tab on the LH side of the computer and lift the drip guard.
    G14838674Courtesy of TESLA, INC.

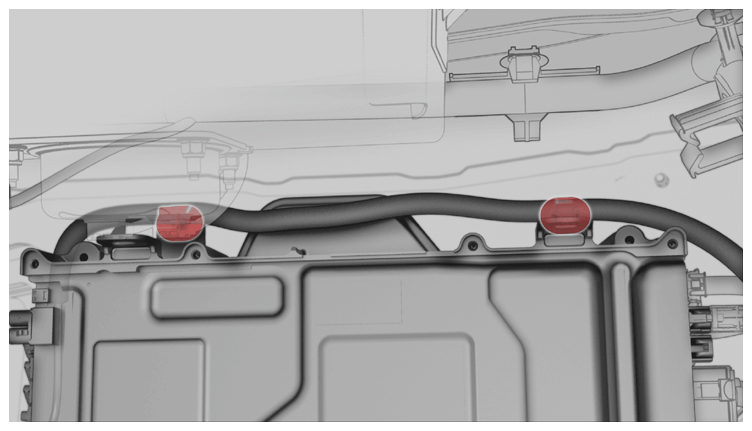

  23. Release the harness clips (x2) from the top of the car computer.
    G14838675Courtesy of TESLA, INC.

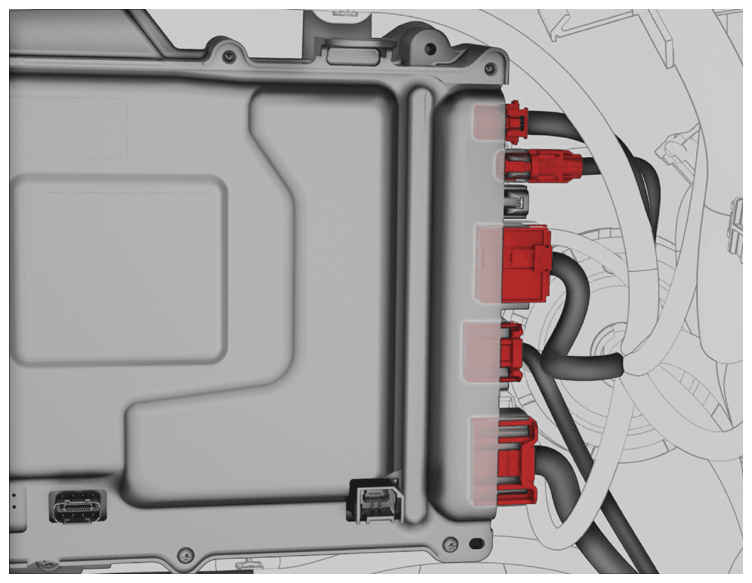

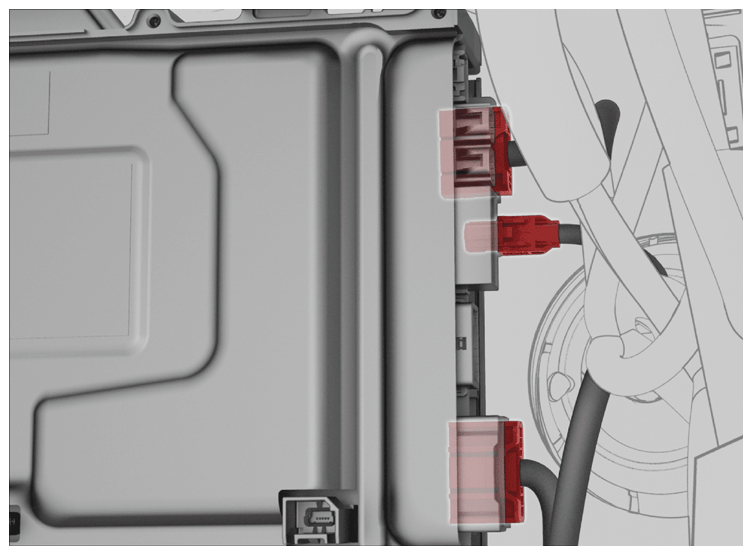

  24. Release the connectors (x8) from the RH side of the car computer, and then remove the computer from the vehicle.
    CAUTION: Avoid spilling coolant on the electrical connectors.
    CAUTION: Take care not to damage the passenger airbag harness and connectors during removal.
    G14838676Courtesy of TESLA, INC.
    G14838677Courtesy of TESLA, INC.
