Module - Restraint Control (Structural Pack) - Remove And Replace: Remove
- Open the front doors and lower the front windows.
- Move the front passenger seat rearward.
- Remove the RH center console side panel. See SIDE PANEL - CENTER CONSOLE - LH (REMOVE AND REPLACE) .
- Remove the rear underhood apron. See UNDERHOOD APRON - REAR (REMOVE AND REPLACE) .

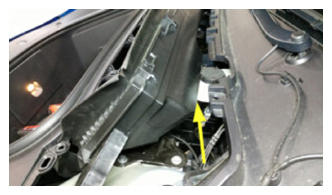

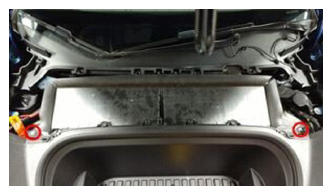

- Remove the bolts (x2) that attach the HEPA filter assembly to the vehicle, and then remove the assembly from the vehicle.
Torque 5 Nm (3.7 lbs-ft)

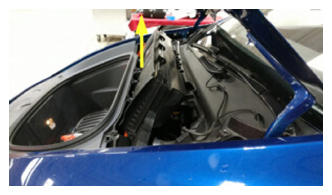

NOTE: Pivot the rear edge of the assembly upward to clear the brake reservoir, and then lift the assembly upward to clear the underhood storage unit.Tip: Use of the following tool(s) is recommended:
- 10mm socket
- Disconnect LV power. See 12 V/LV POWER - DISCONNECT AND CONNECT
.WARNING: Make sure LV is disconnected before continuing to the next step.

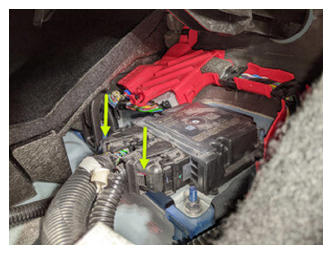

- Disconnect the restraint control module connectors (x2).

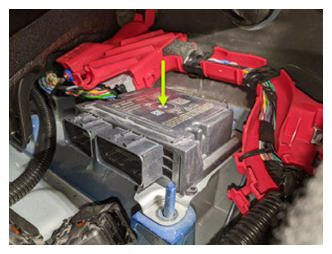

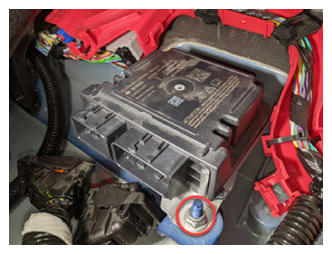

- Remove and discard the nuts (x3) that attach the restraint control module to the vehicle.
Torque 8 Nm (5.9 lbs-ft)
Tip: Use of the following tool(s) is recommended:
- 10mm socket

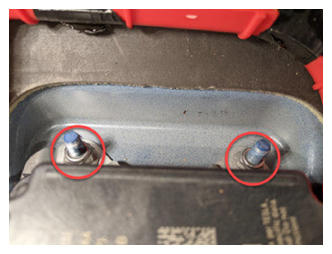

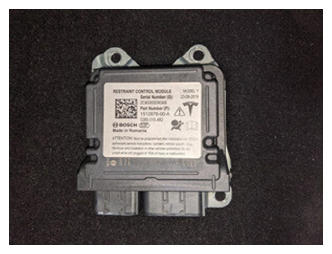

- Lift the restraint control module off the alignment studs, and then slide the module out from under the riser to remove it from the vehicle.
