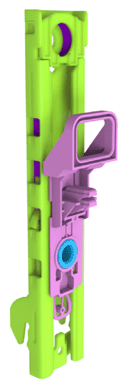

Adjustable Top Loop - Remove And Replace: Remove
- Open both LH doors and lower both LH windows.
- Move the LH front seat fully forward.

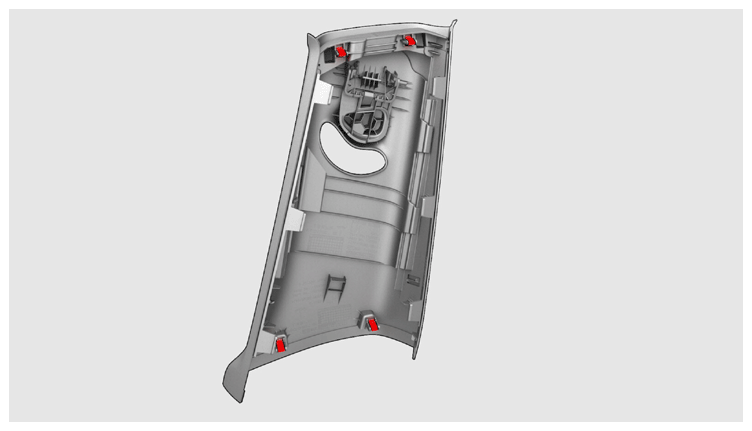

- Release the clips that attach the LH upper B-pillar trim to the vehicle.
Tip: Release the clips at the bottom of the LH upper B-pillar trim first, and then release the clips at the top of the trim.
- Set the LH upper B-pillar trim aside.

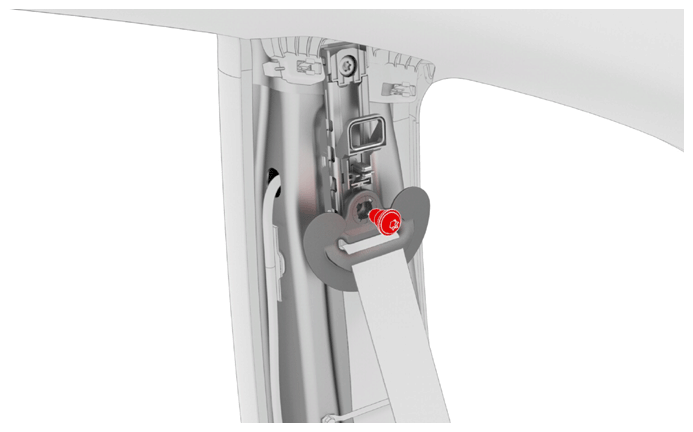

- Remove and discard the patch bolt that attaches the upper D-ring to the B-pillar.
Tip: Use of the following tool(s) is recommended:
- Torx T45 socket
- 3/8 in std ratchet
- 3/8 in flex head torque wrench (installation only)
- 3 in extension

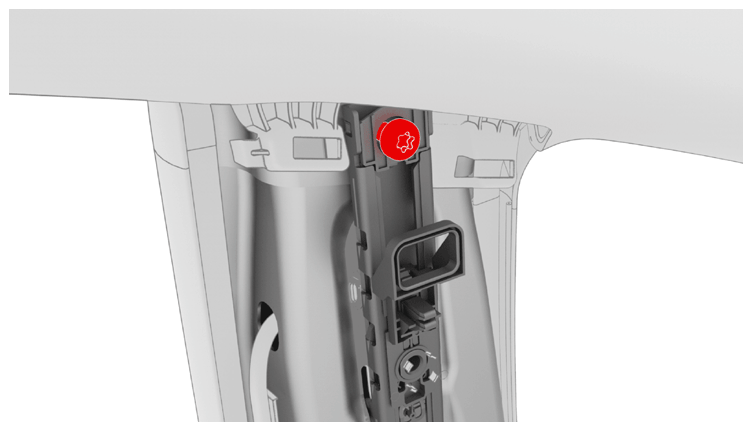

- Remove the bolt that attaches the adjustable top loop to the B-pillar.NOTE: The patch bolt is permanently attached to the adjustable top loop.
Tip: Use of the following tool(s) is recommended:
- Torx T47 socket
- 3/8 in std ratchet
- 3/8 in flex head torque wrench (installation only)

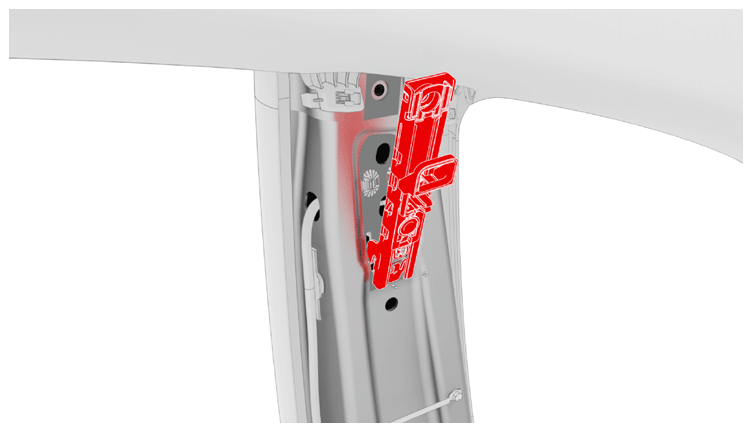

- Pull the top of the adjustable top loop away from the B-pillar, and then slide upwards to remove the adjustable top loop from the vehicle.
