Torque Specifications

TORQUE SPECIFICATIONS: MODULE - STEERING COLUMN CONTROL (REMOVE AND REPLACE)

Description	Torque Value	Recommended Tools	Reuse/Replace

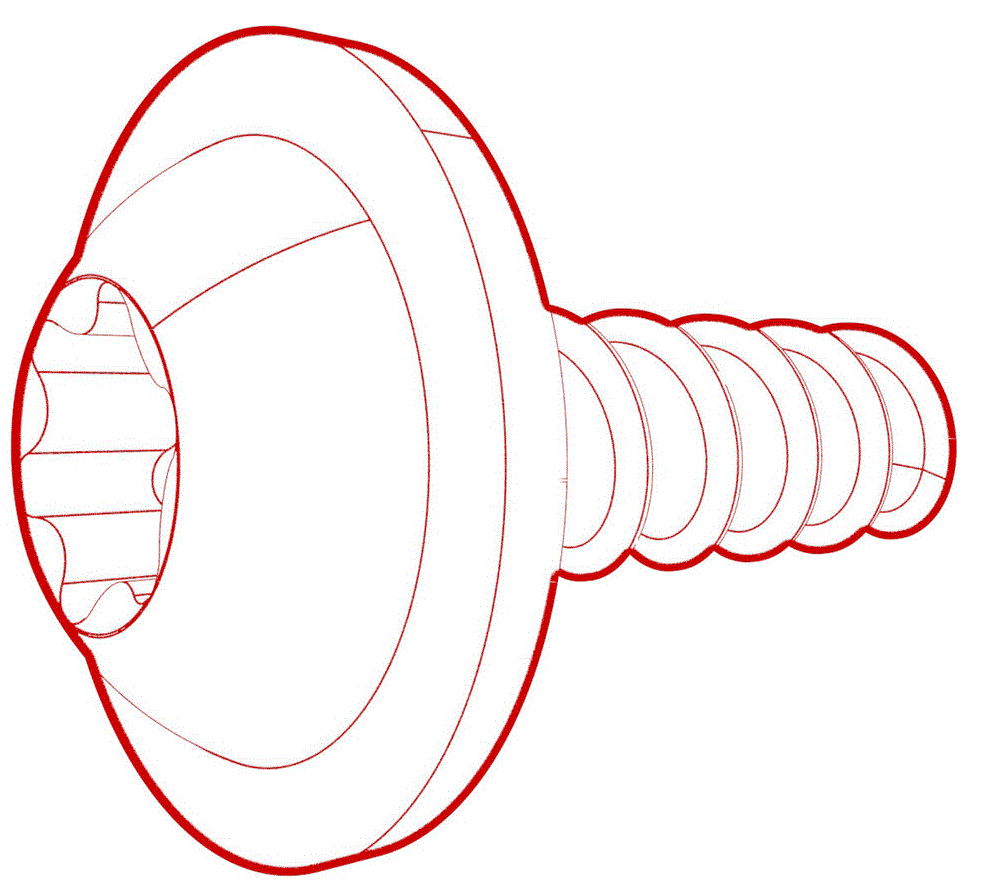

Upper screws that attach the steering column lower shroud to steering column	1.5 N.m (1.1 lbs-ft)	Torx T20 socket 1/4 in std ratchet 2 in extension Wiha TorqueVario-S 0.8 N.m - 2.0 N.m screwdriver (installation only) Torx T20 bit, 70 mm Wiha 1/4 in bit holder adapter Wiha torque setter	Reuse
Lower screw that attaches steering column lower shroud to steering column	1.5 Nm (1.1 lbs-ft)	Torx T20 socket in std ratchet 2 in extension Wiha TorqueVario-S 0.8 Nm - 2.0 Nm screwdriver (installation only) Torx T20 bit, 70 mm Wiha in bit holder adapter Wiha torque setter	Reuse
Lower screw that attaches steering column lower shroud to steering column	1.5 N.m (1.1 lbs-ft)	Torx T20 socket 1/4 in std ratchet 2 in extension Wiha TorqueVario-S 0.8 N.m - 2.0 N.m screwdriver (installation only) Torx T20 bit, 70 mm Wiha 1/4 in bit holder adapter Wiha torque setter	Reuse
Bolt that attaches the steering column control module to the steering column	9 N.m (6.6 lbs-ft)	5 mm hex ball end bit 1/4 in std ratchet 1/4 in torque wrench (installation only) 2 in extension	Reuse
