Complete Disconnect

  1. Allow any running Toolbox 3 routines to complete.

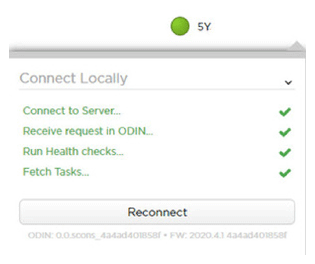

  2. In Toolbox 3, click the green circle in the upper right corner to open the connection window.
    G16587263Courtesy of TESLA, INC.
  3. Click Disconnect  , and then click the grey circle to close the connection window.

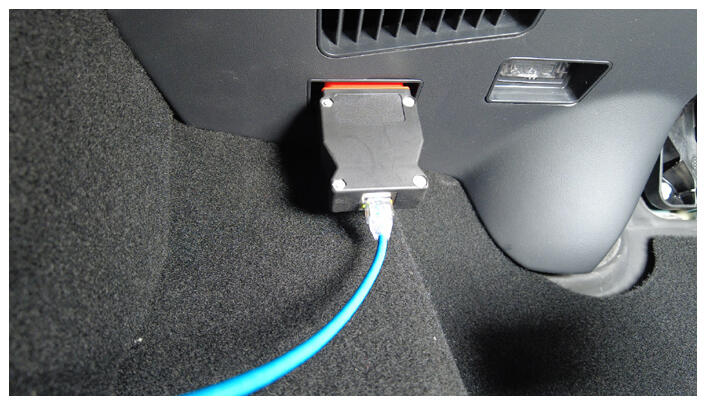

  4. Disconnect the vehicle interface cable from the vehicle interface connector and from the laptop.
    G16587264Courtesy of TESLA, INC.
  5. Close the LH front door.
