Inspect the defect(s) and determine whether they are low or high risk.
- If the defect(s) are low risk, continue to the next step.
- If the defect(s) are high risk, escalate the repair to a body shop.
- Low Risk Defect Characteristics
- Less than 1.5 mm diameter on flat or near-flat body panels
- Less than 1.0 mm diameter on or near character lines
- High or low spots
- Basic surface paint inclusions
- Holograms
- Swirls
- Solvent pop
- Overspray
- Light to medium depth scratches

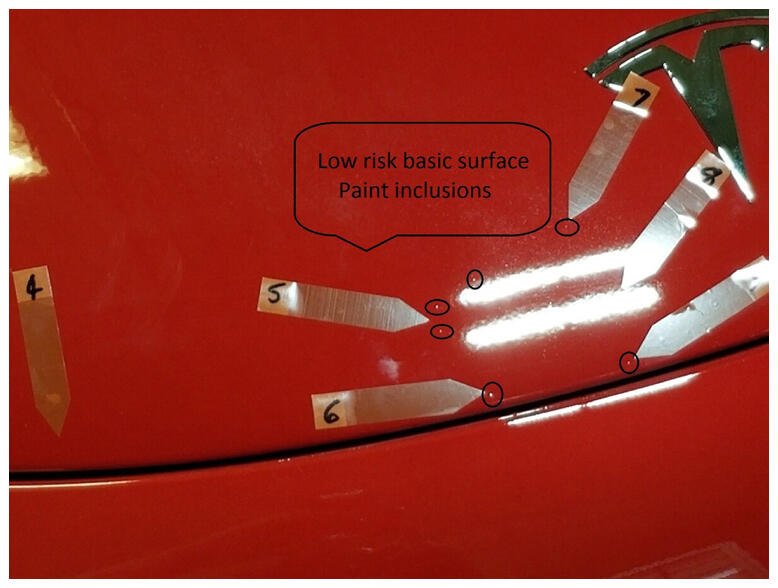

NOTE:
Low risk basic surface paint inclusions
 Courtesy of TESLA, INC.
|

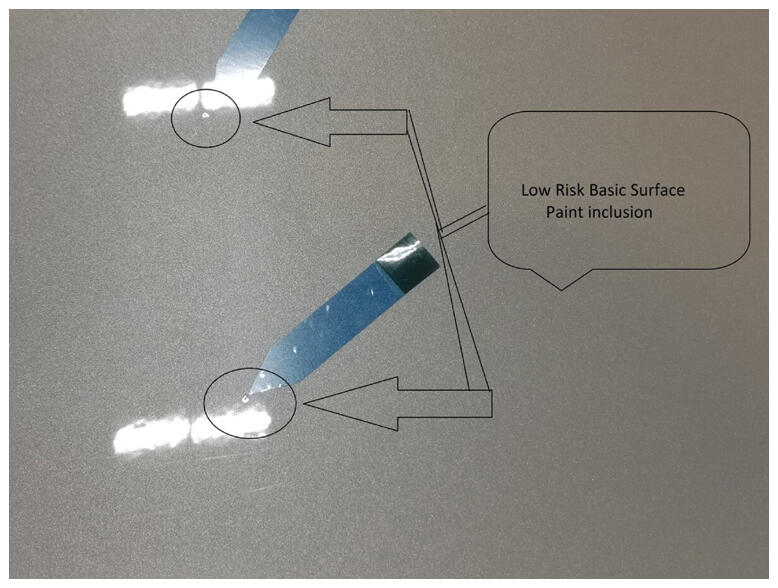

NOTE:
Low risk basic surface paint inclusions
 Courtesy of TESLA, INC.
|
- High Risk Defect Characteristics
- Larger than 2.0 mm diameter on flat or near-flat body panels
- Larger than 1.0 mm diameter on or near character lines
- Off color inclusions
- High or low spots larger than 2.0 mm

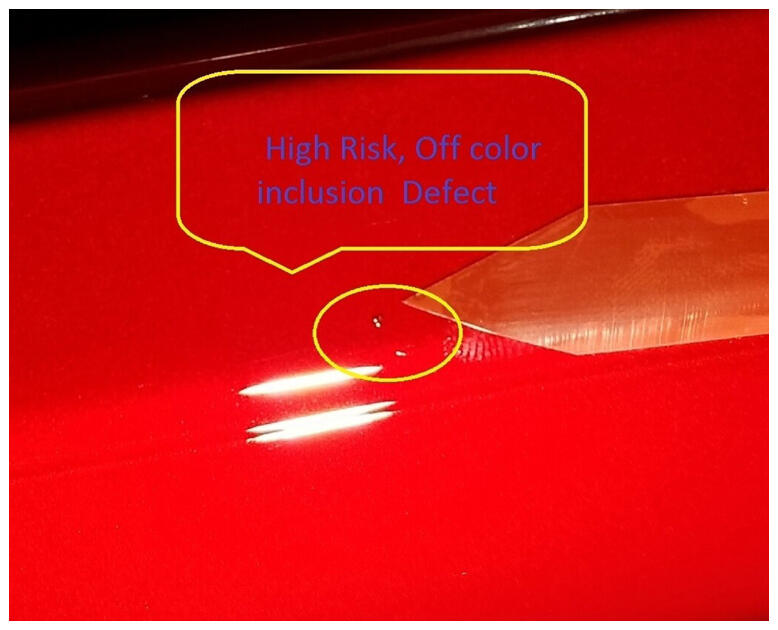

NOTE:
High risk off color paint inclusion
 Courtesy of TESLA, INC.
|

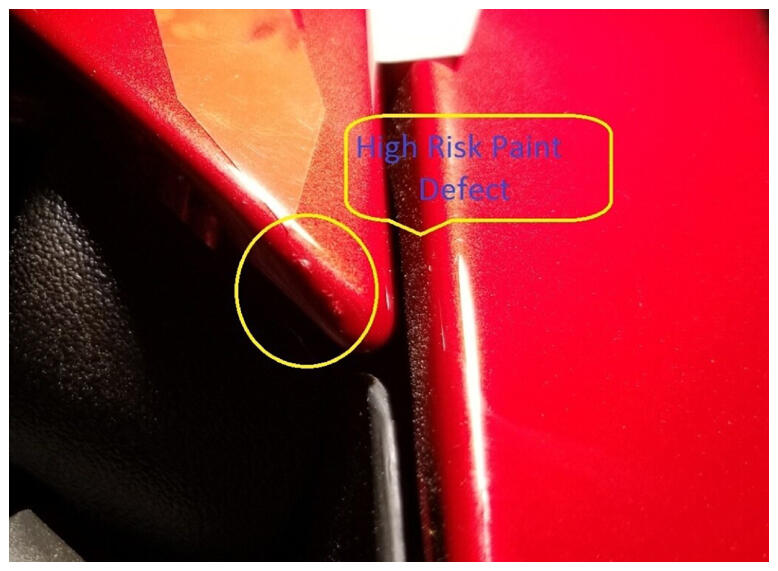

NOTE:
High risk defect on character line
 Courtesy of TESLA, INC.
|
