Check Valve

Remove check valve by disconnecting air inlet hose from valve. Blow air into check valve from both sides. Flow should be in one direction only. If defective, replace valve.

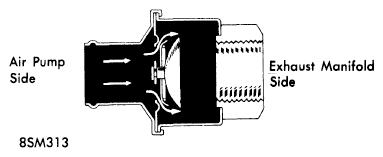

Fig 1: Check Valve (Open)
G09309535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
