Vacuum Switching Valve Open-Circuit Test

Unplug valve connector and measure resistance between (+) terminal and other terminals using a circuit tester. Replace valve if resistance is not to specified value. See Fig 1.

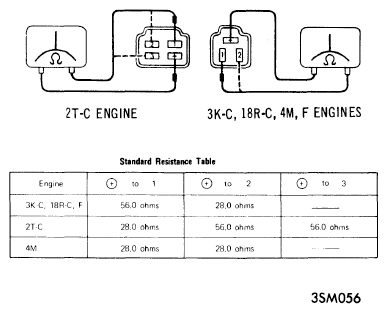

Fig 1: VACUUM SWITCHING VALVE OPEN CIRCUIT TEST

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
