Vacuum Transmitting Valve

Blow air through each side of valve(s). On Corolla and VTV 1 of Tercel, air should pass freely from side B to A, but should pass with difficulty from side A to side B. See Fig 1. On VTV 2 of Tercel, air should pass with difficulty from both sides.

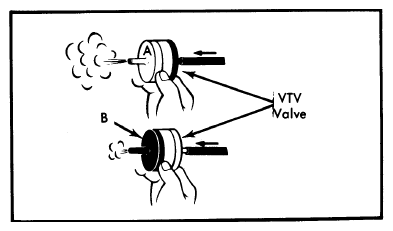

Fig 1: Testing Vacuum Transmitting Valve
G09314063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
