Vacuum Transmitting Valve (VTV)

Remove valve and blow through both sides. On Corolla and Tercel models, air should flow with resistance in both directions. On Land Cruiser models, air should flow easily from side B to A, but with resistance from side A to B.

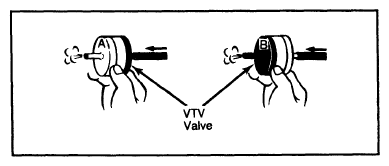

Fig 1: Vacuum Transmitting Valve Test
G09323335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
