Riding Height

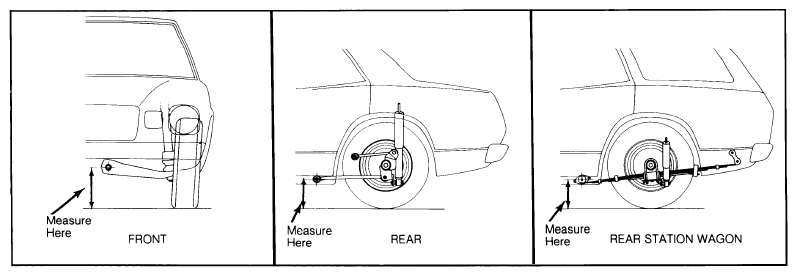

Before adjusting wheel alignment, check riding height. Riding height must be checked with vehicle on level floor. Jounce vehicle serveral times and allow suspension to settle. Check riding height measurement as shown in Figure  and 2.  If riding height is not within specifications listed in Riding Height Specifications table, check and repair or replace suspension components.
