Base Ignition Timing Specifications — 1982 Toyota Corolla DX, 2D Hatchback Service Manual ~ LEMON Manuals

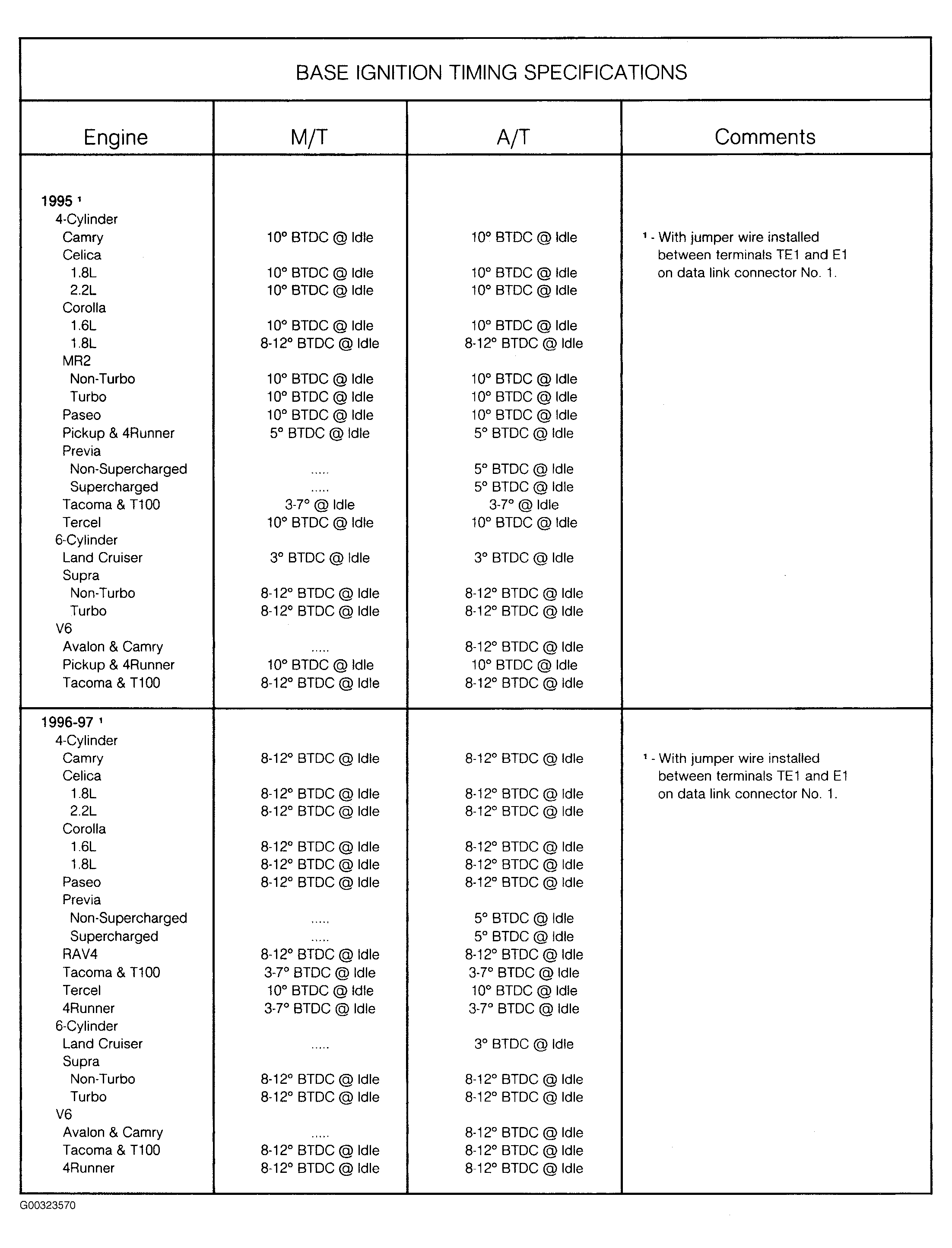

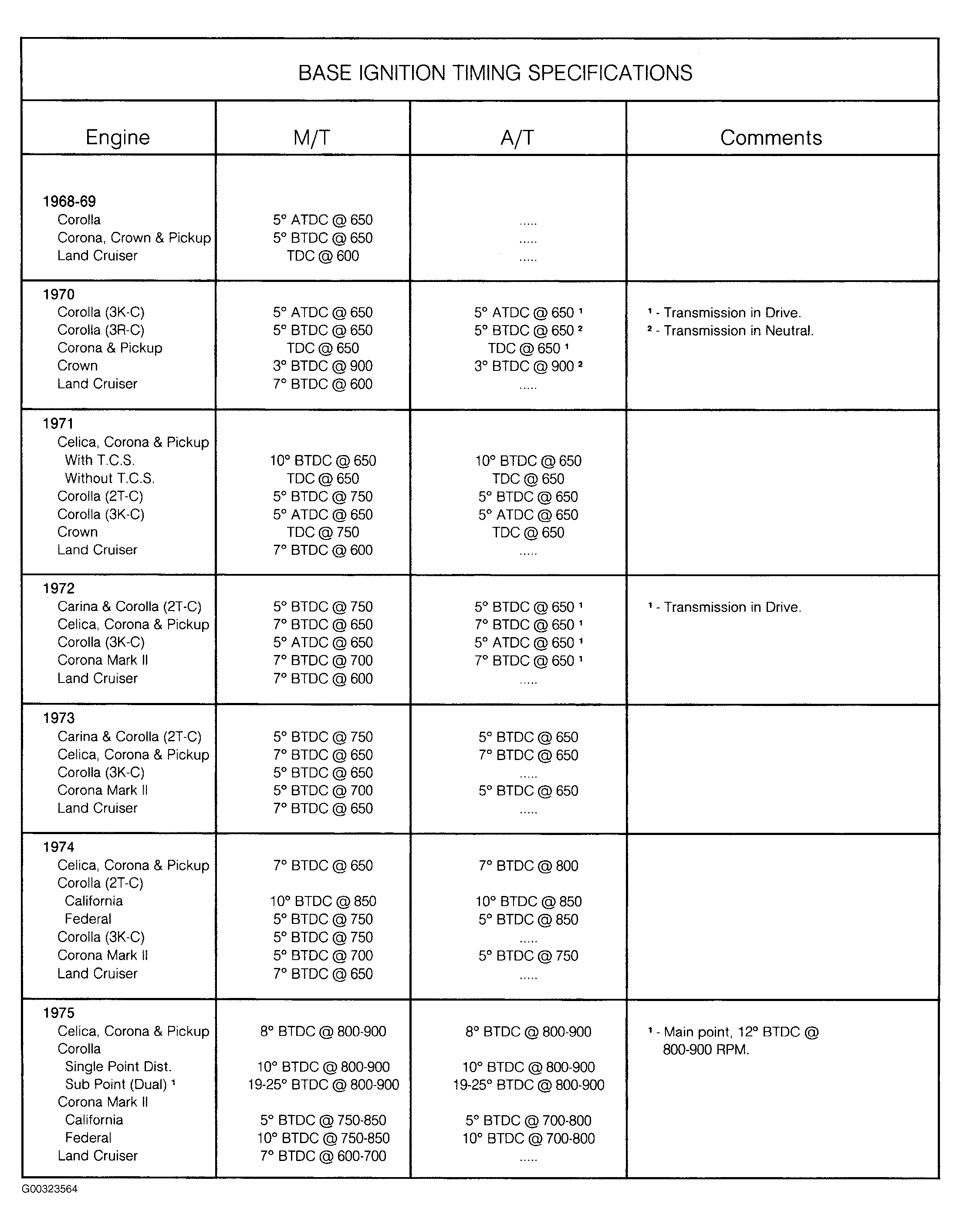

Fig 1:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

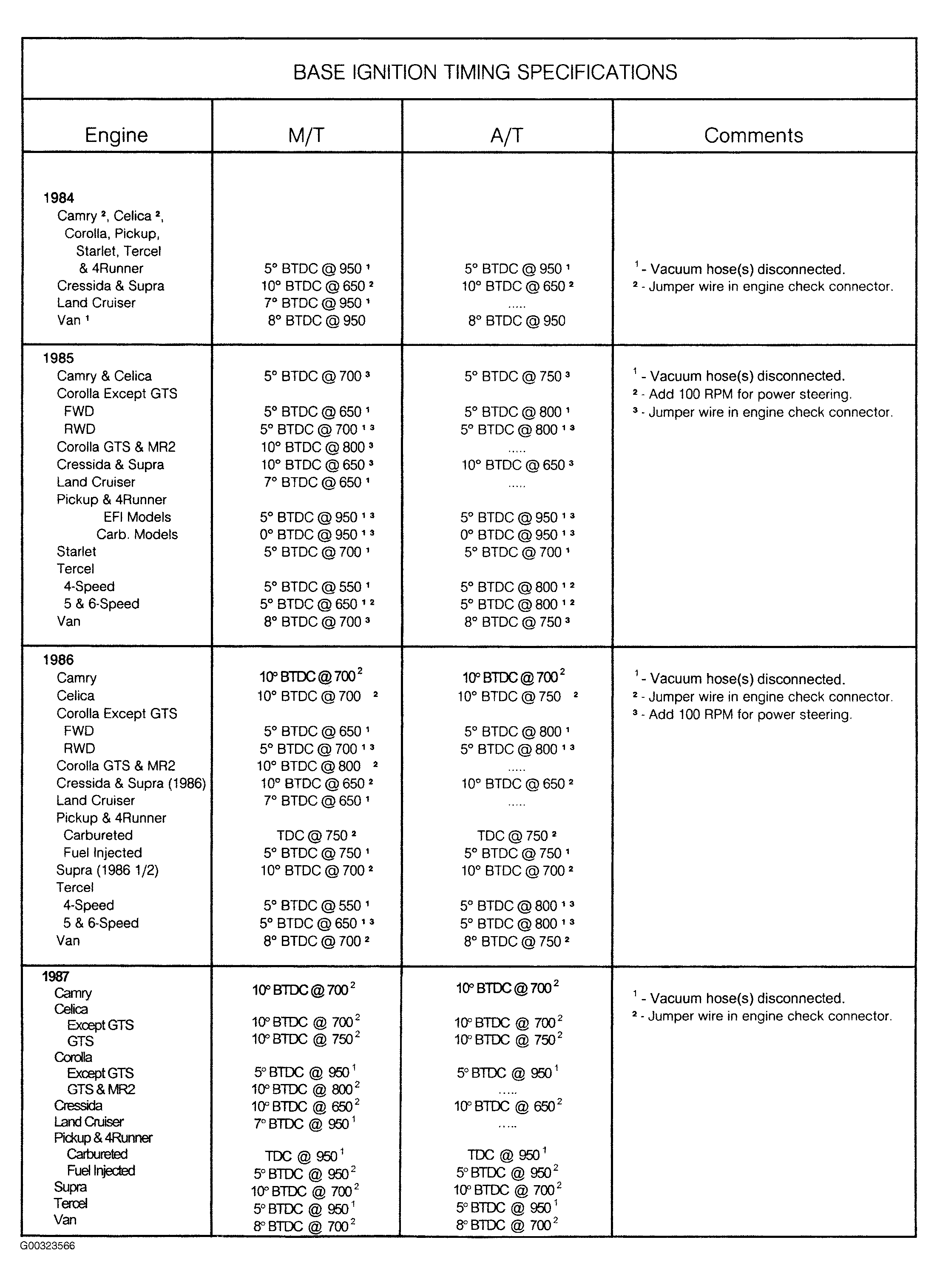

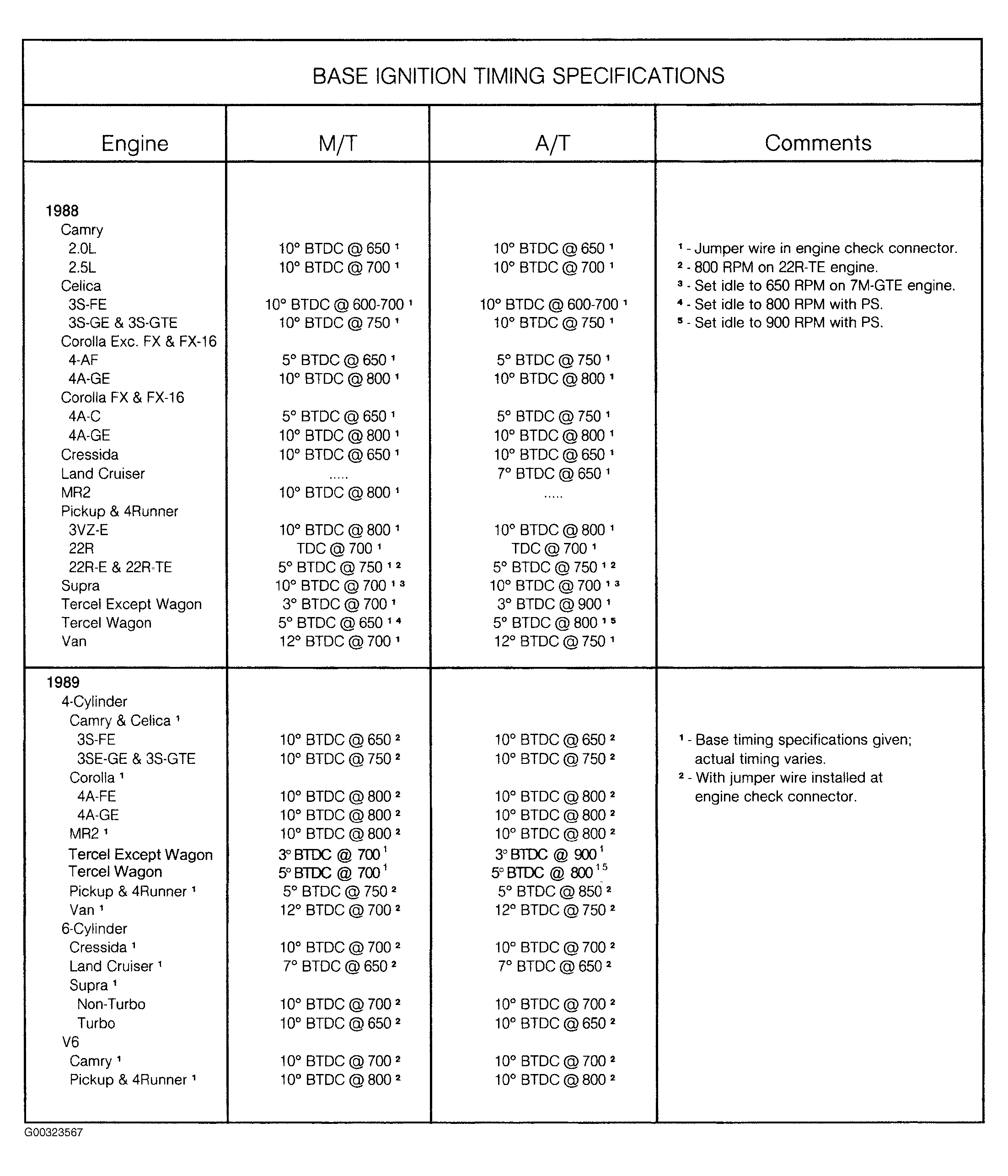

Fig 2:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

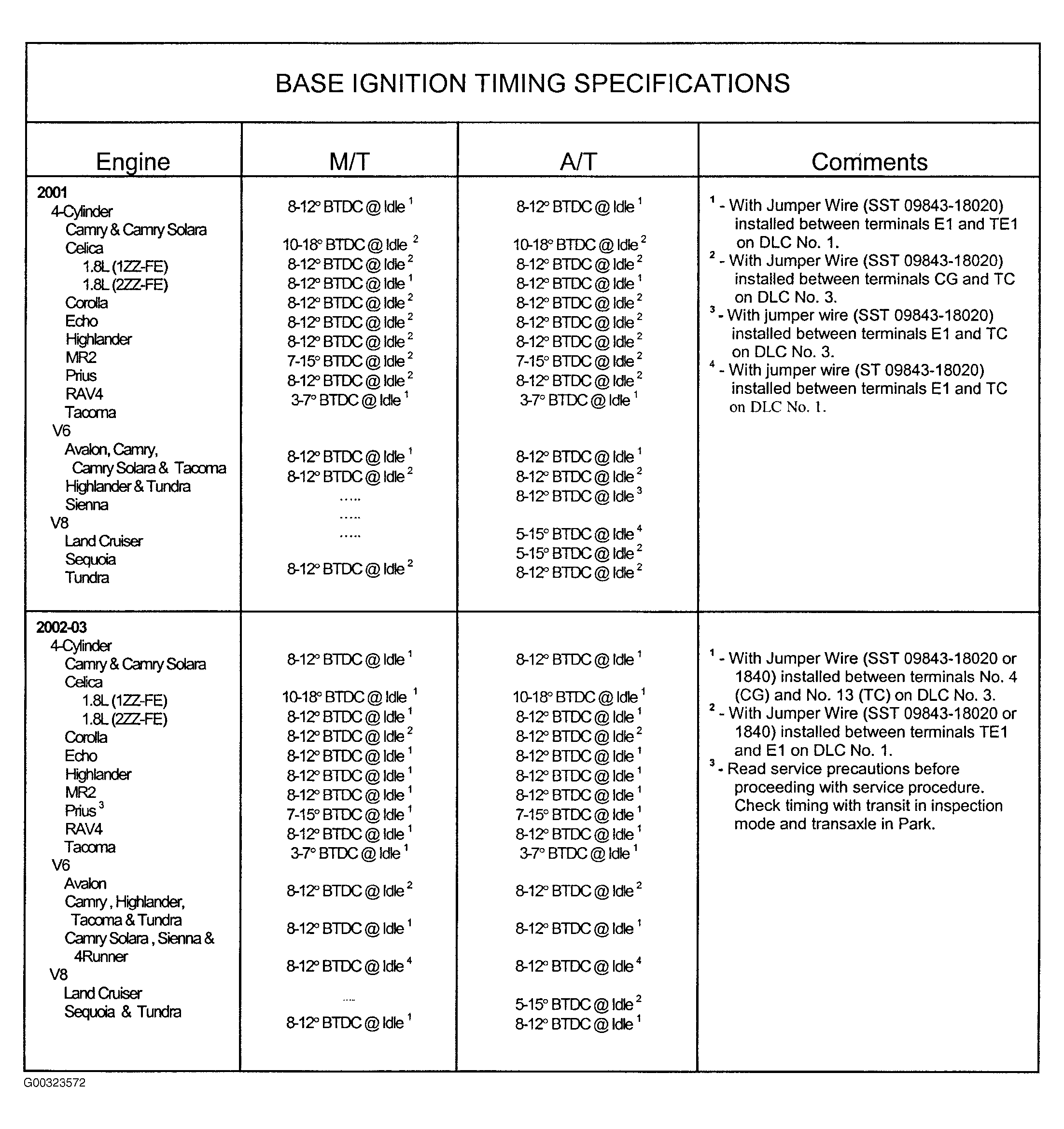

Fig 3:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

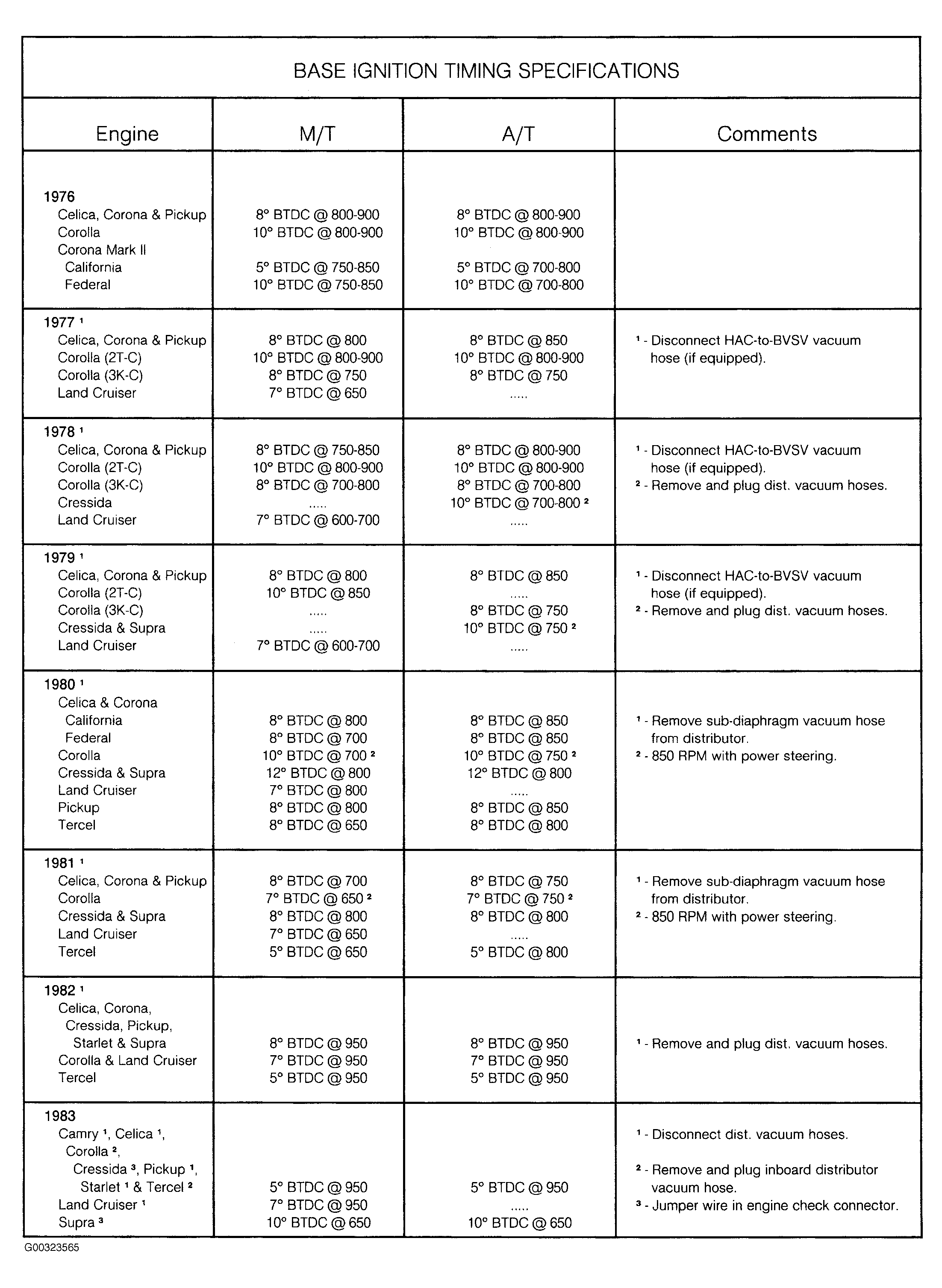

Fig 4:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

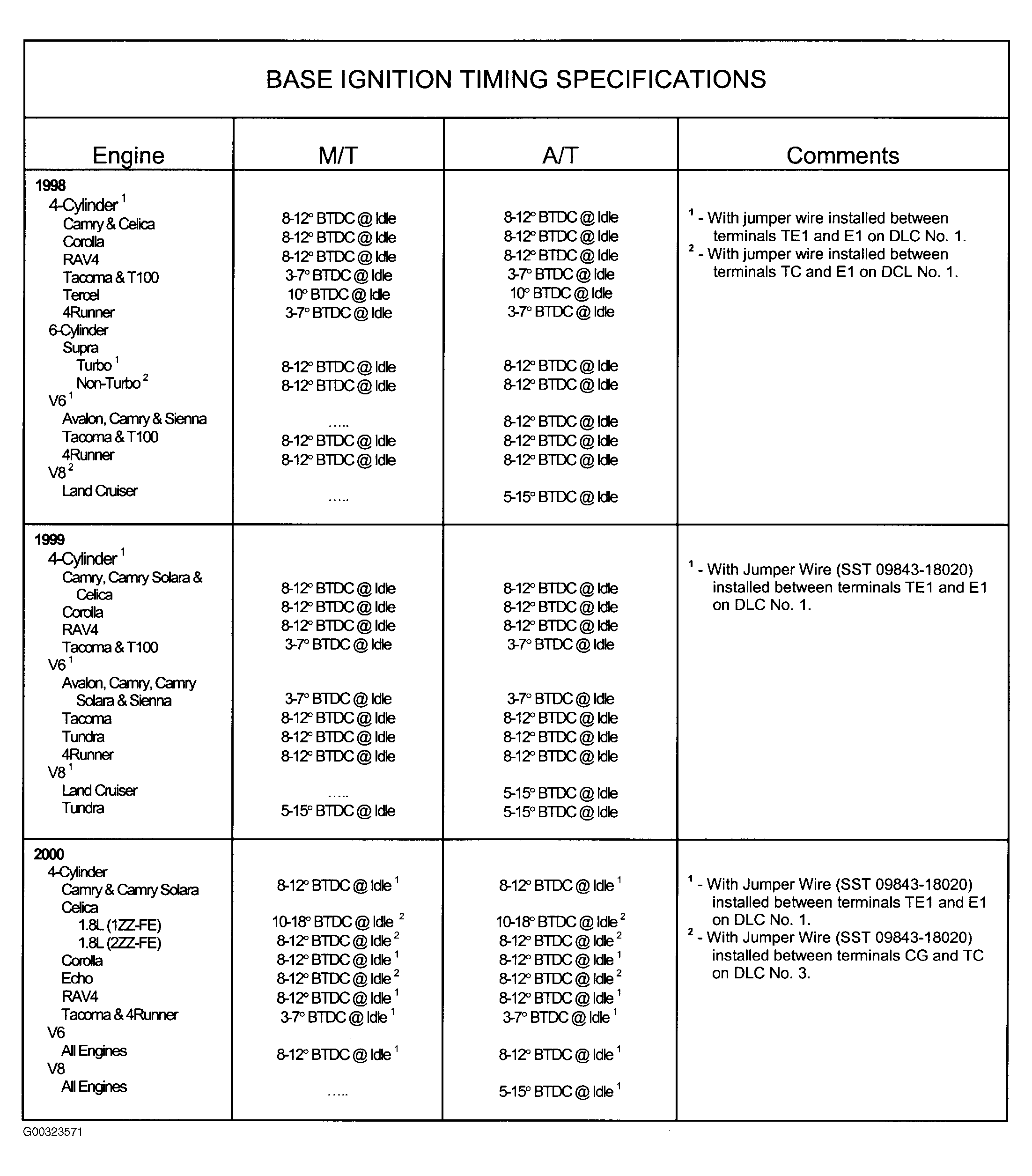

Fig 5:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

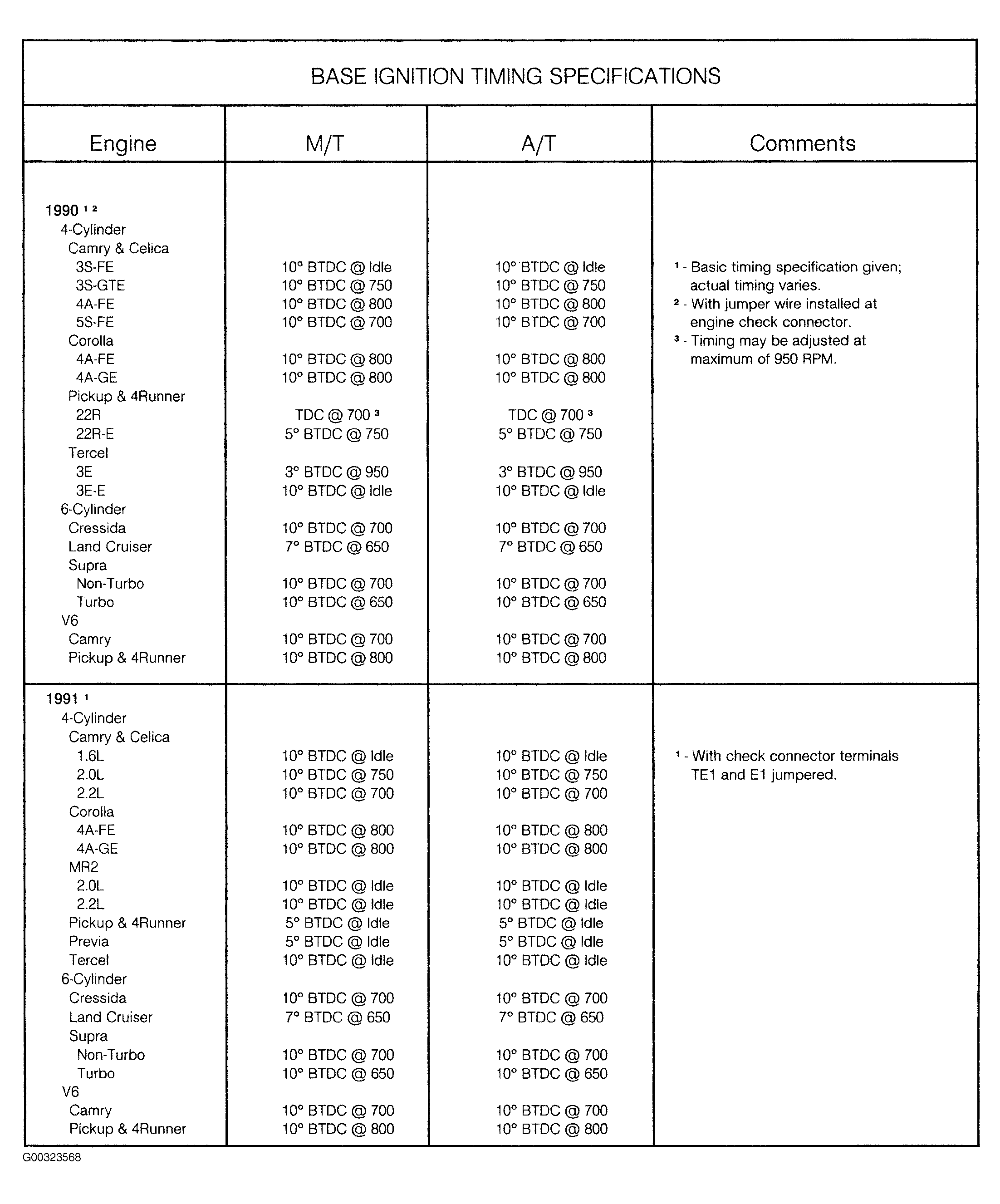

Fig 6:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

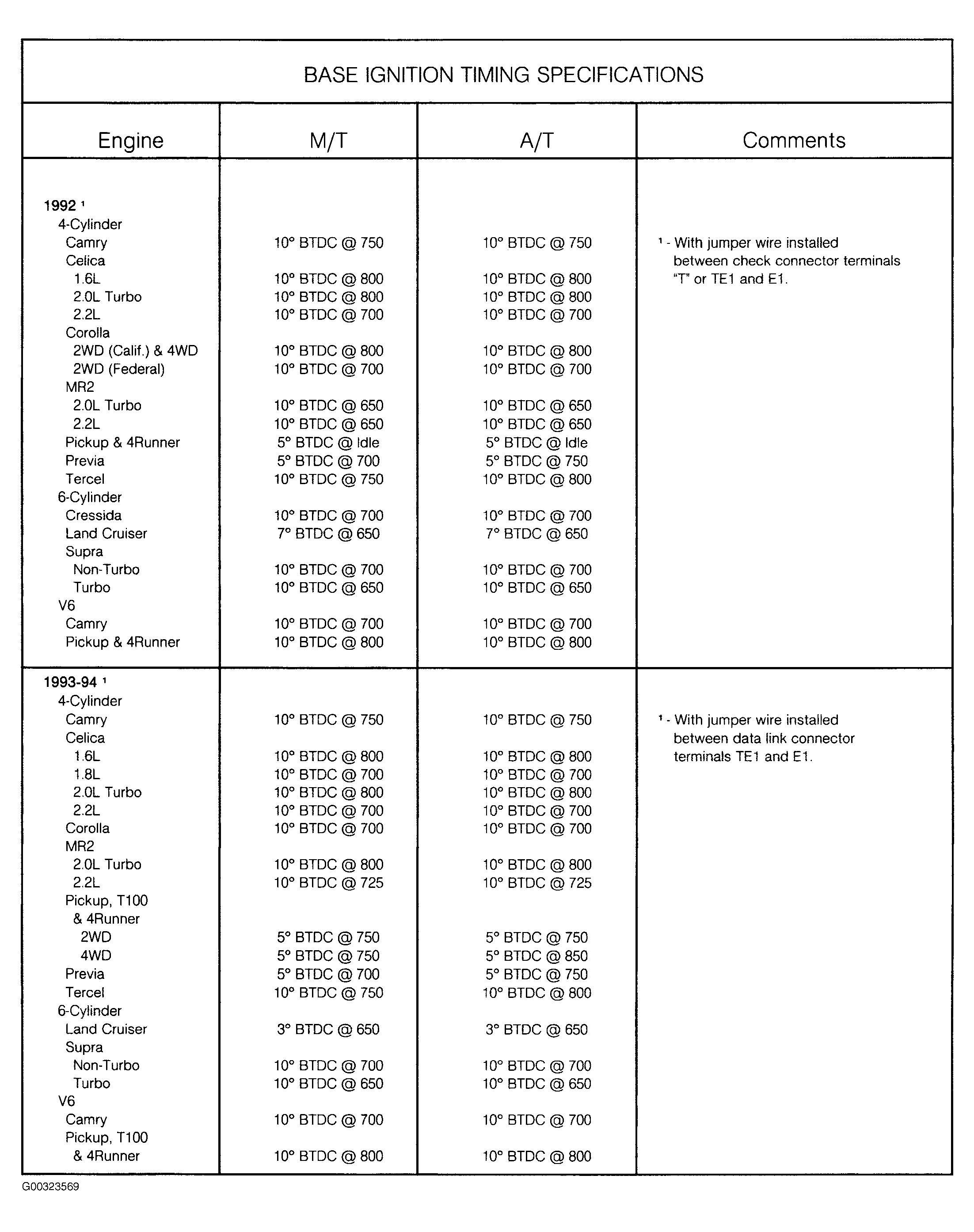

Fig 7:

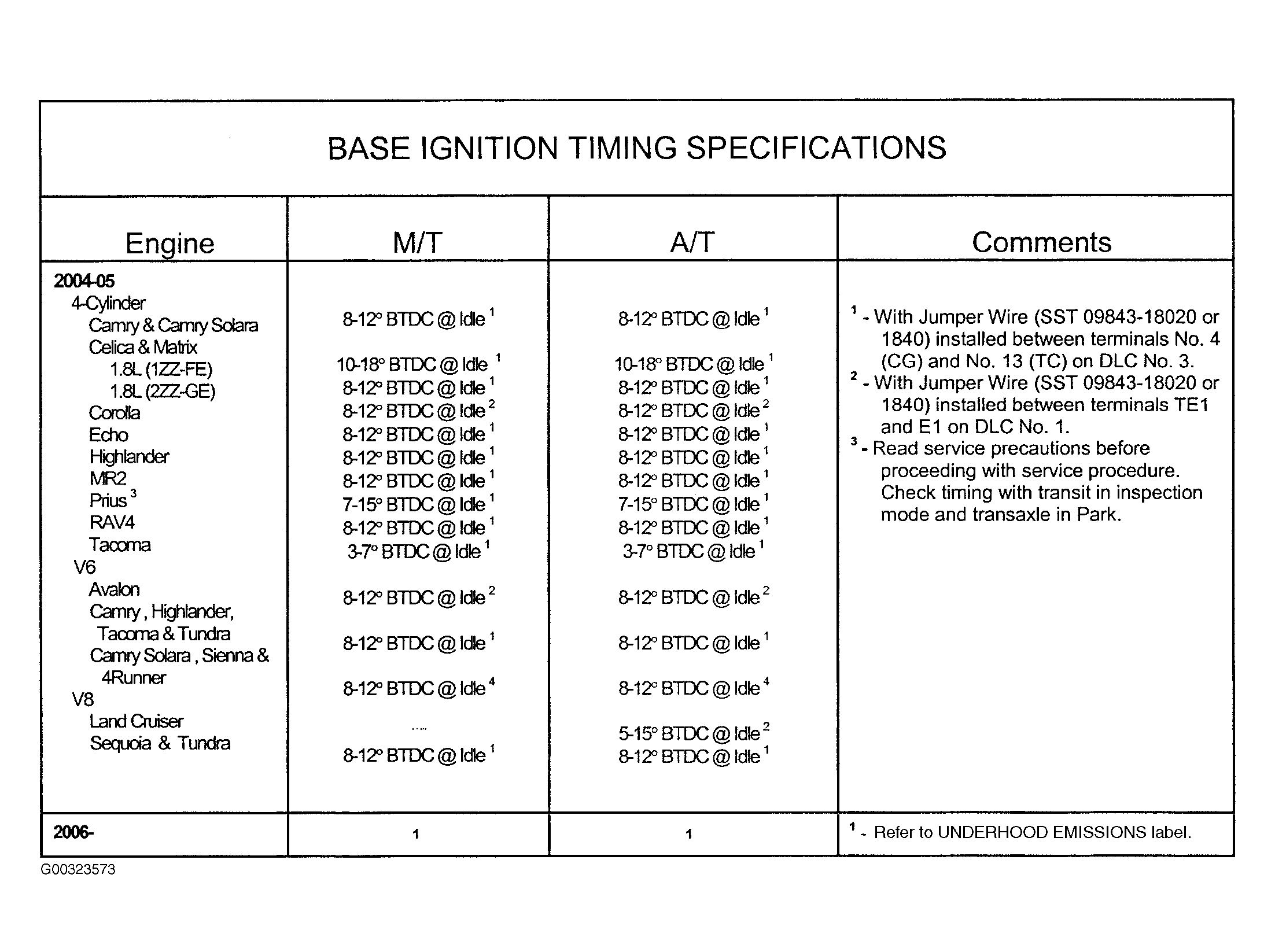

Fig 8:

Fig 9:

Fig 10:

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
