Warning Light and Switch Light

Using an ohmmeter, check the continuity of the terminals for each position. Check terminals 4-6 (warning light) and 3-7 (switch light).

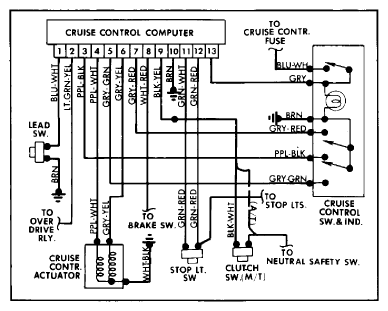

Fig 1: Toyota Cruise Control Wiring Diagram
G09330296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
