Air Suction System: Testing: Starlet

  1. Remove, check, clean and reinstall air filter. Check condition of all hoses and tubes. Disconnect air suction hose from air suction (AS) valve.
  2. Start engine and run at idle speed. Listen to AS valve. A "bubbling" noise should be heard. If system operates properly, test is complete. If not, replace AS valve.

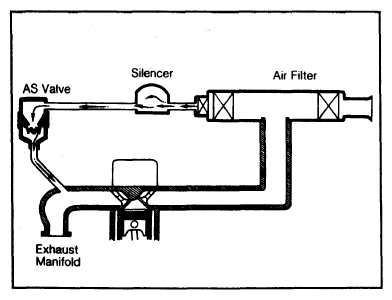

Fig 1: Starlet Air Suction System
G09323343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
