BVSV 1

  1. Drain coolant from radiator into container. Remove BVSV 1 and immerse in coolant. Using ice, lower coolant temperature to below 14°F (-10°C). Check that air flows from pipe "J" to pipe "L". See Fig 1.
  2. Heat coolant to above 39°F (4°C). Check that air flows from pipe "J" to pipe "K".

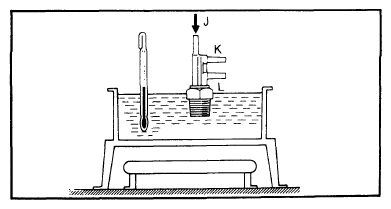

    Fig 1: Bimetal Vacuum Switching Valve 1 & 2 Test
    G09323377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Supra models only.
