Corolla & Tercel

Blow air through each side of valve(s). On corolla and VTV 1 of Tercel, air should pass freely from side "B" to "A", but should pass with difficulty from side "A" to side "B". See Fig 1. On VTV 2 of Tercel, air should pass with difficulty from both sides.

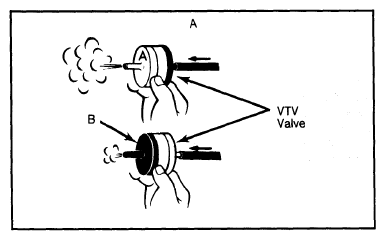

Fig 1: Vacuum Transmitting Valve Test

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
