Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|

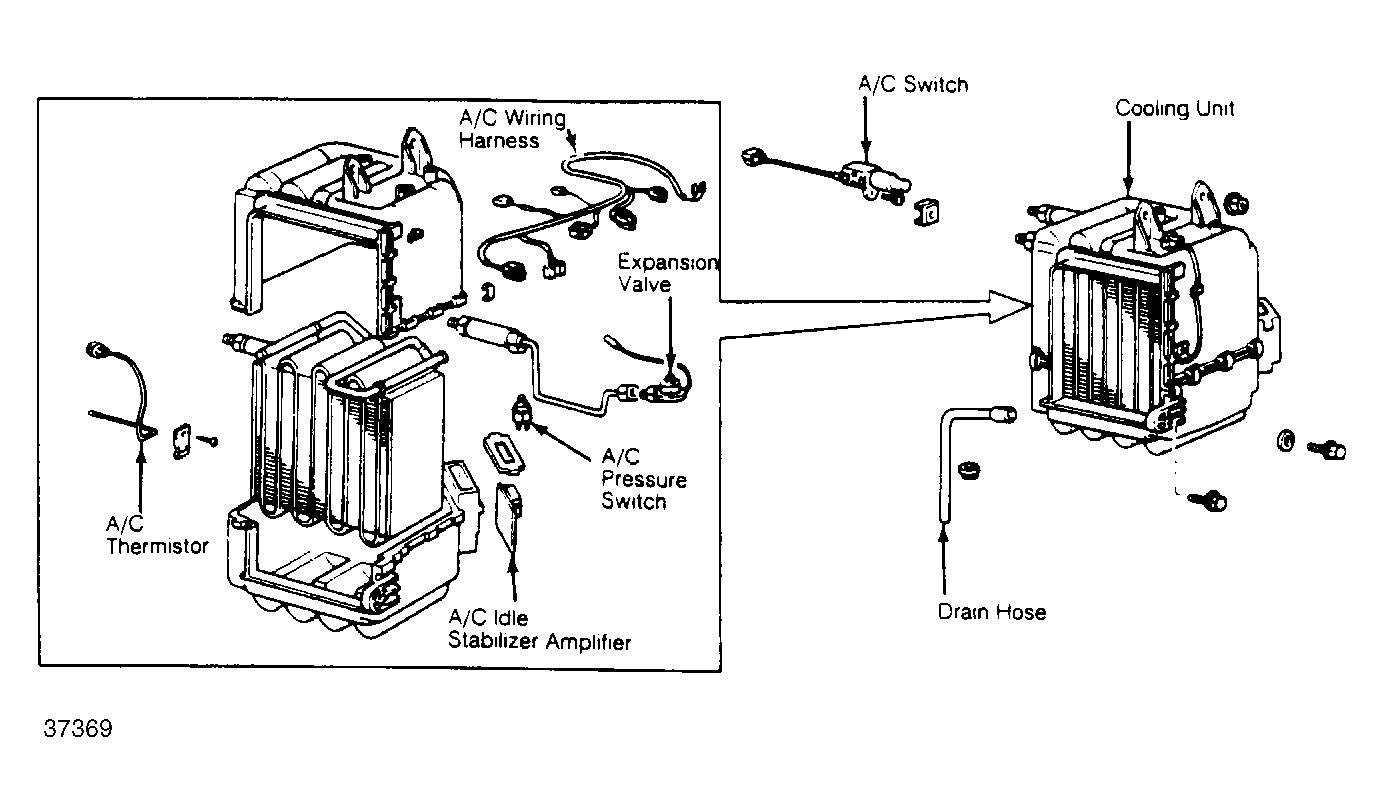

| A/C Idle Stabilizer Amplifier | Attached to bottom of cooling unit, under dash. See Figure. |
| A/C Thermistor | On cooling unit, under dash. See Figure. |

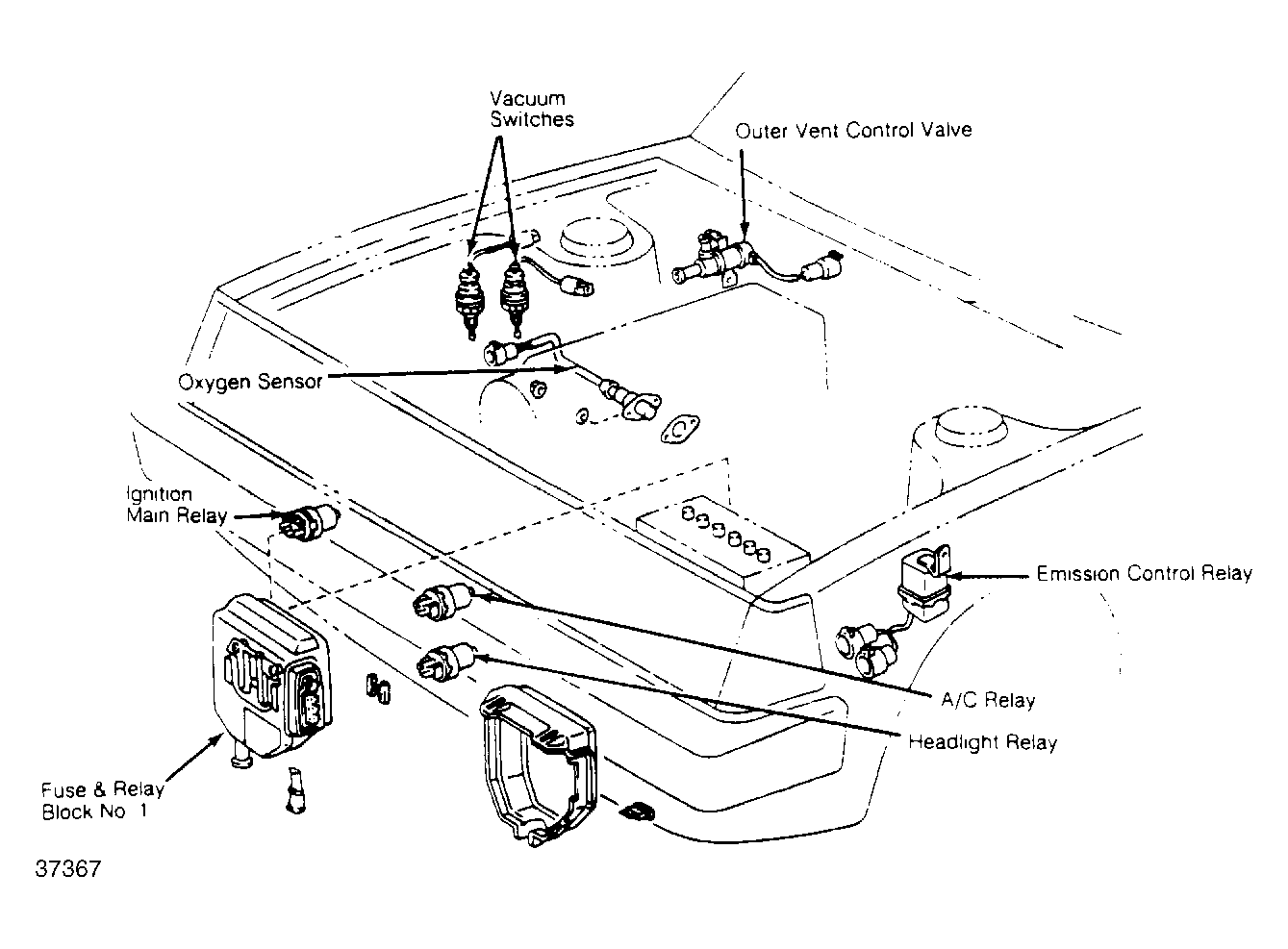

| Fuse & Relay Block No. 1 | Behind battery. See Figure. |
| Fuse & Relay Block No. 2 | Behind left kick panel. See Figure. |
| Fusible Links | At battery positive terminal. |
| Hazard/Turn Signal Flasher | Under left side of dash. See Figure. |
