Wiring Diagrams — 1983 Toyota Tercel Base Service Manual ~ LEMON Manuals

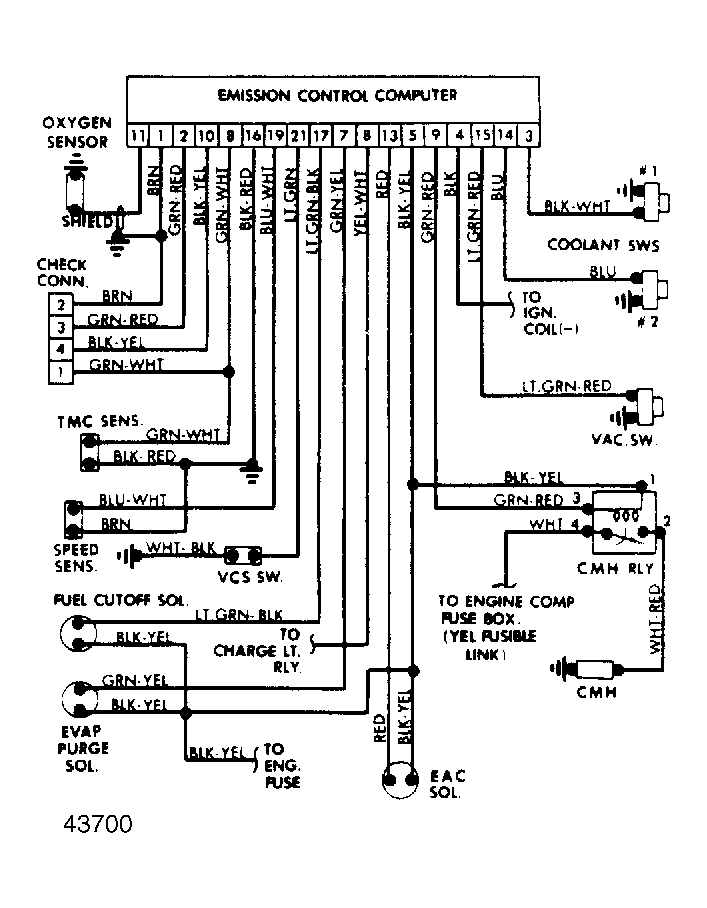

Fig 1: Carbureted Celica Computer Controlled Emission System Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

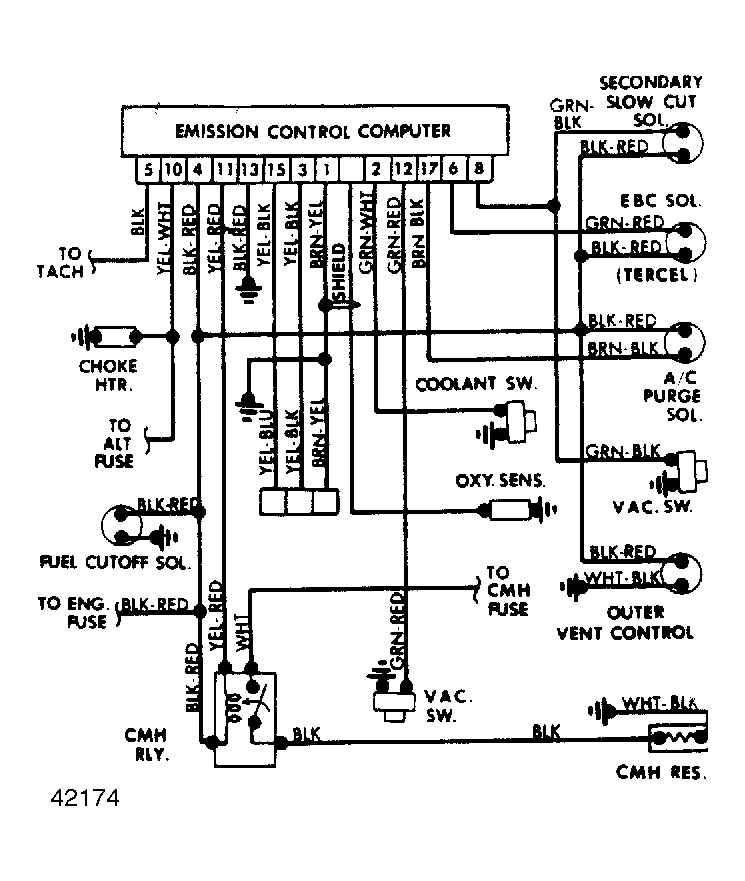

Fig 2: Corolla Computer Controlled Emission System Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

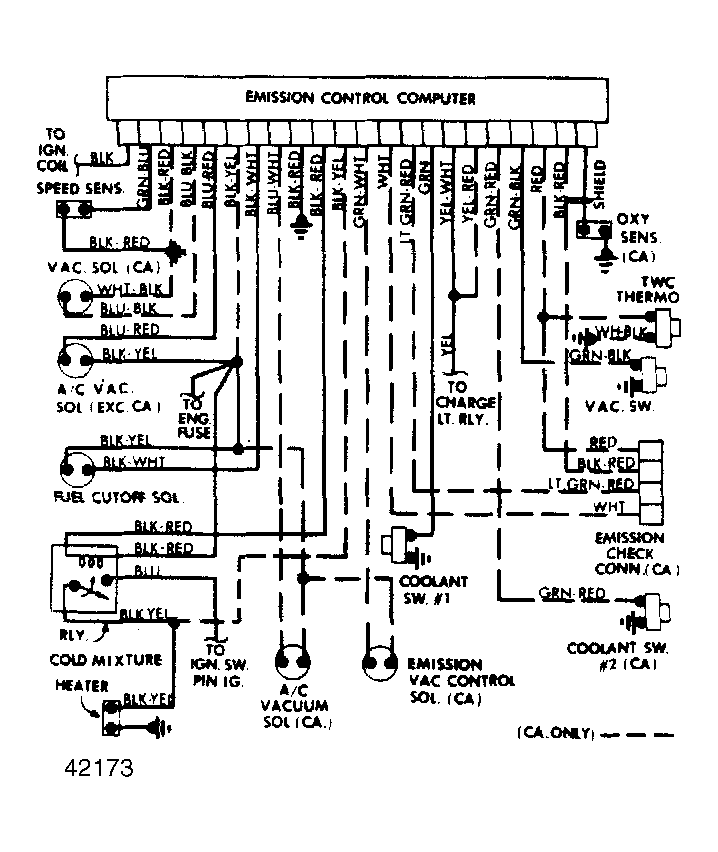

Fig 3: Land Cruiser Computer Controlled Emission System Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

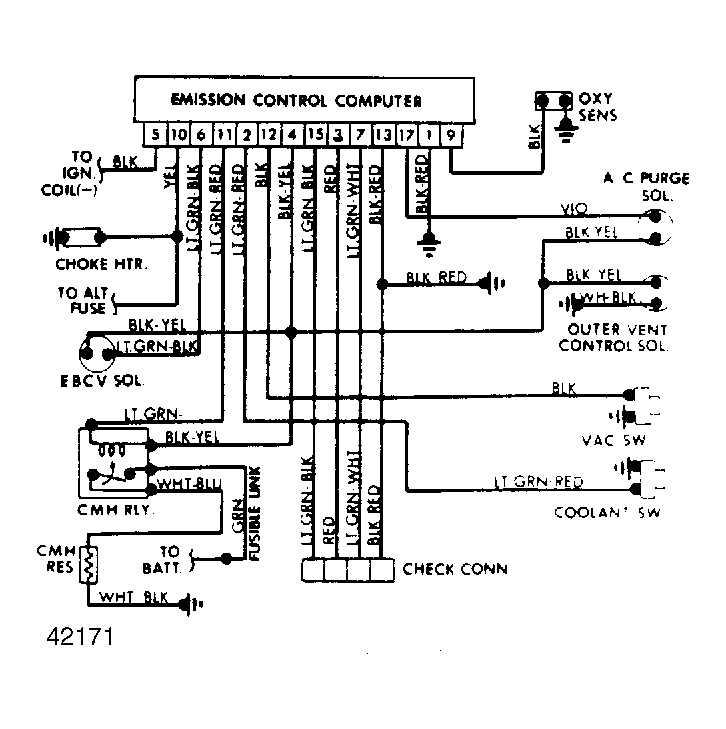

Fig 4: Pickup Computer Controlled Emission System Wiring Diagram

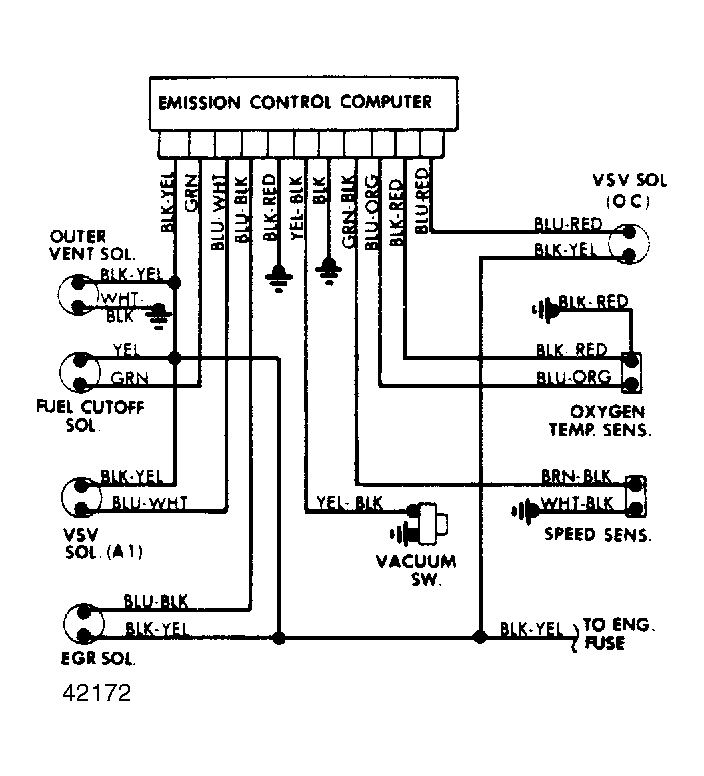

Fig 5: Tercel Computer Controlled Emission System Wiring Diagram
