Clearing Trouble Codes

After any repairs are performed, clear ECU memory of all stored trouble codes. To clear memory, turn ignition off and remove appropriate fuse from fuse panel for 30 seconds. Cancellation can also be done by removing the battery negative terminal, but in this case other memory systems (radio, clock, etc.) will also be canceled out. See Figure.

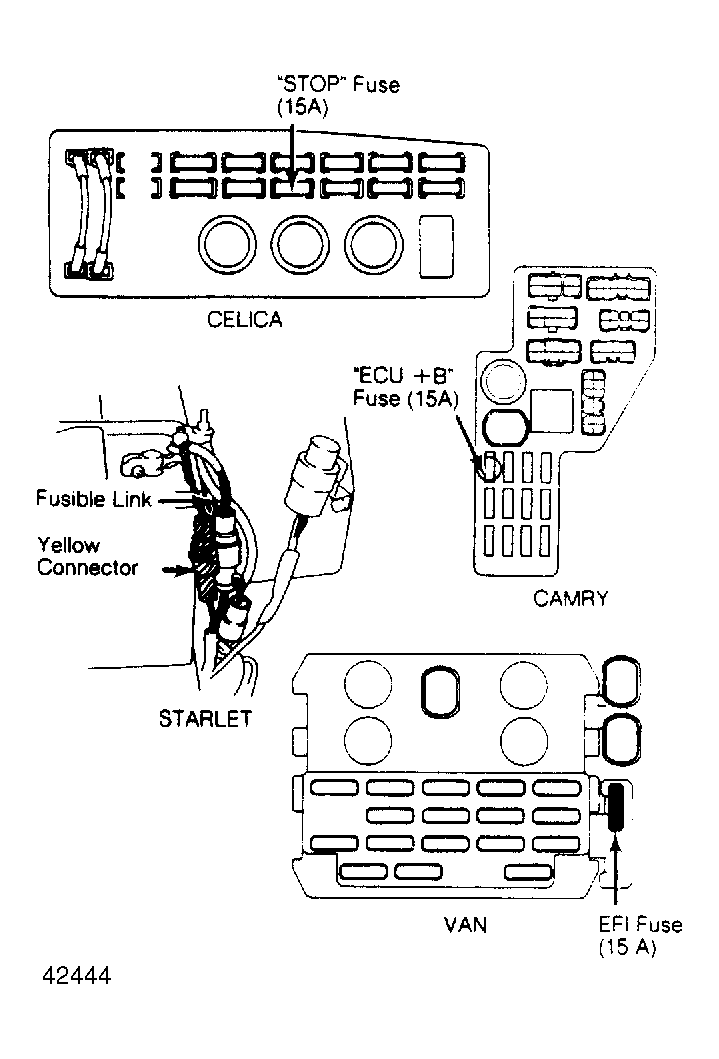

Fig 1: Clearing Trouble Codes from ECU Memory
G42444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: The lower the ambient temperature, the longer the fuse or fusible link must be left out.
