Diagnostic Circuit Check

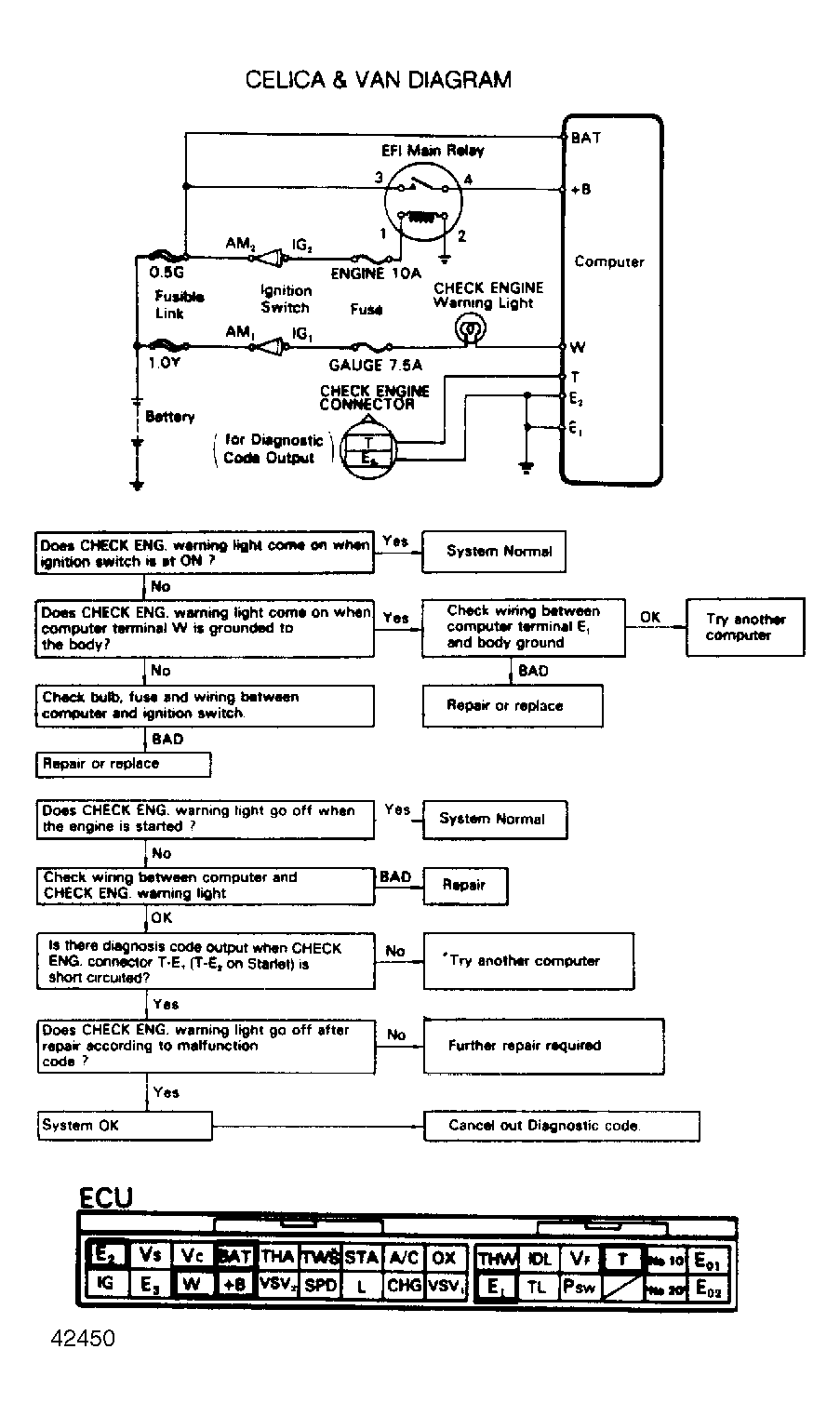

Fig 1: Diagnostic Circuit Check & Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
