EFI Circuit Check

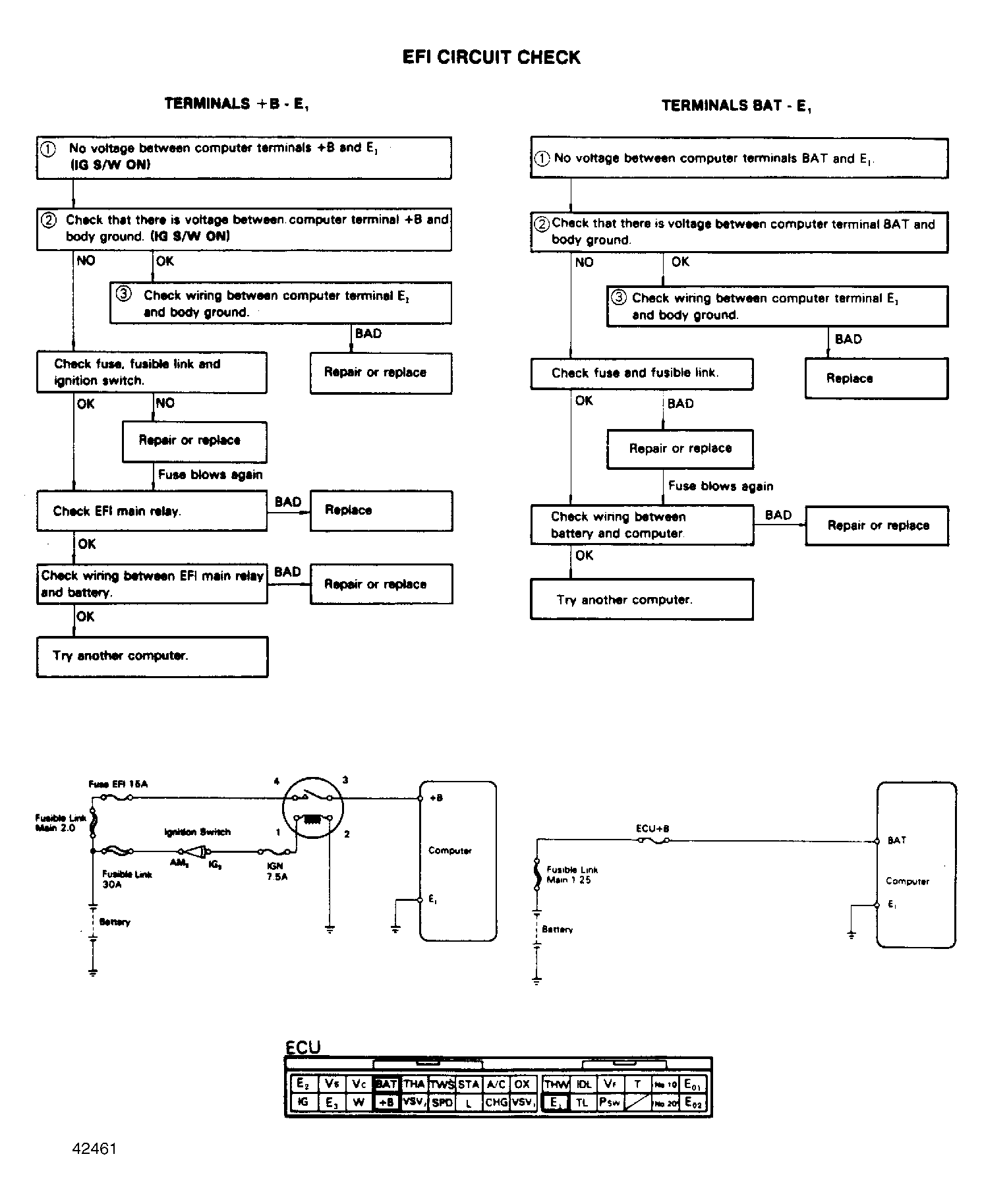

Fig 1: EFI Circuit Check, Terminals + B - E1 & BAT - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
