Trouble Code 6 - Ignition Signal

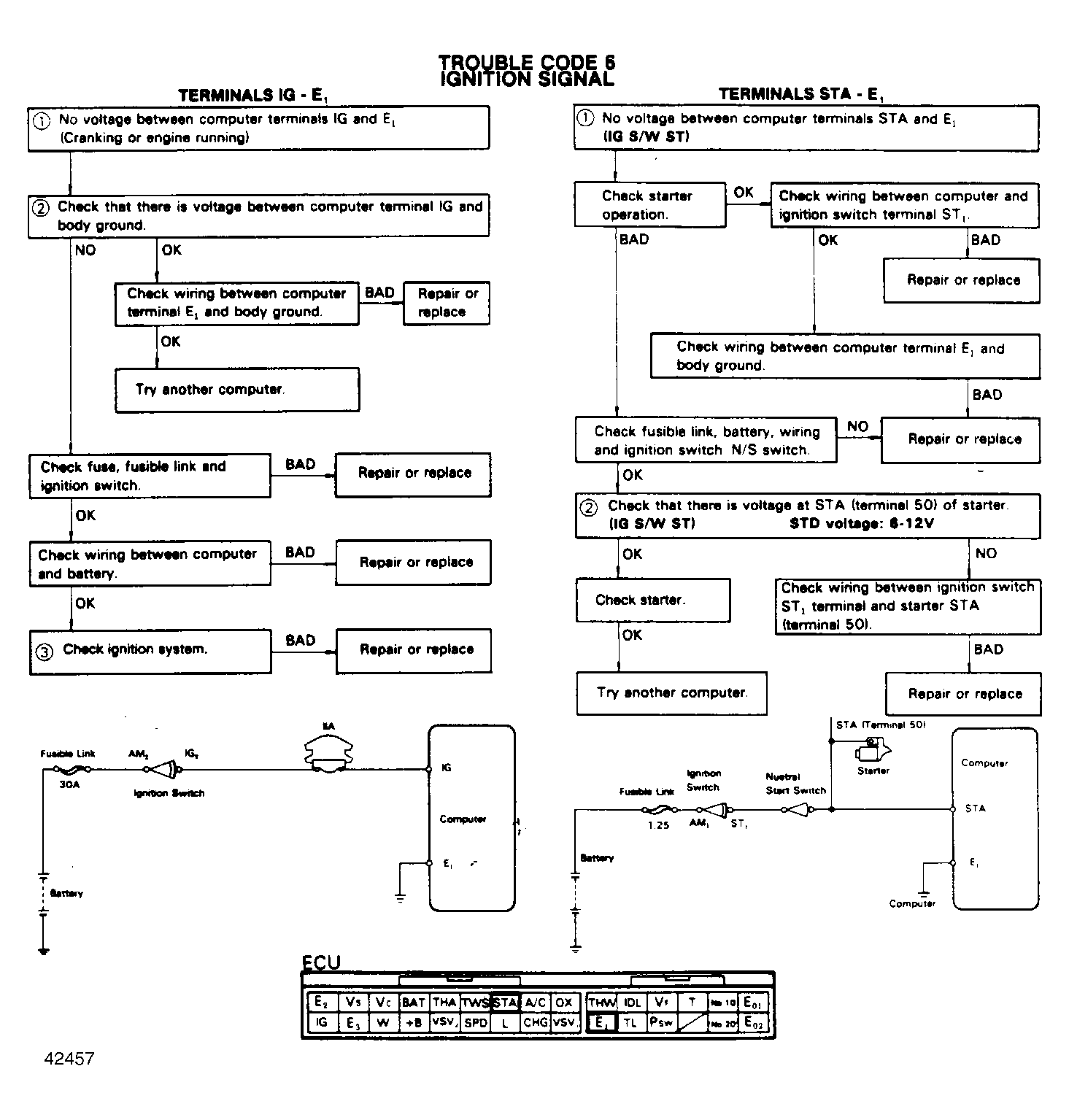

Fig 1: Trouble Code 6, Terminals IG - E1 & Terminals STA - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
