Trouble Code 7 - Throttle Position Sensor & Circuit

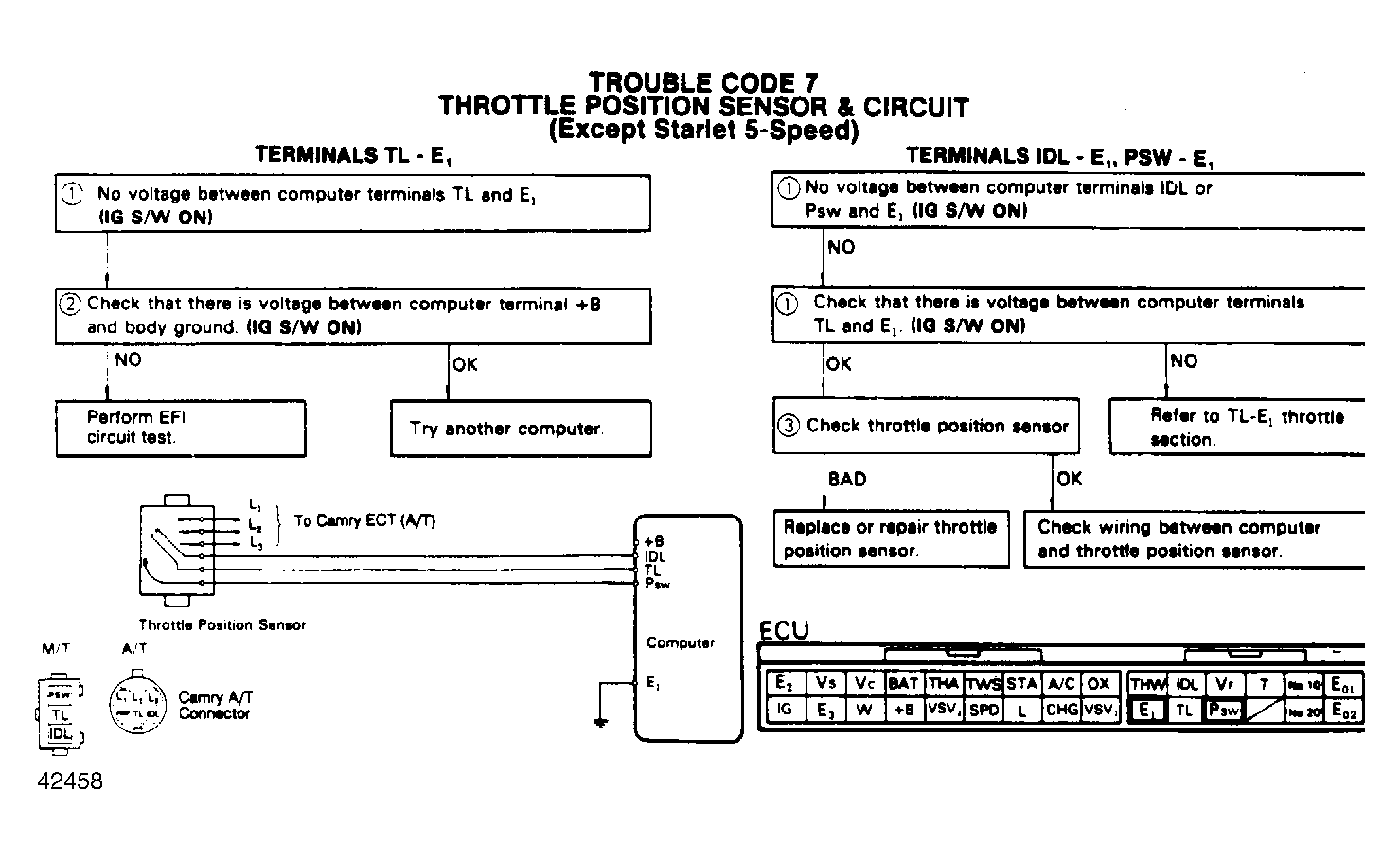

Fig 1: Trouble Code 7, Terminals TL - E1 & IDL - E1, PSW - E1
G42458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
