Wiring Diagrams

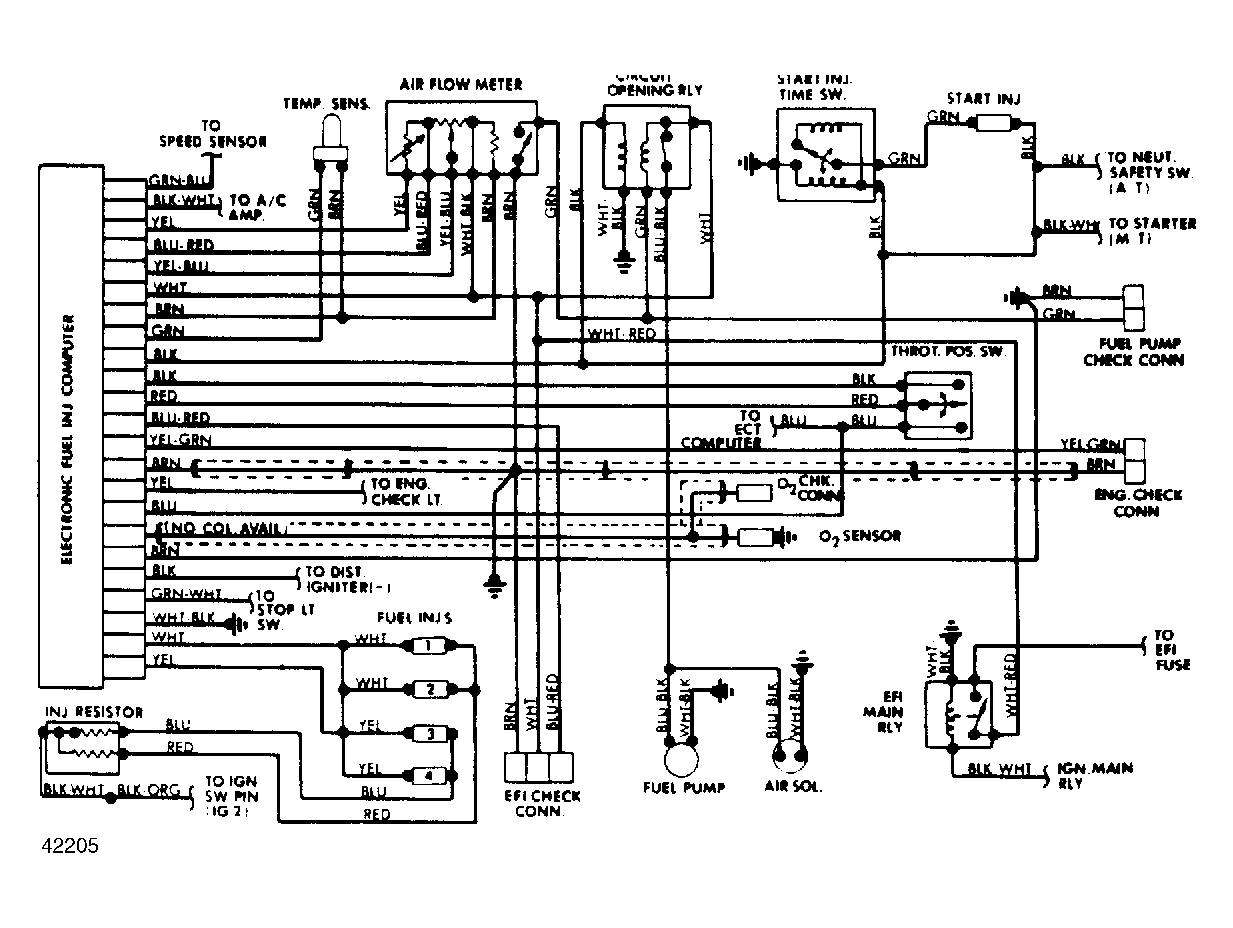

Fig 1: ECS/EFI System Wiring Diagram (Camry)
G42205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: ECS/EFI System Wiring Diagram (Celica, 4Runner & Pickup)
G42207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

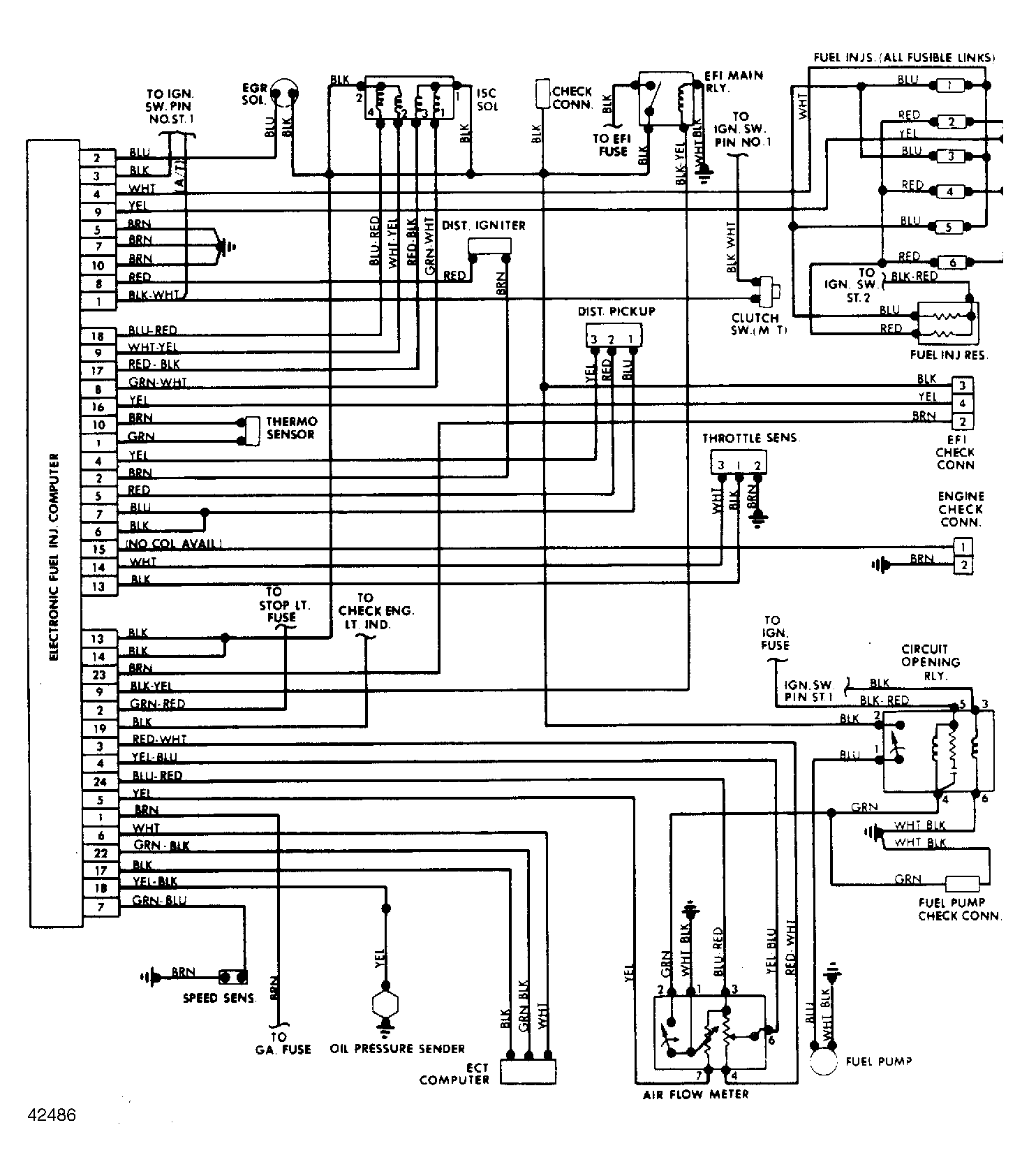

Fig 3: TCCS/EFI System Wiring Diagram (Cressida)
G42486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

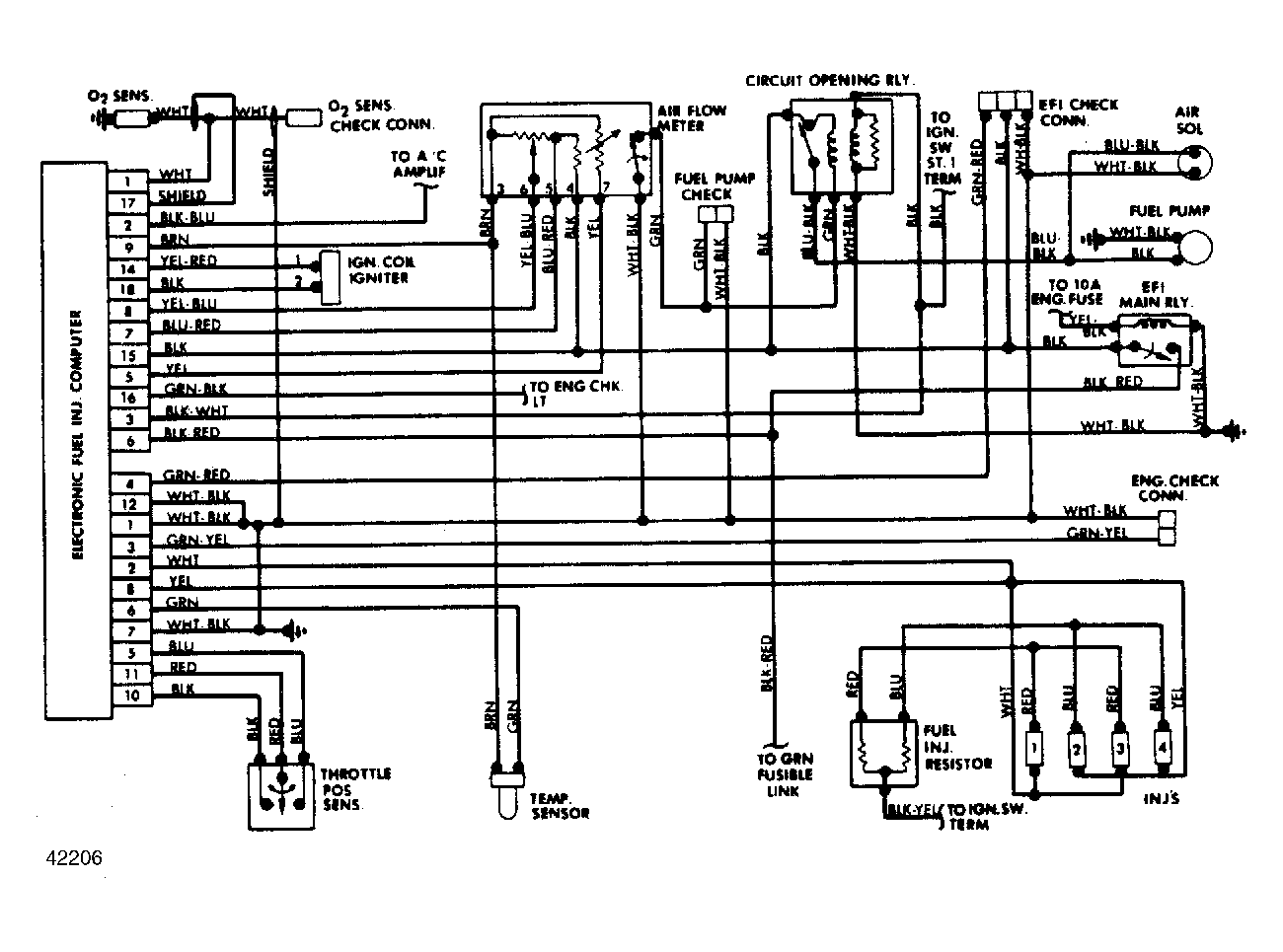

Fig 4: ECS/EFI System Wiring Diagram (Starlet)
G42206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

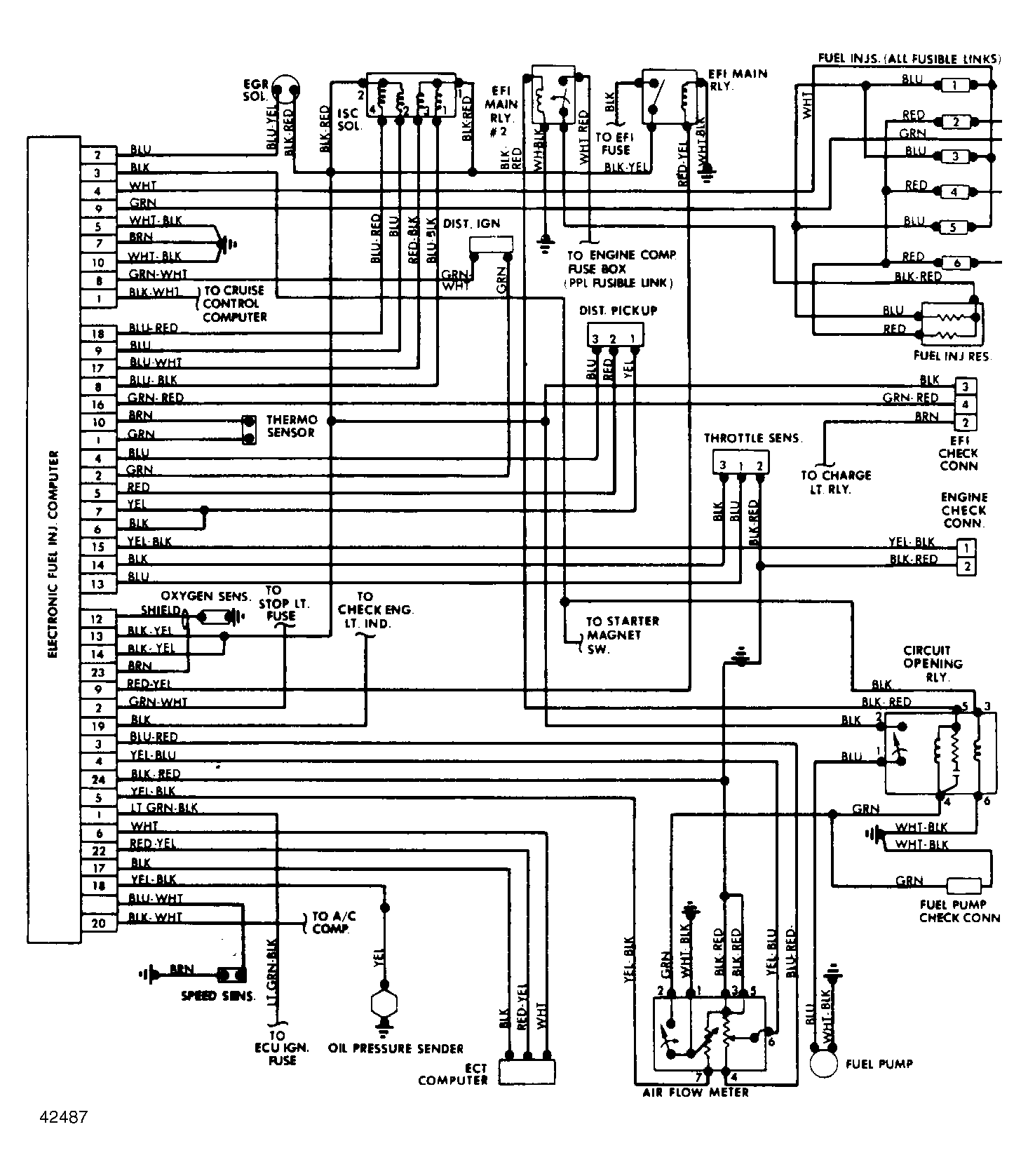

Fig 5: TCCS/EFI System Wiring Diagram (Supra)
G42487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: ECS/EFI System Wiring Diagram (Van)
G42473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
