Trouble Code 10 Blinks - Ignition & Starter Circuit

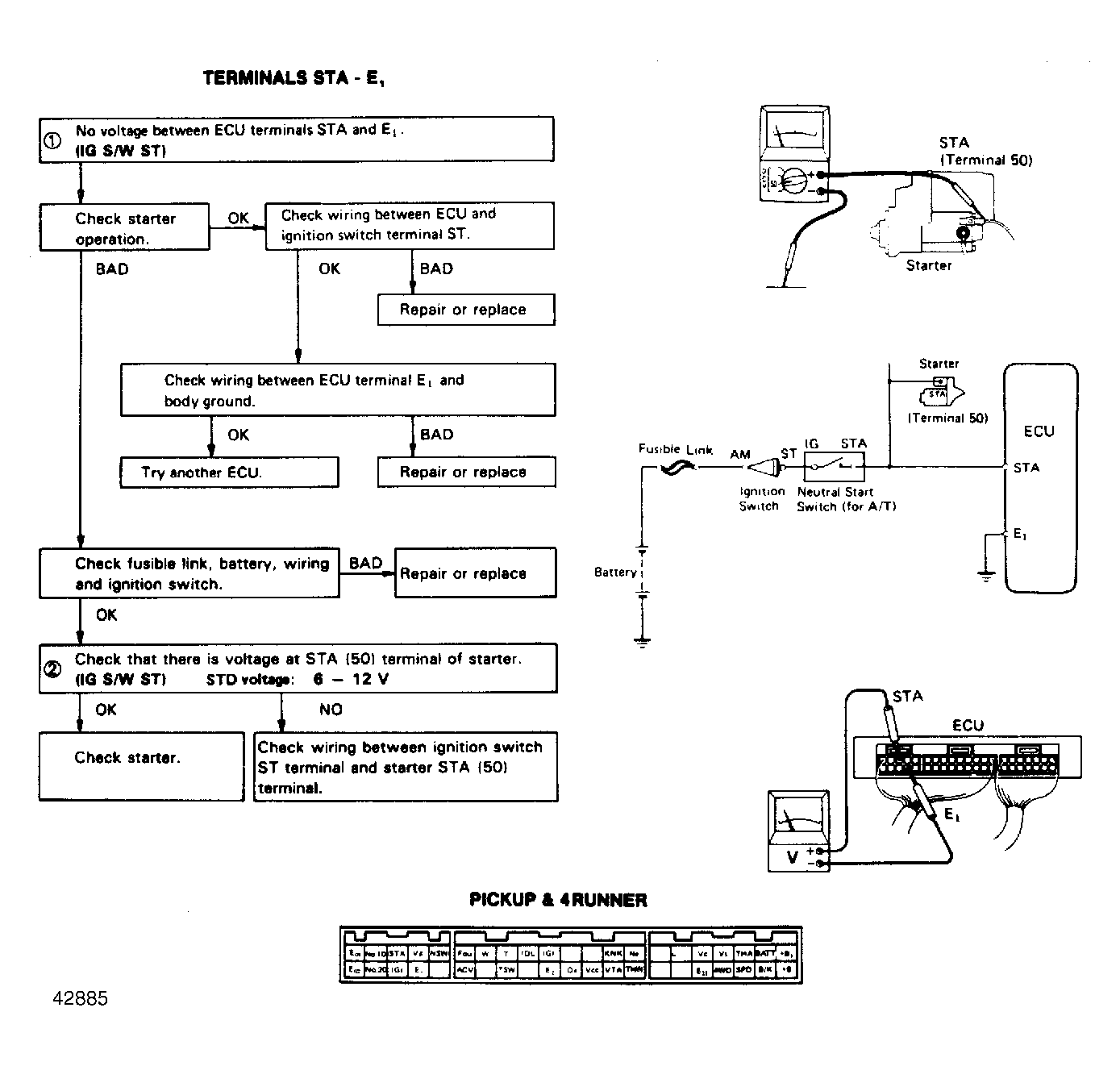

Fig 1: Terminals STA - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
