Trouble Code 2 Blinks - Airflow Meter & Circuit: Notes

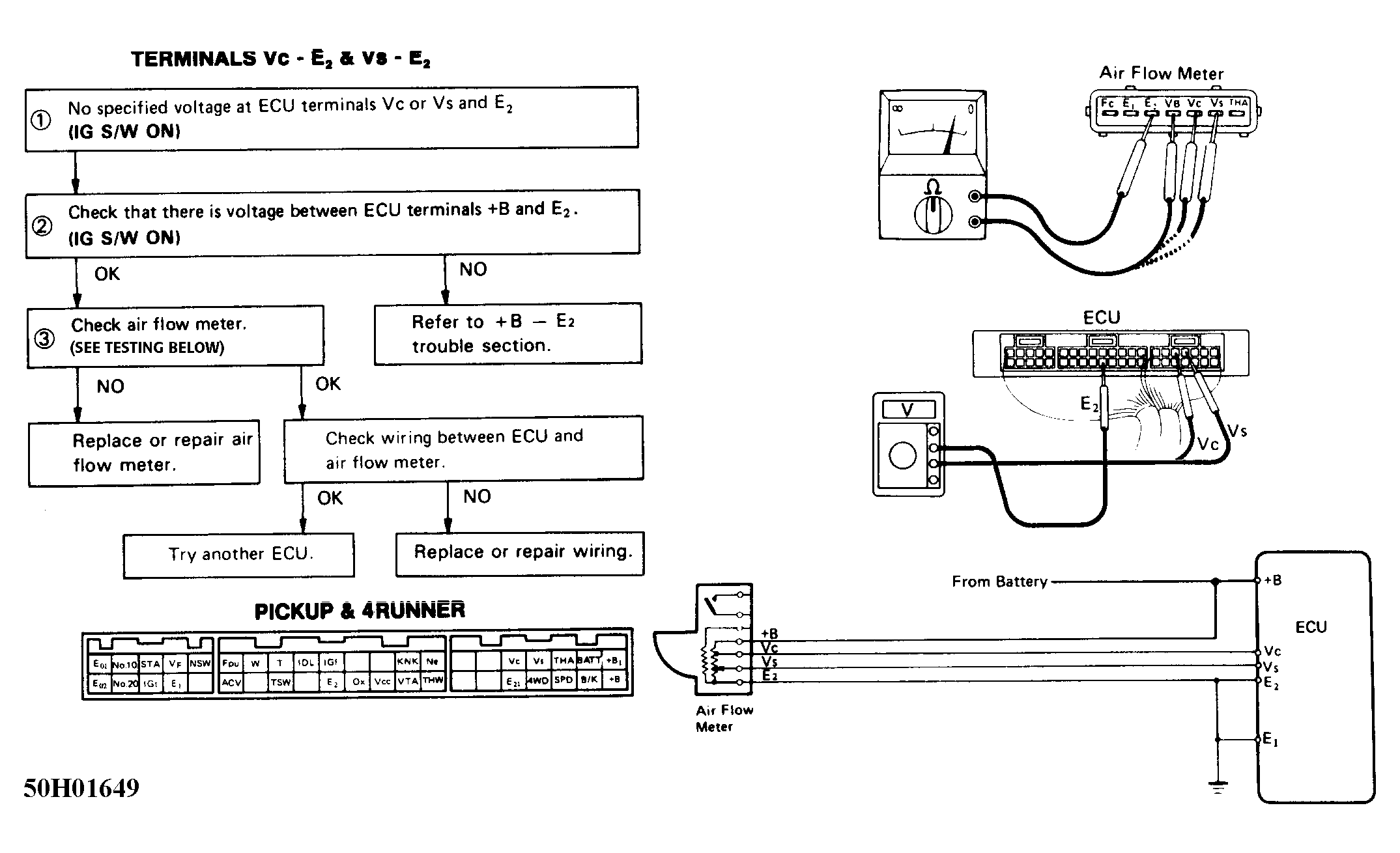

Fig 1: Terminals Vc - E2 & Vs - E2 See Text For Airflow Meter Testing
G50H01649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
