Trouble Code 7 Blinks - TPS Sensor & Circuit

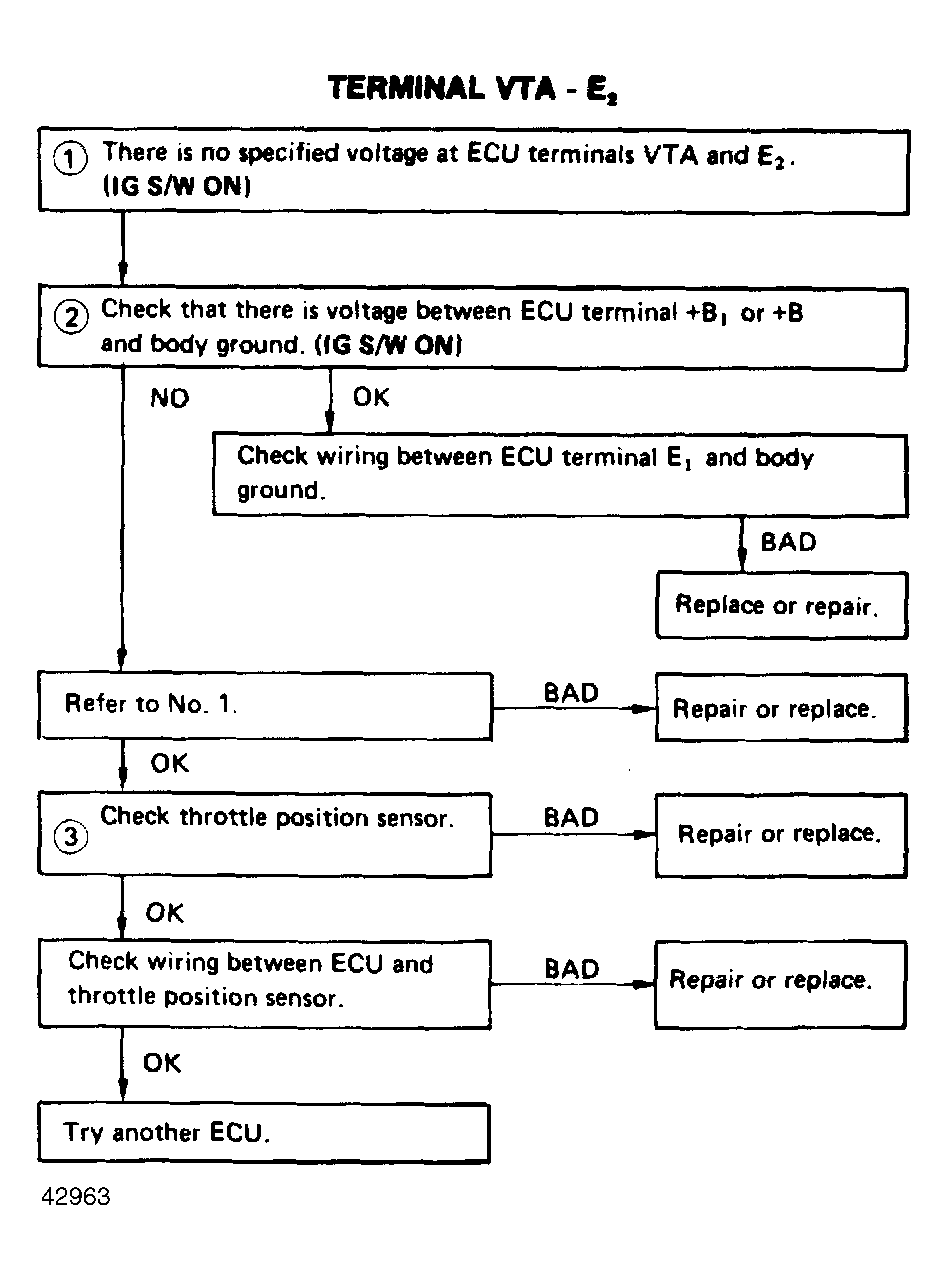

Fig 1: Terminal VTA - E2
G42963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

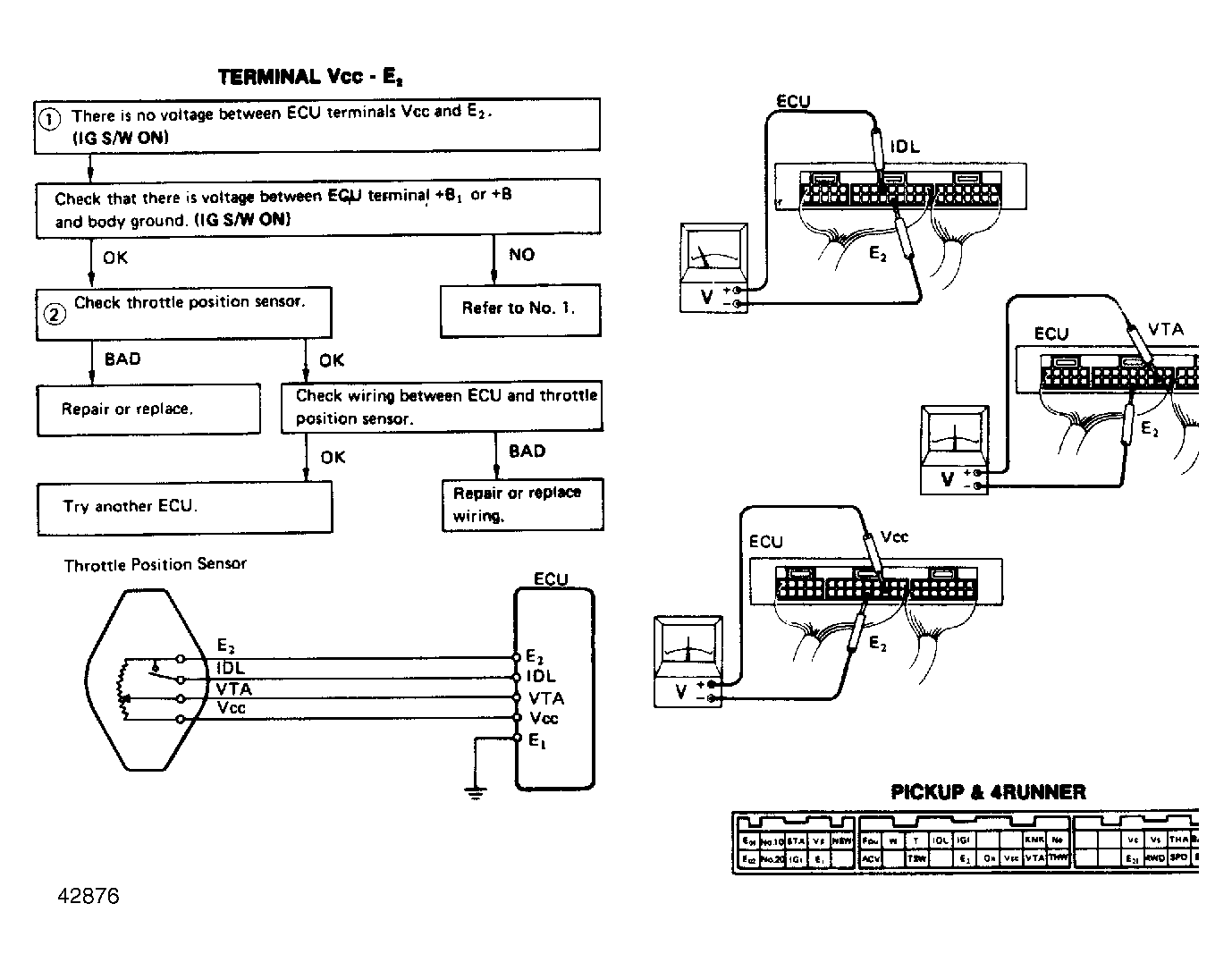

Fig 2: Terminal Vcc - E2
G42876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
