Trouble Code 10 Blinks Main Relay & Circuit

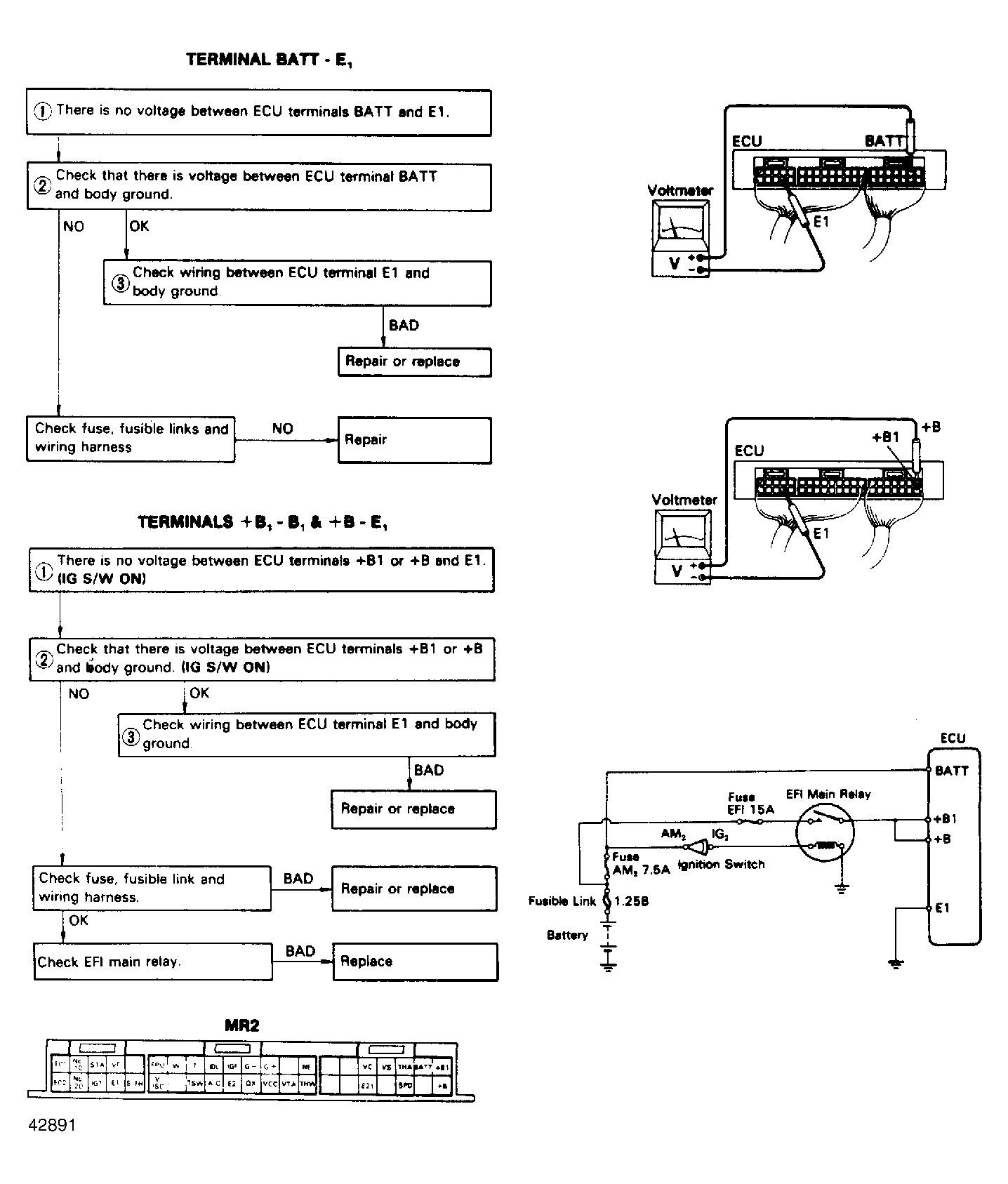

Fig 1: Terminal BATT - E1 & Terminals +B1 - B1 & +B - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
