Trouble Code 5 Blinks Oxygen Sensor
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Trouble Code 5 Blinks Oxygen Sensor

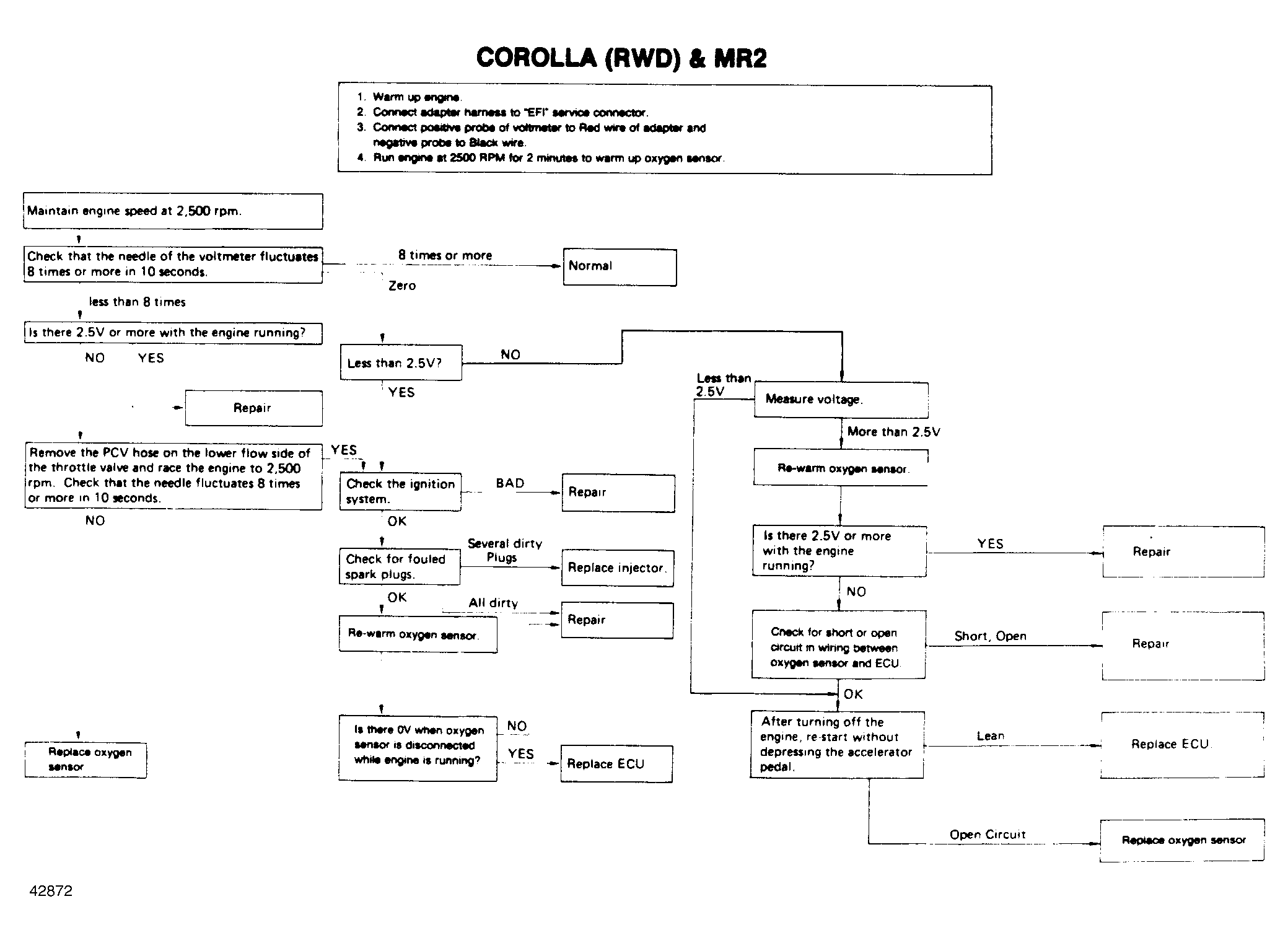

Fig 1: Trouble Code 5 Blinks Oxygen Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
