Trouble Code 6 Blinks Rpm Signal

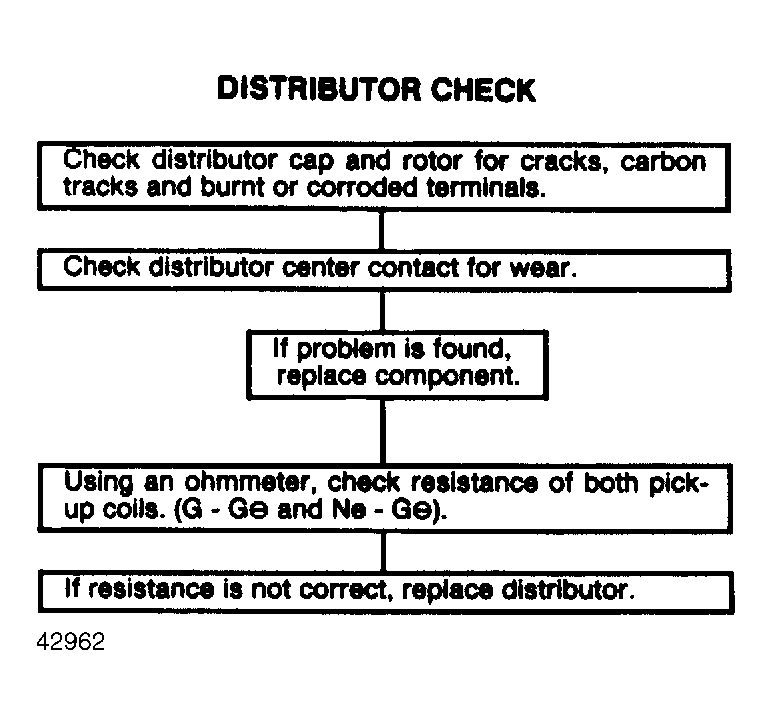

Fig 1: Distributor Check
G42873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

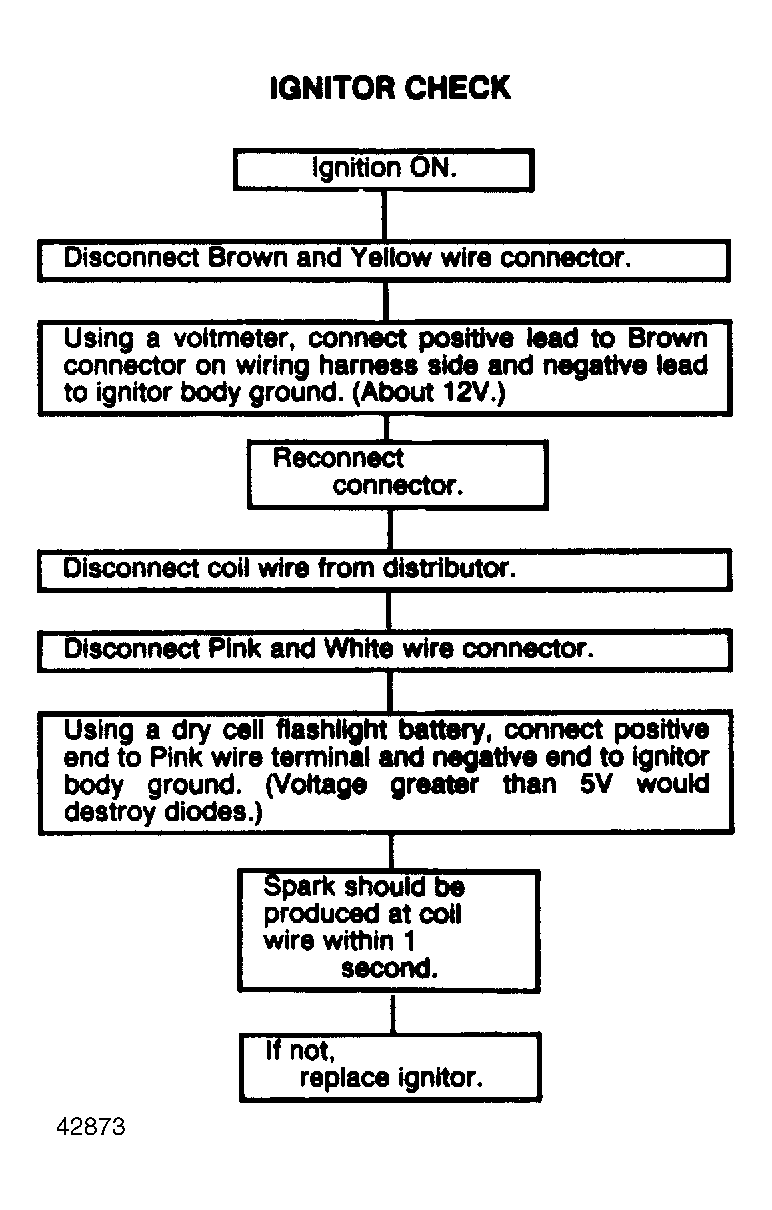

Fig 2: Ignitor Check
G42962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
