Trouble Code 7 Blinks TPS Sensor & Circuit

Fig 1: Terminal Vcc - E2
G42964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

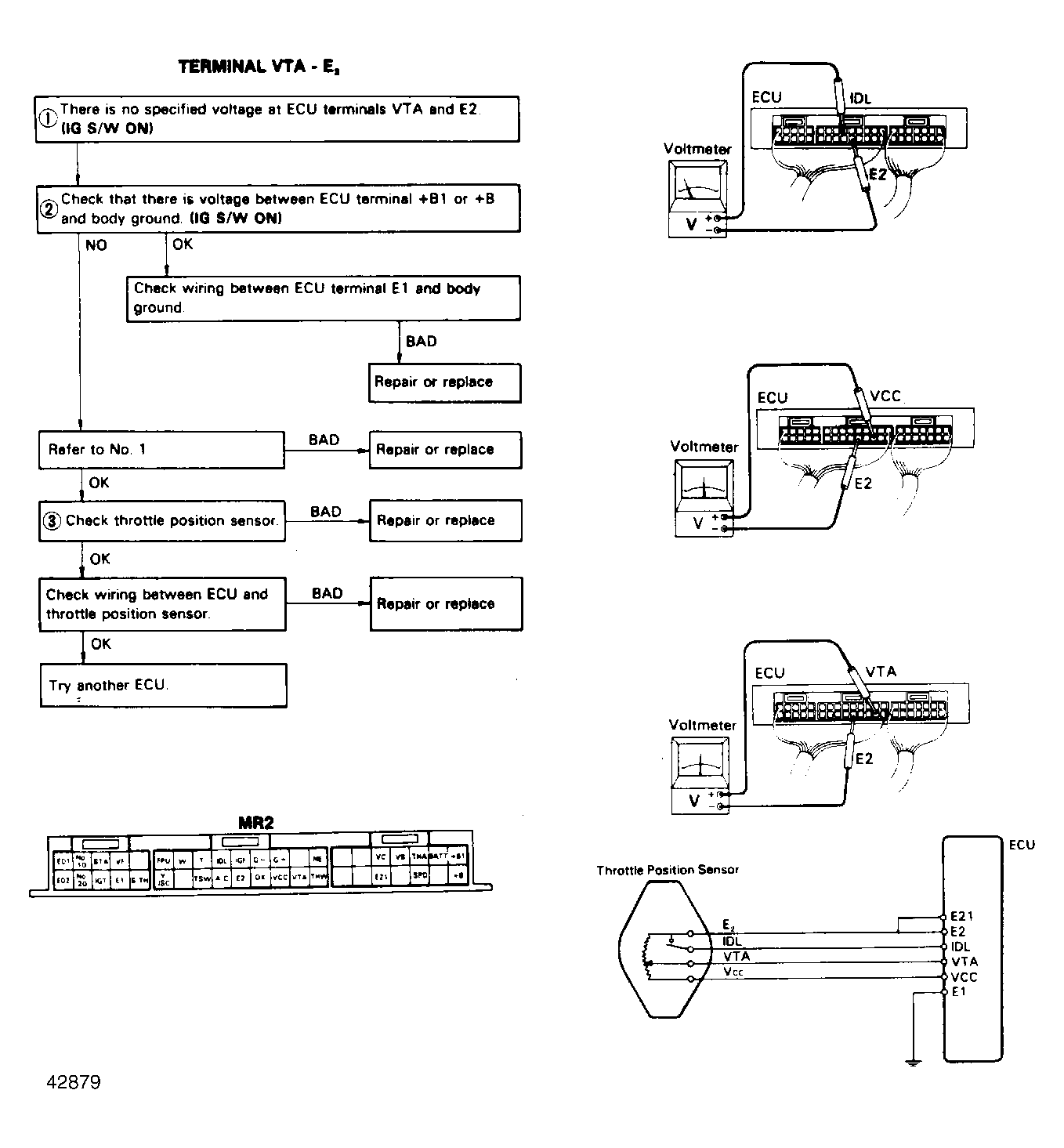

Fig 2: Terminal VTA - E2
G42879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
