Miscellaneous Components

MISCELLANEOUS COMPONENTS LOCATION

Component Location

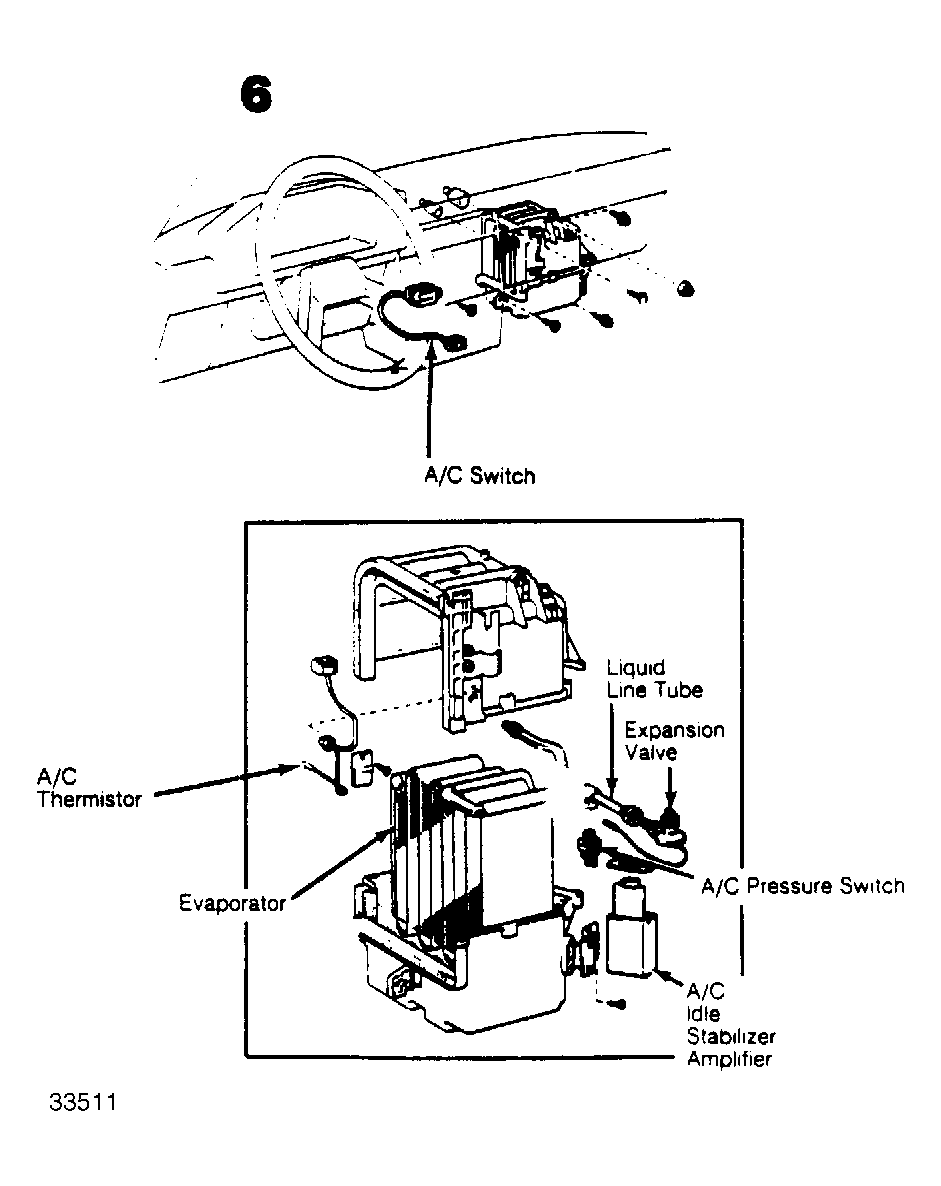

A/C Idle Stabilizer Amplifier On side of evaporator housing. See Figure.
A/C Thermistor On evaporator housing. See Figure.

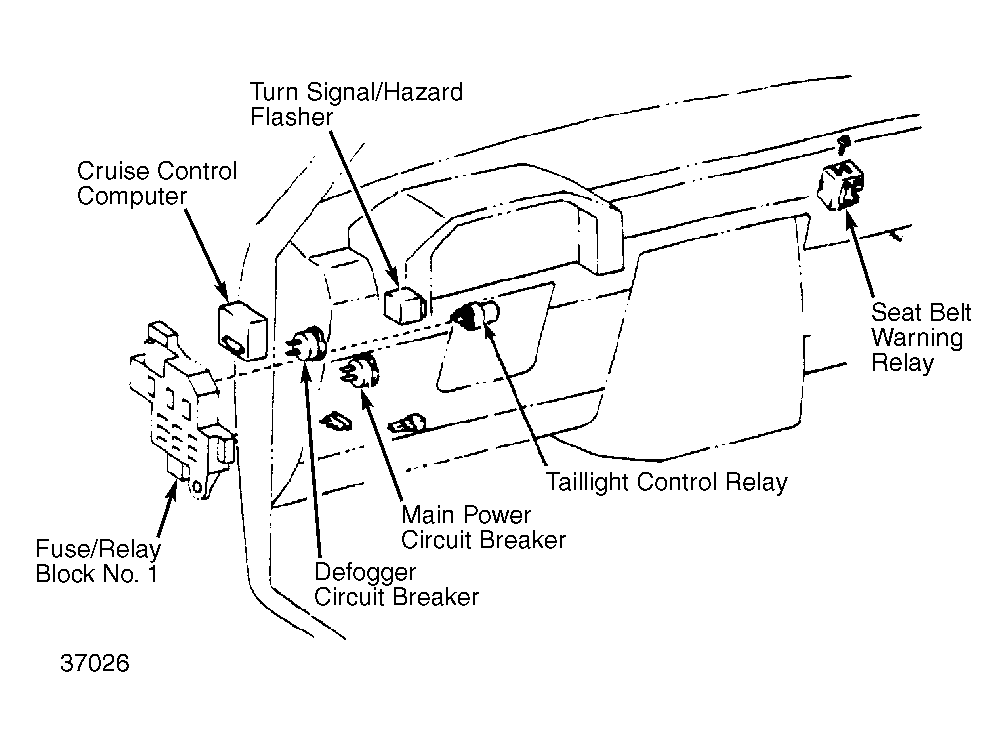

Defogger Circuit Breaker On fuse/relay panel No. 2. See Figure.

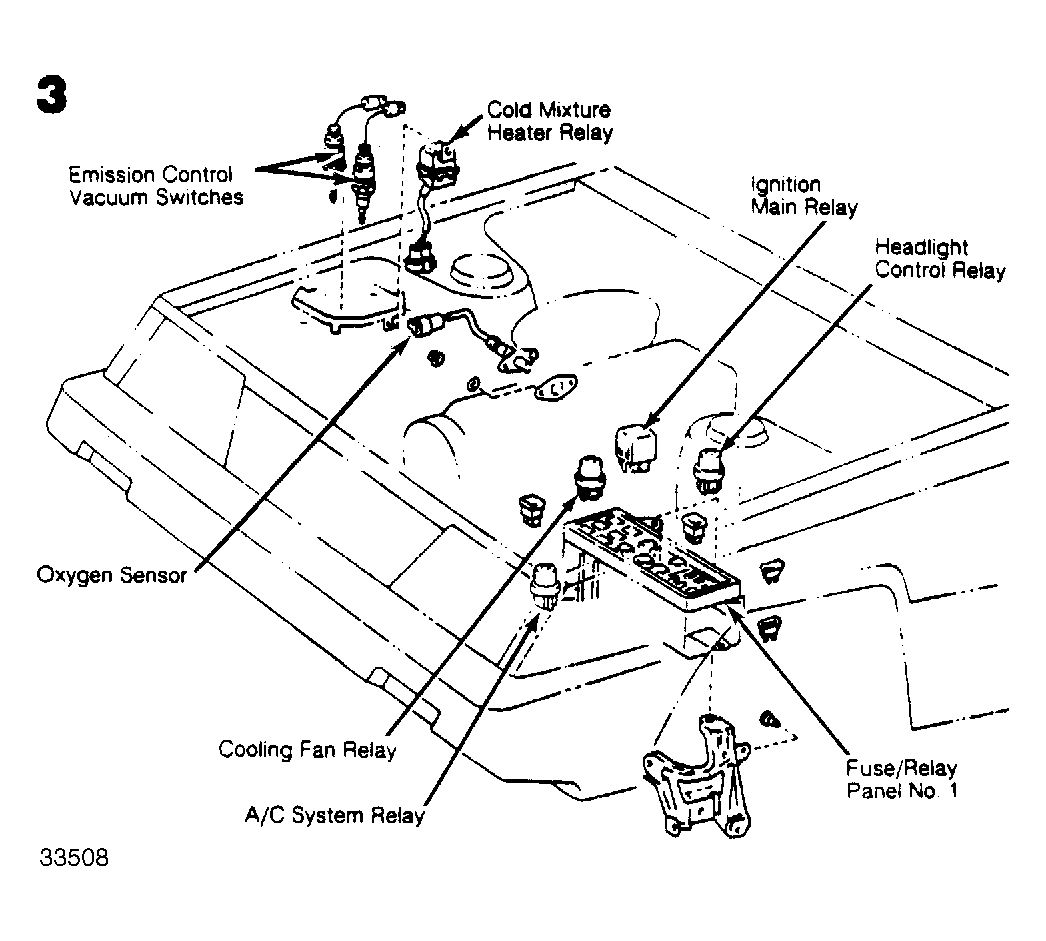

Fuse/Relay Panel No. 1 On left shock tower in engine compartment. See Figure.
Fuse/Relay Panel No. 2 Behind left kick panel. See Figure.

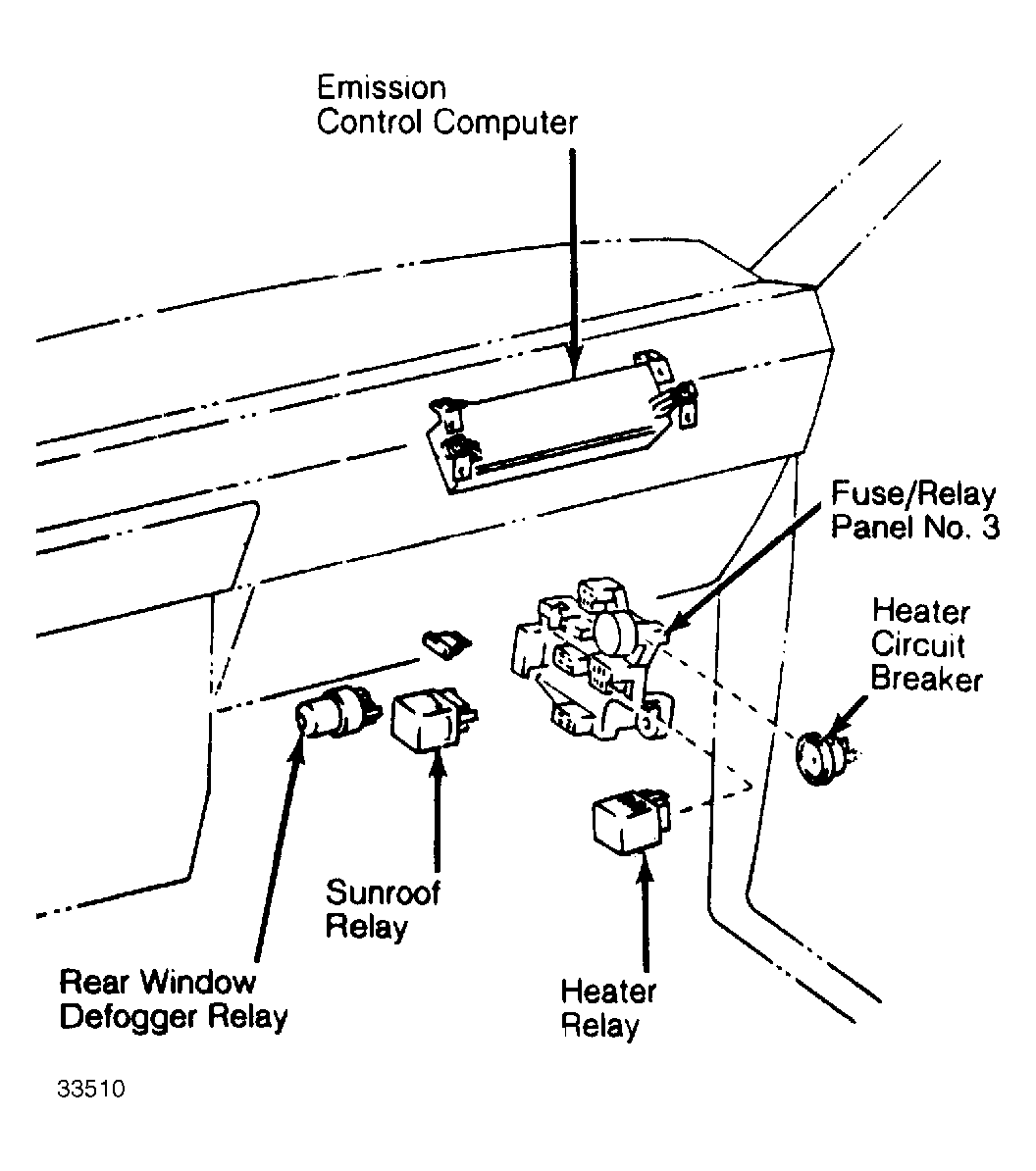

Fuse/Relay Panel No. 3 Behind right kick panel. See Figure.
Heater Circuit Breaker On fuse/relay panel No. 3. See Figure.
Main Power Circuit Breaker On fuse/relay panel No. 2. See Figure.
