Air Suction System: Operation

Air is drawn through the filter and air suction (AS) valve into exhaust manifold on California vehicles. Air is drawn through the filter and air suction (AS) valve into catalytic converter on Federal vehicles.

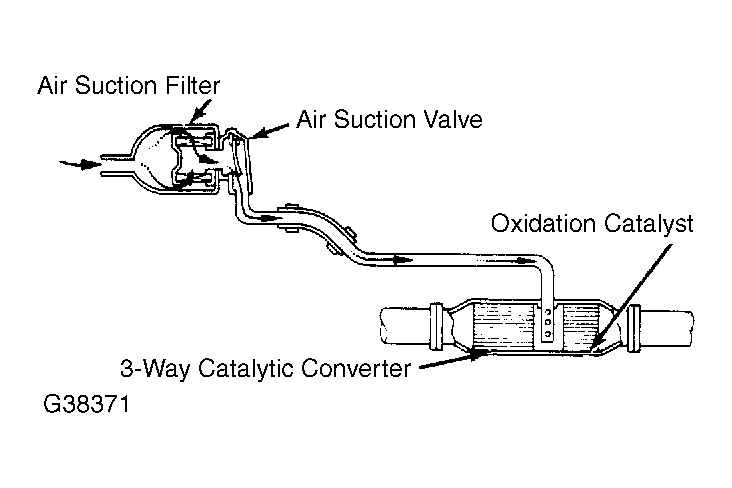

Fig 1: Air Suction System (Federal Tercel W/ Manual Transmission Shown)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
