Deceleration Fuel Cut System: Operation

Slow speed circuit in carburetor operates except during prolonged periods of deceleration at high engine speeds. Under these conditions, vacuum switch or computer turns off fuel cut solenoid valve and mixture is leaned out. This prevents overheating and afterburning in the catalytic converter.

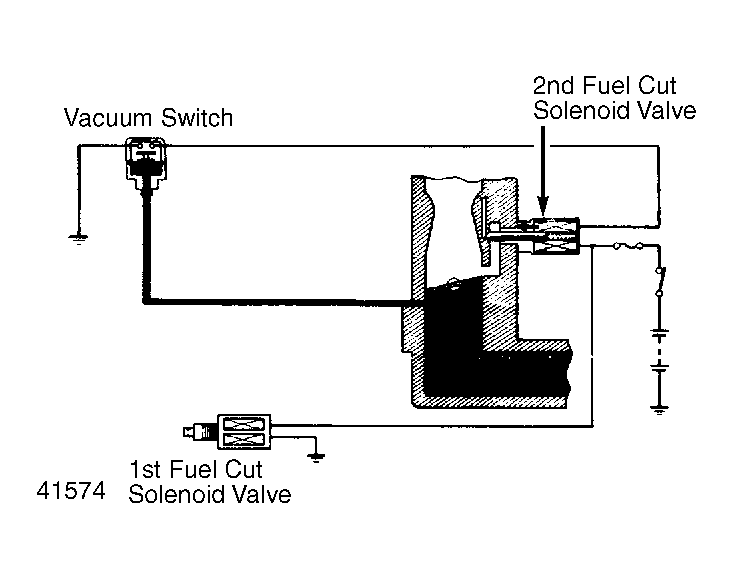

Fig 1: Deceleration Fuel Cut System (Tercel)
G41574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
