Deceleration Fuel Cut System: Tercel

Start engine and run at idle. Disconnect vacuum hose to the vacuum switch. A click should be heard/felt at the 2nd fuel cut solenoid. If so, system is working properly. If not, test switch and solenoid valve.

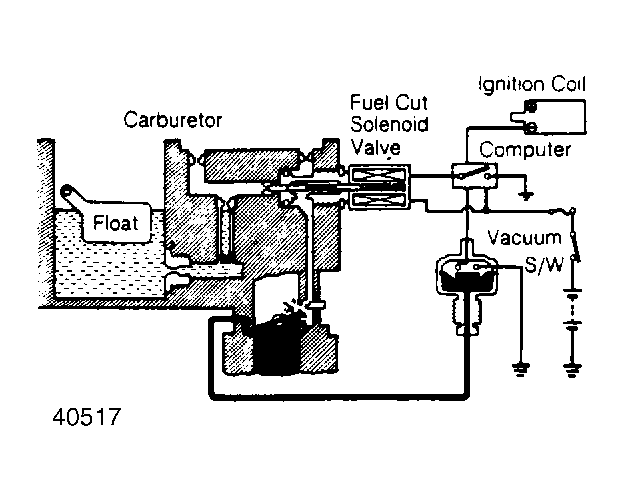

Fig 1: Deceleration Fuel Cut System (Land Cruiser)
G40517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
