Electronic Bleed Control Valve (EBCV)

  1. Using an ohmmeter, ensure there is no continuity between positive terminal of EBCV connector and EBCV body. If continuity is indicated, replace shorted EBCV.
  2. Using an ohmmeter, measure resistance between terminals of EBCV connector. Ohmmeter reading should be 11 -13 ohms at 68°F (20°C). If reading is incorrect, replace open EBCV.

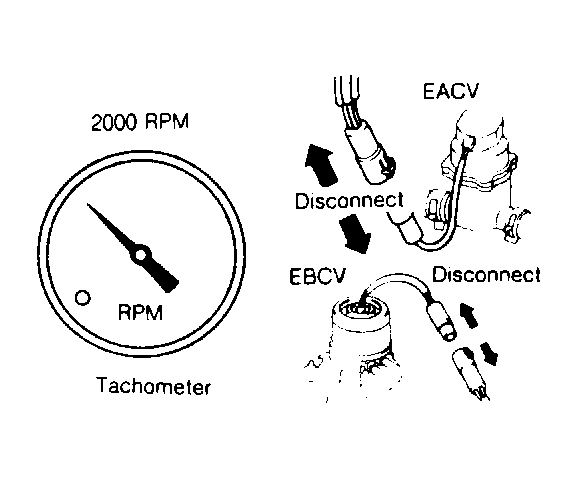

Fig 1: Testing Computer Controlled Emission System
G61928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

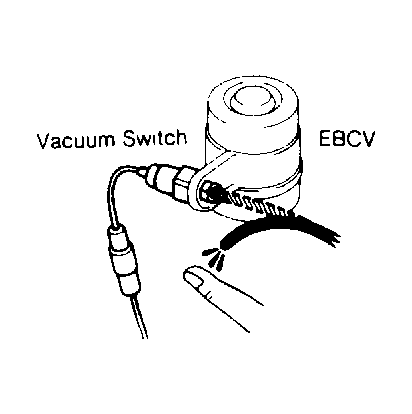

Fig 2: Testing Pickup Computer Controlled Emission System
G61927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
