Wiring Diagrams

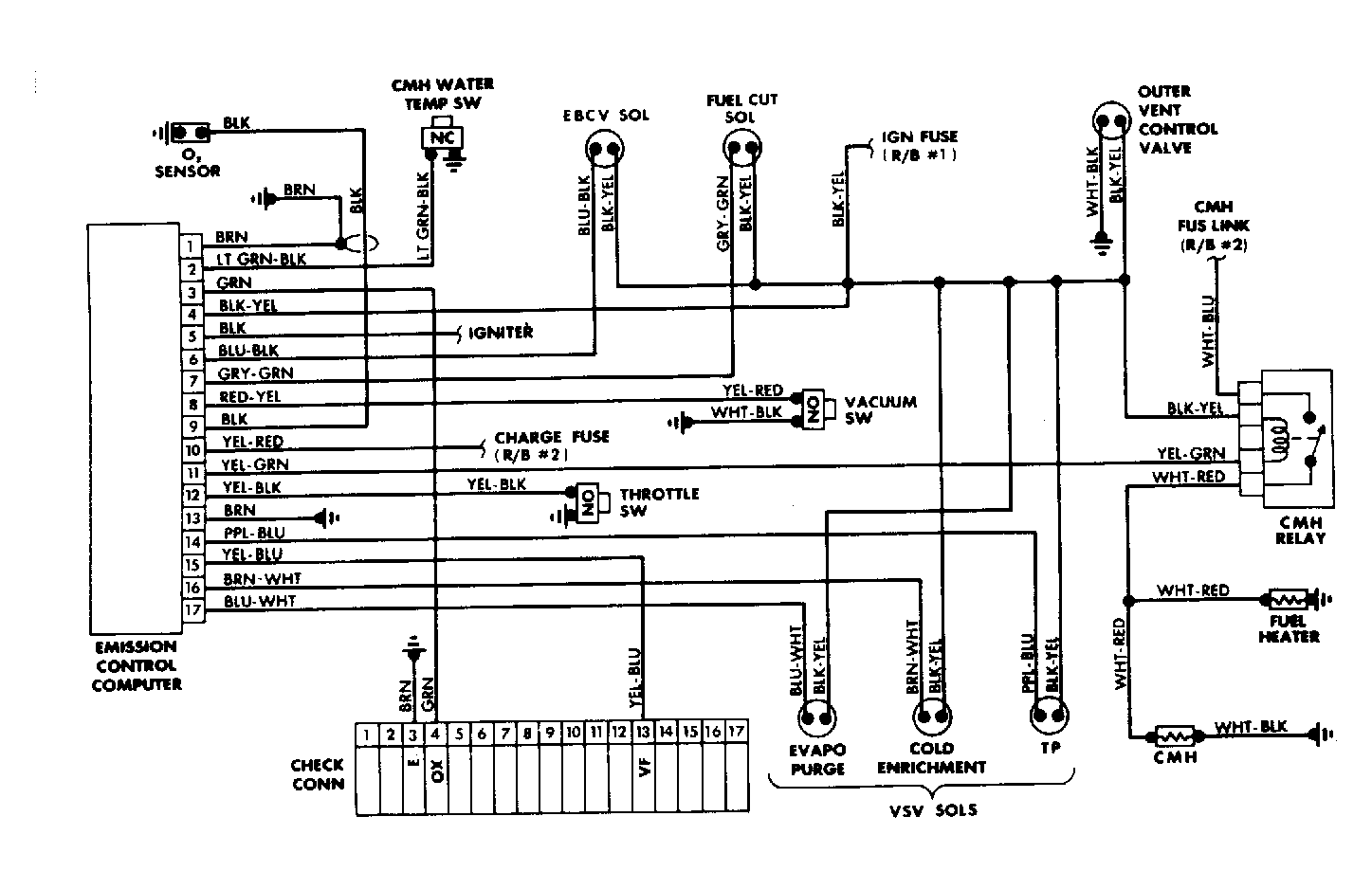

Fig 1: Computer Controlled Emission System (Sedan)
G61936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Computer Controlled Emission System Wiring Diagram (Wagon)
G61935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
