Hot Idle Compensation System: Operation

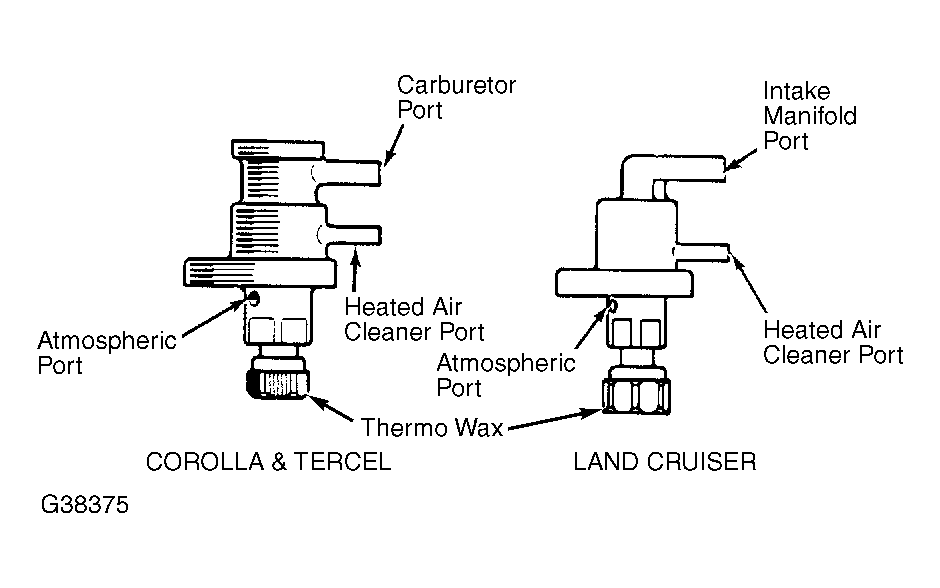

A thermo wax portion of the hot idle compensator (HIC) valve is located inside air cleaner. This thermo wax responds to temperature conditions. When it senses a high-heat condition, it opens to allow some air to flow directly from the air cleaner to the intake manifold.
