Fuel Cut System

All models are equipped with an electronically controlled fuel cut system. During sudden deceleration, the ECU adjusts fuel injection duration to prevent overloading the engine with fuel. The system also maintains smooth engine operation to prevent backfiring.

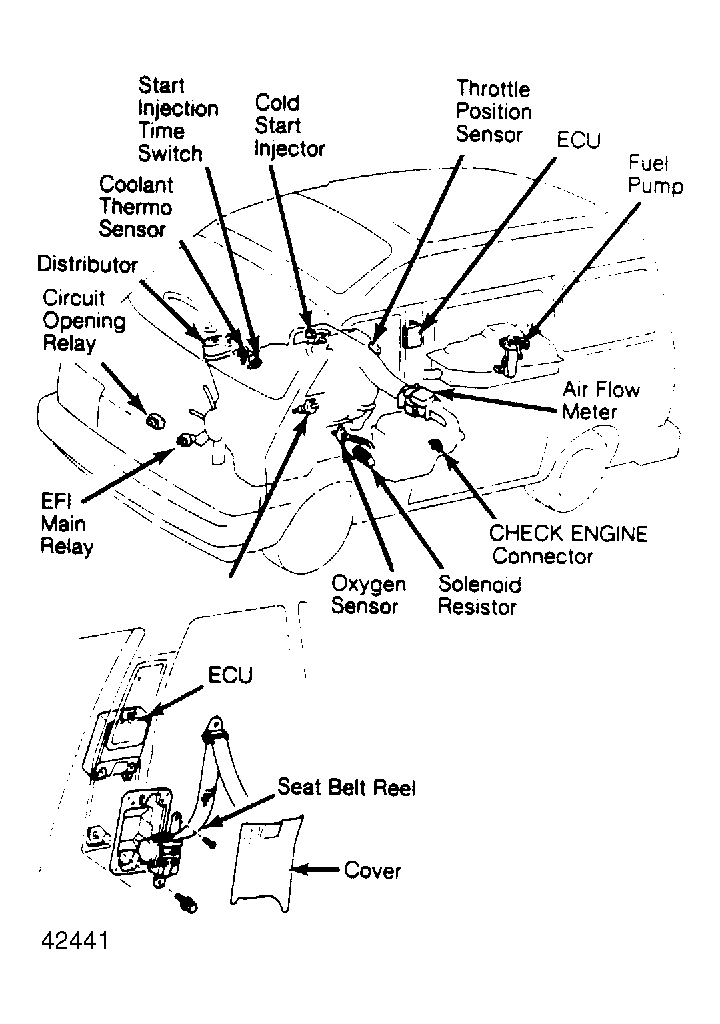

Fig 1: Van ECS Component Locations Computer is located behind left (driver's) door post.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
