"Check Engine" Lamp - Circuit Check

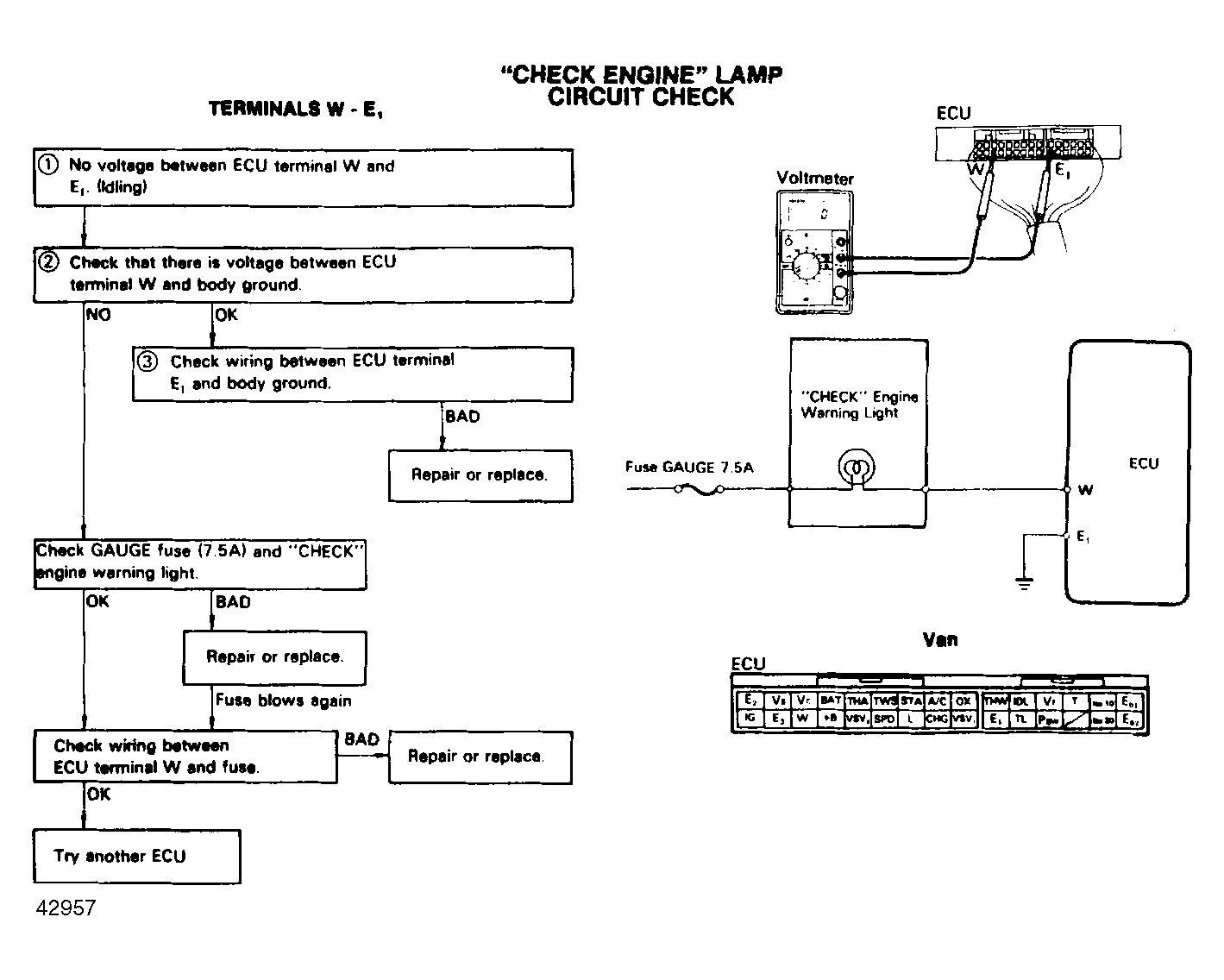

Fig 1: Terminals W - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
