EFI Circuit Check

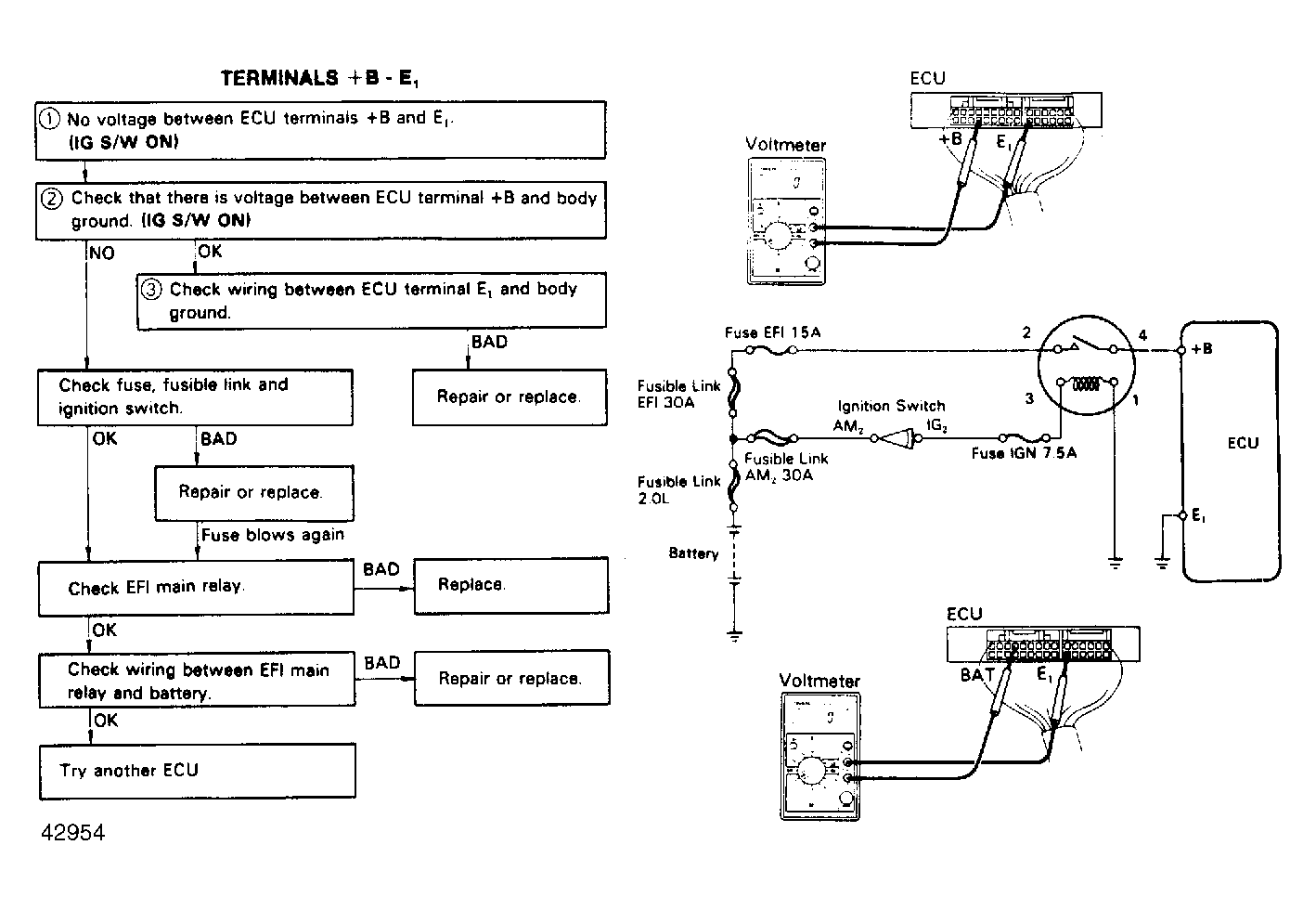

Fig 1: Terminals + B - E1
G42954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

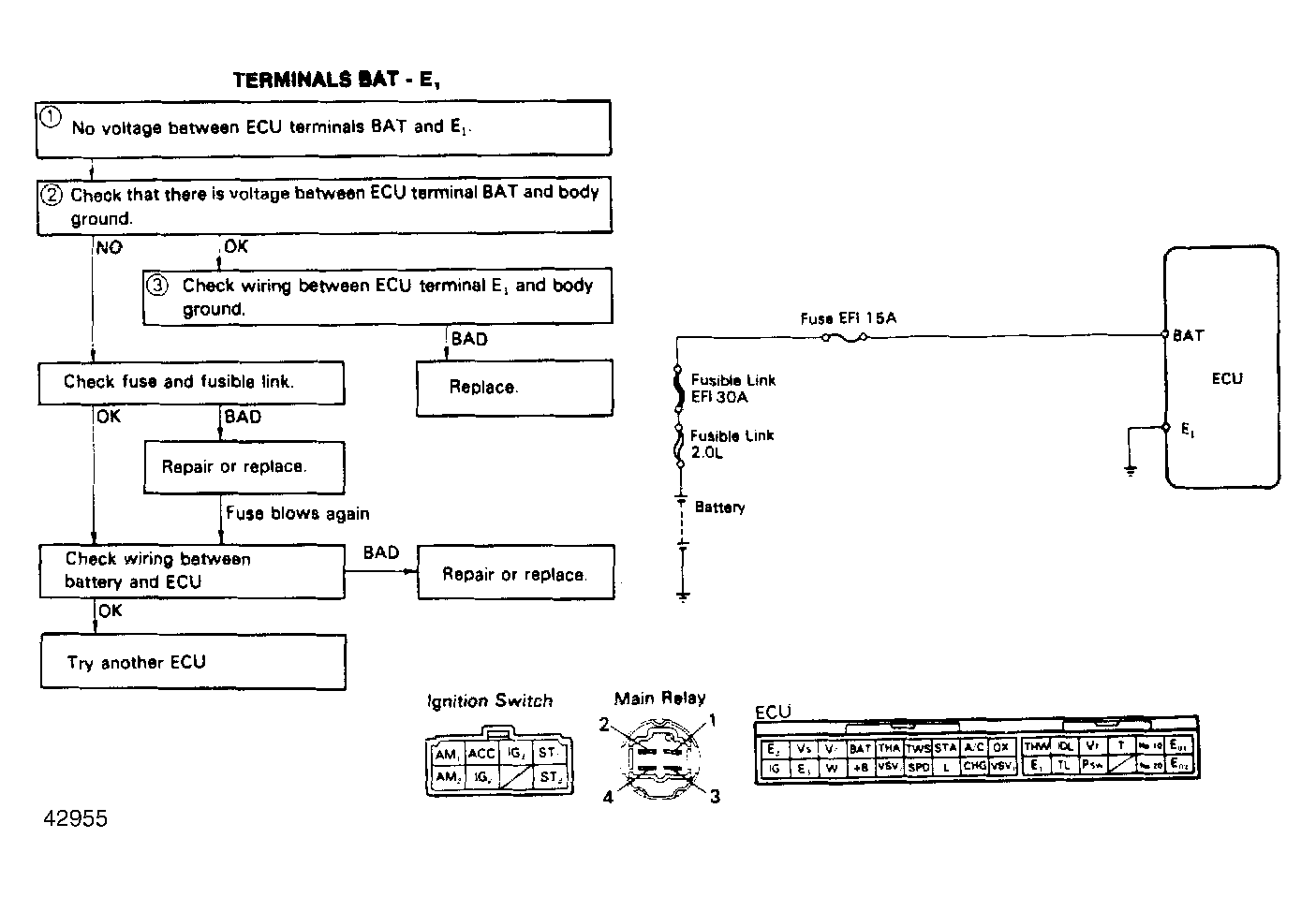

Fig 2: Terminals BAT - E1
G42955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
